Focal Car Speakers 2-Way 4" Coaxial Kit With Grills - Access 100 AC

Focal Car Speakers 2-Way 4" Coaxial Kit With Grills - Access 100 AC
Focal Car Speakers 2-Way 4" Coaxial Kit With Grills - Access 100 AC
Focal Car Speakers 2-Way 4" Coaxial Kit With Grills - Access 100 AC
Pre-Order - Contact Us
Focal Car Speakers 2-Way 4" Coaxial Kit With Grills - Access 100 AC
Focal Car Speakers 2-Way 4" Coaxial Kit With Grills - Access 100 AC
Focal Car Speakers 2-Way 4" Coaxial Kit With Grills - Access 100 AC

Focal Car Speakers 2-Way 4" Coaxial Kit With Grills - Access 100 AC

£84.99
Ex Tax: £70.83
  • Stock Availability: Pre-Order - Contact Us
  • Item Condition : New
  • Model: 100AC
  • SKU: 100AC
  • 1 Year Warranty

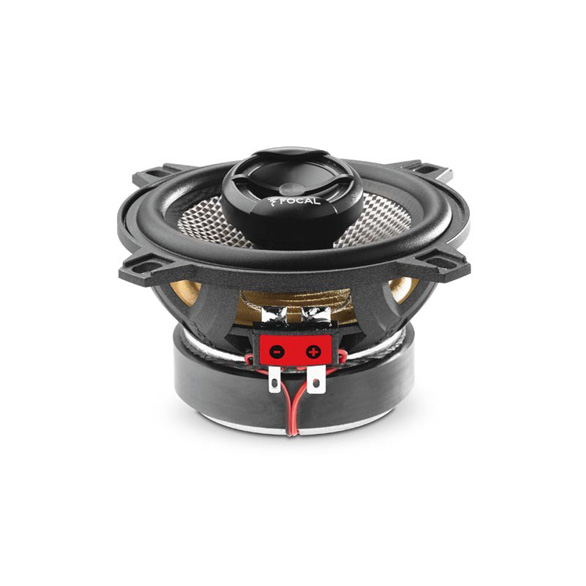

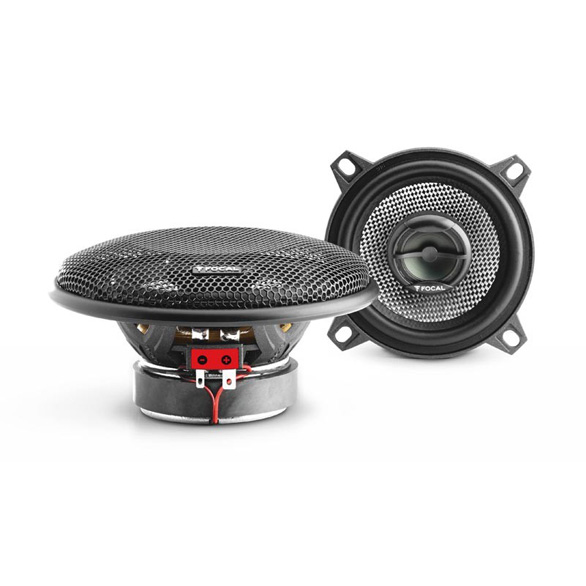

Focal 2-Way Coaxial Speaker Kit - 100 AC

Performance Access Range

The Access 100 AC car audio kit produces very good results in your car's original speaker fitting locations. This means you benefit from Focal sound in a most impressive value-for-money package.

With its compact diameter, the Access 100AC coaxial kit develops very good sound dynamics. The woofer's woven fibre glass DFS® cone gives you dynamic bass and a precise mid-range while being unaffected by damp. The aluminum inverted dome TN43 tweeter provides excellent spatial separation and a very wide sound stage.

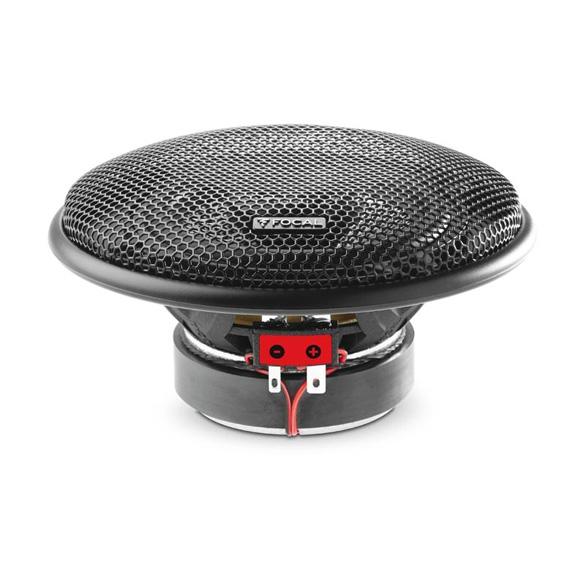

Supplied grilles.

Key Points

  • Cone DFS® (Dual fiberglass Structure) (climatic and power) high resistance
  • Compact basket

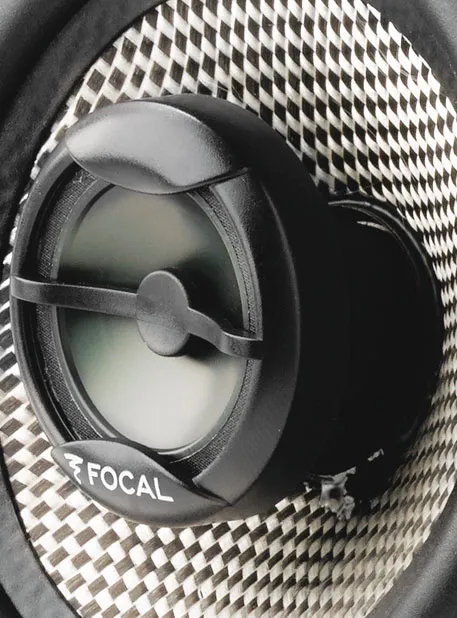

  • Rotativ tweeter

POWER ABOVE ALL

Watts and Robustness


With these speakers and their high rated power, you can enjoy quality sound in your vehicle. The Kapton-mounted dual-layer 30mm coil guarantees high power handling and distortion-free sound reproduction.



Focal-Speaker_Kits-Car-Audio-Performance_Access_Range



Focal-Speaker_Kits-Car-Audio-Performance_Access_Range

POWER HANDLING

DFS cone


DFS® technology features robust and reliable cones. Composed with two 90° woven glass fibres and insulated with polyurethane, it resists to extreme acoustic environments and harsh weather conditions.





MODERN APPEARANCE

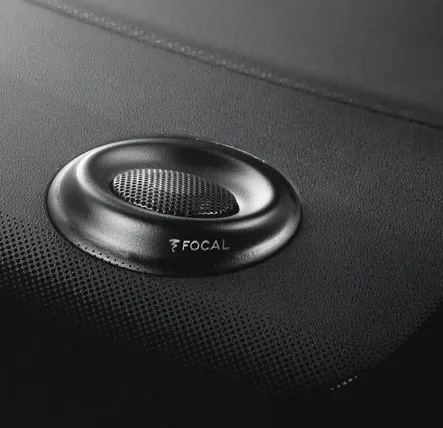

From a visual standpoint, this new product line is resolutely more modern: doped ABS basket structure, integral terminal block, new tweeter design, contoured grilles, etc.

Focal-Speaker_Kits-Car-Audio-Performance_Access_Range



Technical Characteristics

  • Woofer: 4" (100mm)
  • Voice-coil diameter: 1" (25mm)
  • Voice-coil height: 07/16" (11mm)
  • Magnet: 213/16" (72mm)
  • Tweeter: Aluminum inverted dome
  • Crossover: (4,7Khz) 6dB/oct
  • Max. power: 80 Watts
  • Nom. power: 40 Watts RMS
  • Sensitivity (2.83V/1m): 87.2dB
  • Frequency response: 70Hz – 20kHz
  • Accessories: Supplied grilles





Focal Performance Access Coaxial Speaker Kit 100 AC



Specifications - Woofers 4" (100mm)

  • Nominal power 40W
  • Maximum power 80W
  • Sensitivity (2,83V/1m) 87.2dB
  • Cone Glass fiber
  • Surround Butyl
  • Nom. impedance 4 Ohms
  • DC resistance 3.4 Ohms
  • VC diameter 25mm 1"
  • VC height 10mm 03/8"
  • Former Kapton
  • Layers 2
  • Wire Copper
  • Inductance -
  • Xmax ± 2.5mm 01/8"
  • Magnet d x h 72mm x 15mm 213/16 x 09/16 "
  • Magnet weight 160g 0.32 lbs
  • Flux density 0.9T
  • Gap height 6mm 01/4"
  • Net weight 0.6kg 1.2 lbs

Parameters - Woofers 4" (100mm)

  • Fs 110.12Hz
  • Vas 1.07 liters
  • Qts 0.824
  • Qes 0.96
  • Qms 5.82
  • Re 3.4 Ohms
  • Sd 52.81cm2
  • Cas 7.6E-09 m5/N
  • Mas 275.02kg/m4
  • Ras 32695,15 Ohms.ac
  • Cms 272µm/N
  • Mms 7.7g
  • Rms 0.912kg/s
  • Ces 406.88mF
  • Les 5.13mH
  • Res 20.67 Ohms
  • BI 4.34N/A
  • SPL 83.5 dB/W/m



Specifications - TN43 Tweeter

  • Nominal power 15W
  • Maximum power 100W
  • Sensitivity (2,83V/1m) 94dB
  • Cone Aluminium
  • Surround -
  • Nom. impedance 4 Ohms
  • DC resistance 3.7 Ohms
  • VC diameter 20mm 013/16"
  • VC height -
  • Former Kapton
  • Layers 2
  • Wire Copper
  • Inductance -
  • Xmax -
  • Magnet d x h -
  • Magnet weight -
  • Flux density 1.35T
  • Gap height 2.5mm 01/8"
  • Net weight 60g 0.12 lbs





Focal 2-Way Coaxial Speaker Kit - 100 AS

Performance Access Range

If you are unsure about the suitability of this product please contact us via the ask a question link at the top of this page or telephone us and we will gladly assist you.



Installation

Factory fitted In-car Infotainment systems and their wiring can be complex, so we always recommend that you have your installation carried out by a qualified installer. If you wish, Car Communications can arrange for your Kit to be installed at an address of your choice anywhere in the UK. Please select from addons options above before adding the purchase to your cart. During the checkout process you will be asked for your preferred date(s) and time for the installation.

Plug & Play

For added peace of mind, our products can be professionally installed at your home or workplace anywhere in the UK by our qualified and accredited network of engineers.
