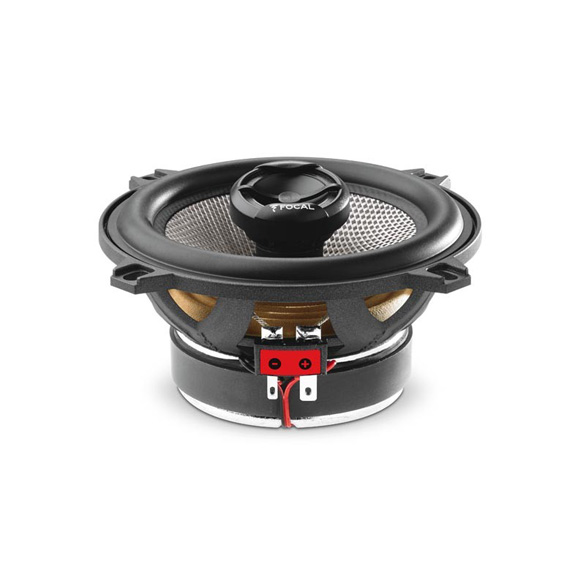

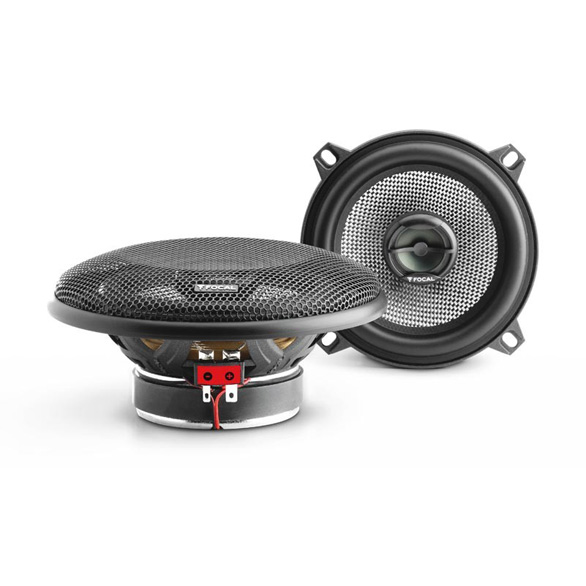

Focal Car Speakers 2-Way 5" Coaxial Kit With Grills - Access 130 AC
- Stock Availability: Pre-Order - Contact Us
- Item Condition : New
- Model: 130AC
- SKU: 130AC
- 1 Year Warranty
Focal 2-Way 5" Coaxial Speaker Kit - 130 AC
Performance Access Range
The coaxial Access 130 AC kit offers real dynamism for your sounds. With their 5" / 130mm diameter, these speakers develop a rated power of 50 W and can be fitted into your car both front and back.
The Access 130AC car audio kit marks access to the performance world: remarkable power handling, deep bass and extremely dynamic sound. All this is possible thanks to numerous Focal technical innovations and a new choice of specific materials.

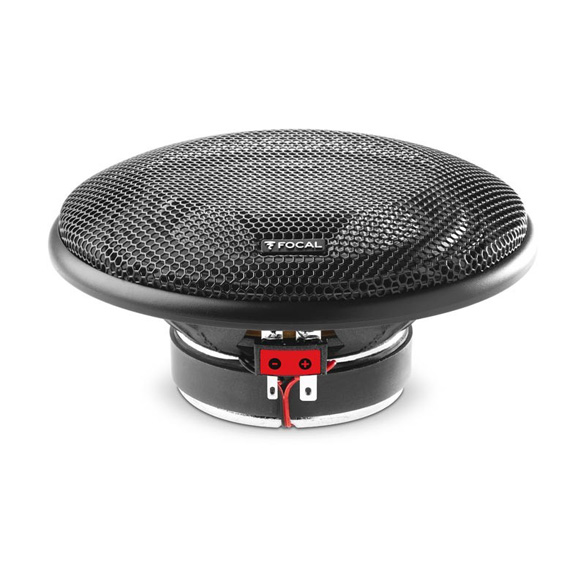

Supplied grilles.
Key Points
- Cone DFS® (Dual fiberglass Structure) (climatic and power) high resistance
- Extremely dynamic sound
- Rotativ tweeter
POWER ABOVE ALL
Watts and Robustness
With these speakers and their high rated power, you can enjoy quality sound in your vehicle. The Kapton-mounted dual-layer 30mm coil guarantees high power handling and distortion-free sound reproduction.
POWER HANDLING
DFS cone
DFS® technology features robust and reliable cones. Composed with two 90° woven glass fibres and insulated with polyurethane, it resists to extreme acoustic environments and harsh weather conditions.
MODERN APPEARANCE
From a visual standpoint, this new product line is resolutely more modern: doped ABS basket structure, integral terminal block, new tweeter design, contoured grilles, etc.
Technical Characteristics
- Woofer: 5" (130mm)
- Voice-coil diameter: 1" (25mm)
- Voice-coil height: 07/16" (11mm)
- Magnet: 31/3" (85mm)
- Tweeter: Aluminum inverted dome
- Crossover: (4,7Khz) 6dB/oct
- Max. power: 100 Watts
- Nom. power: 50 Watts RMS
- Sensitivity (2.83V/1m): 89.3dB
- Frequency response: 70Hz – 20kHz
- Accessories: Supplied grilles
Specifications - Woofers 5" (130mm)
- Nominal power 50W
- Maximum power 100W
- Sensitivity (2,83V/1m) 89.3dB
- Cone Glass fiber
- Surround Butyl
- Nom. impedance 4 Ohms
- DC resistance 3.6 Ohms
- VC diameter 25mm 1"
- VC height 11mm 07/16"
- Former Kapton
- Layers 2
- Wire Copper
- Inductance -
- Xmax ± 2.5mm 01/8"
- Magnet d x h 85mm x 32mm 31/3 x 11/4 "
- Magnet weight 380g 0.76 lbs
- Flux density 1T
- Gap height 5mm 03/16"
- Net weight 0.85kg 1.70 lbs
Parameters - Woofers 5" (130mm)
- Fs 96.07Hz
- Vas 2.85 liters
- Qts 0.799
- Qes 0.96
- Qms 4.75
- Re 3.6 Ohms
- Sd 86.59cm2
- Cas 2,03E-08 m5/N
- Mas 135.11kg/m4
- Ras 17169,06 Ohms.ac
- Cms 271µm/N
- Mms 10.13g
- Rms 1.287kg/s
- Ces 438.12mF
- Les 6.26mH
- Res 17.96 Ohms
- BI 4.81N/A
- SPL 86.05 dB/W/m
Specifications - TN43 Tweeter
- Nominal power 15W
- Maximum power 100W
- Sensitivity (2,83V/1m) 94dB
- Cone Aluminium
- Surround -
- Nom. impedance 4 Ohms
- DC resistance 3.7 Ohms
- VC diameter 20mm 013/16"
- VC height -
- Former Kapton
- Layers 2
- Wire Copper
- Inductance -
- Xmax -
- Magnet d x h -
- Magnet weight -
- Flux density 1.35T
- Gap height 2.5mm 01/8"
- Net weight 60g 0.12 lbs
