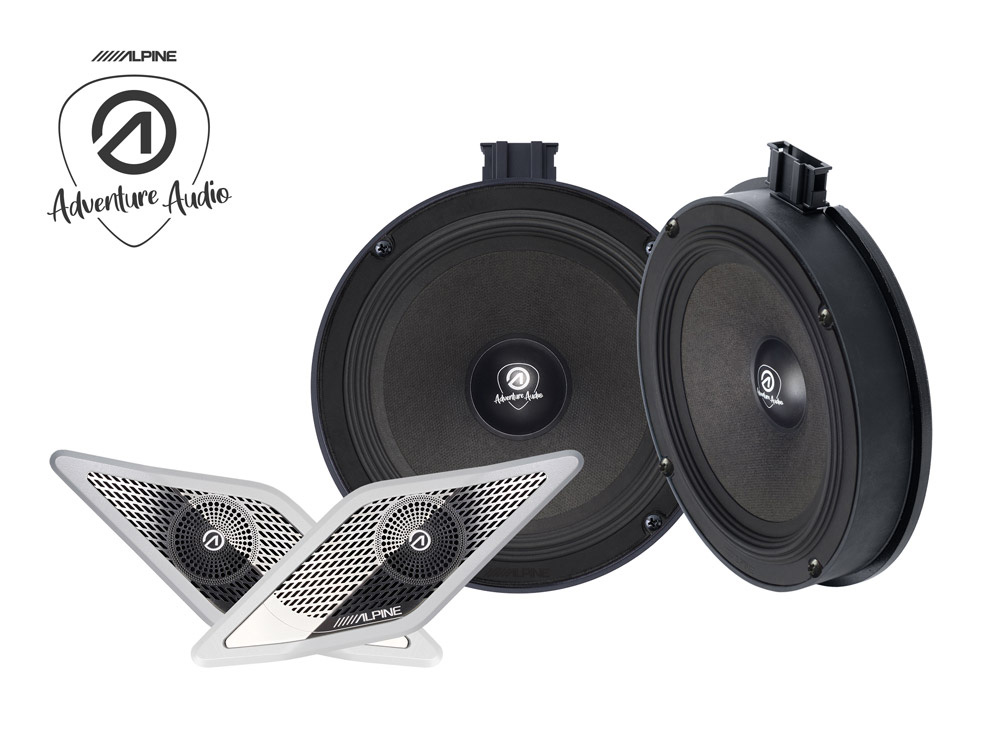

Alpine SPC-106CRA2-2 Front Speaker System for Volkswagen Crafter 2 & MAN TGE
Upgrade your Volkswagen Crafter 2 (or MAN TGE) with the new SPC-106CRA2-2 high-end component speaker system.
The second generation of the SPC-106CRA2-2 has been upgraded with several technical improvements to deliver an even more impressive sound experience. The new High-Amplitude Multi-Roll (H.A.M.R.) surround allows for greater cone excursion, resulting in more precise bass reproduction. Additionally, the vented pole structure enhances motor cooling by efficiently dissipating warm air. This enables the speaker to handle higher power levels for extended periods without sound degradation.
The gold-plated blade terminals ensure optimal signal transmission and corrosion resistance, while the die-cast aluminium basket provides high rigidity and allows for larger magnets without warping. This enhancement enabled us to equip the speakers with more powerful magnets while maintaining the same mounting depth. As a result, the SPC-106CRA2-2 delivers deeper bass, higher power handling, and increased component longevity.
This Alpine Adventure Audio system for the Volkswagen Crafter 2 perfectly unites function with form: enjoy audiophile grade sound quality, while the beautiful photo-etched stainless-steel tweeter grills simply look stunning in your A-pillars.
The High-end tweeters let you hear every note with stunning clarity and fast dynamics, while the 16,5 cm mid-range door speakers produce a wide frequency range that uncovers the rich details of every audio track – delivering your favourite songs with powerful mid-bass and amazing texture and accuracy.
Due to the original VW connectors and usage of the original wiring harness, installation is fast and easy. The system is also compatible with the front windscreen roller blinds in the VW Crafter 2 Grand California, etc.
The Alpine Adventure Sound Experience
The new Alpine Adventure Audio sound system for the Volkswagen Crafter 2 has arrived - with the listening and mobility styles of motorhome and camping van enthusiasts in mind. Specially engineered for the challenging, and often audio-unfriendly environments of these camping and utility vehicles, our systems are guaranteed to provide unmatched sonic excellence on those long drives to your destination. They are not only a joy to listen to, but also a breeze to install, and their distinctive design will spruce up any cockpit without spoiling the original cabin cosmetics. Make your road-trips as exhilarating as your activities upon arrival with an Alpine Adventure Audio system!
Your VW Crafter 2 never sounded that good
Bring high-fidelity audio to your Volkswagen Crafter 2 at an affordable cost with the Alpine SPC-106CRA2-2 Adventure Audio speaker system. From deep, rich bass to accurate mids and crisp, clean highs – you will hear every note with a new sense of clarity. The speaker system handles up to 180 Watts peak power and provides an audiophile listening experience.
Made for Volkswagen Crafter 2 & MAN TGE
Whether you are a carpenter, a camping fan or part of a large family, this sound system is for you and your Crafter 2. The SPC-106CRA2-2 Adventure Audio speaker system is compatible with all Volkswagen Crafter 2 configurations (Grand California, panel van and minibus, as well as MAN TGE) and any kind of original or aftermarket radio systems. It is also compatible with the Crafter 2 Grand California front windscreen roller blinds.

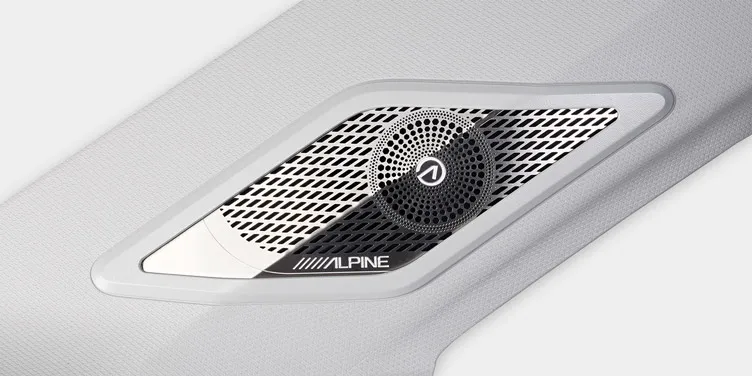

Designed to be seen and heard

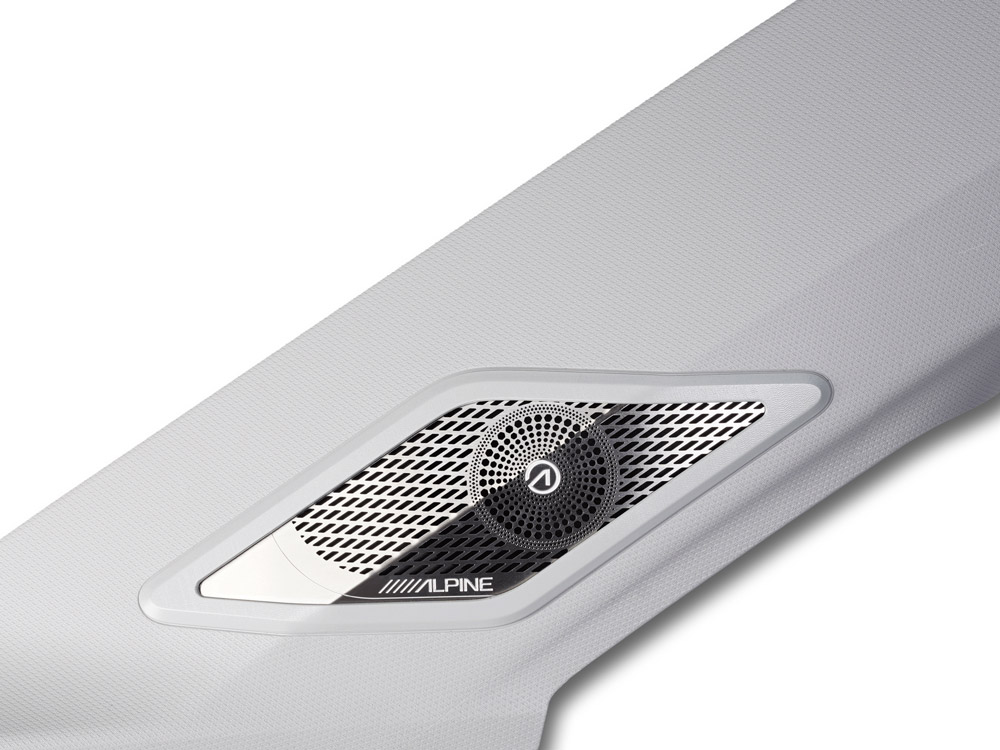

The first thing you will notice about the SPC-106CRA2-2 are the beautifully designed stainless steel tweeter grills in the A-pillars, that replace the original plastic VW grills. We use a cutting-edge chemical photo etching process for highest aesthetics and acoustics performance, to make them look stunning from every angle – yet acoustically optimised and virtually transparent to the sound waves passing through them.

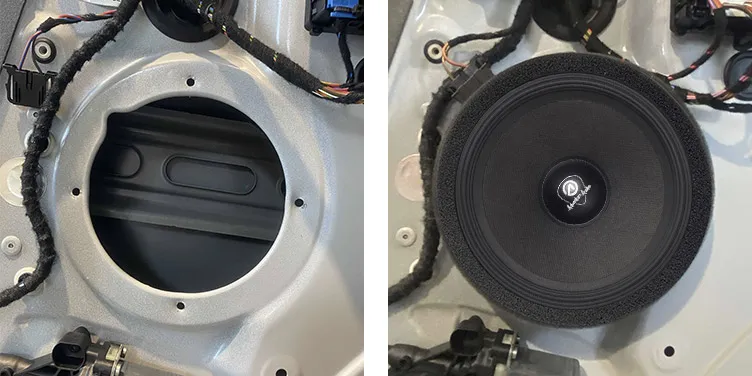

Fast & easy installation
The Alpine speaker system components use only original installation locations for easy installation – and to maintain the option to re-install the factory system (if you drive a leasing vehicle that needs to be returned at some point in time). All connectors are plug-and-play compatible with the original VW wiring harness and connectors. The overall installation can be accomplished with regular household tools in a short time. A step-by-step installation manual is included.

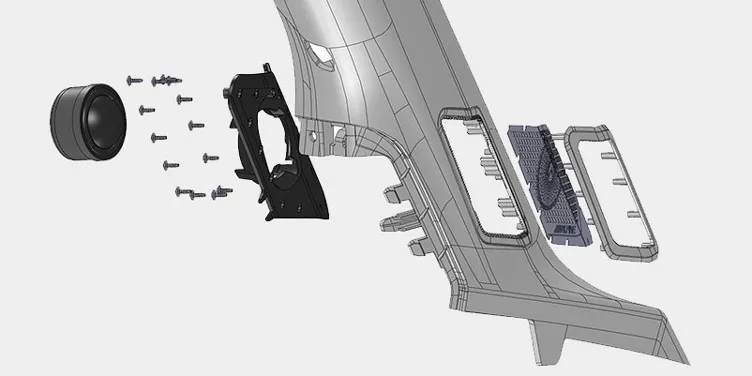

Enjoy crisp, clean highs

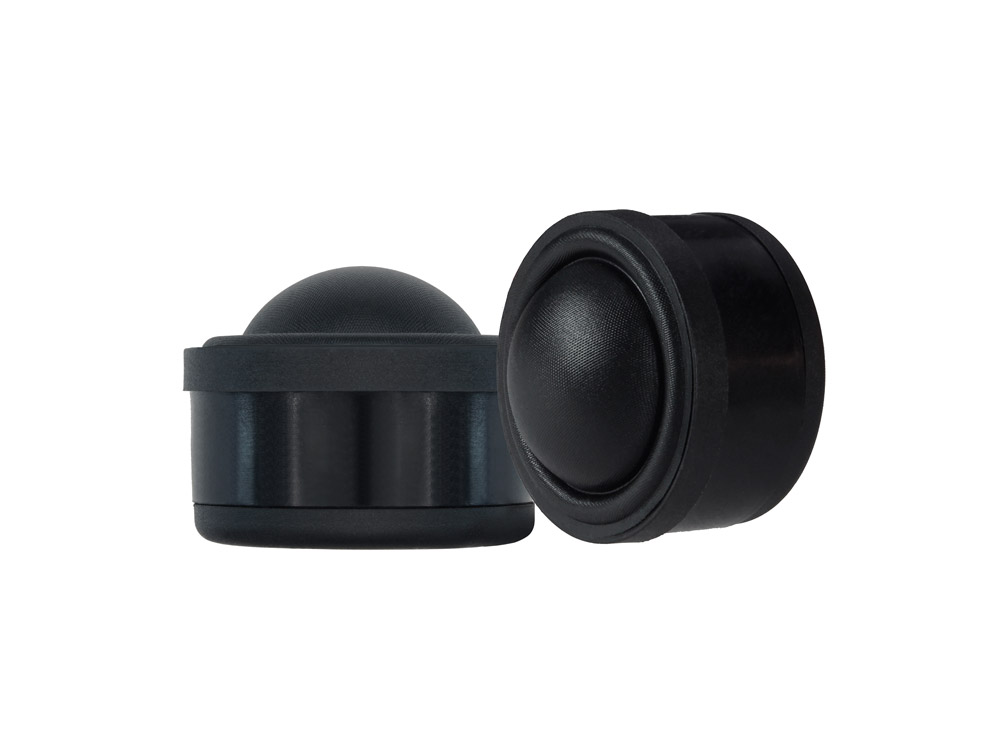

28 mm audiophile-grade silk dome tweeters with back-chambers produce crisp, clean highs that let you hear every note with stunning clarity and fast dynamics. Our sound engineers also created audio optimised tweeter installation brackets for the A-pillars, allowing the tweeters to point right at the listeners in the cabin. This strongly improves the sound stage and clarity for an amazing listening experience.

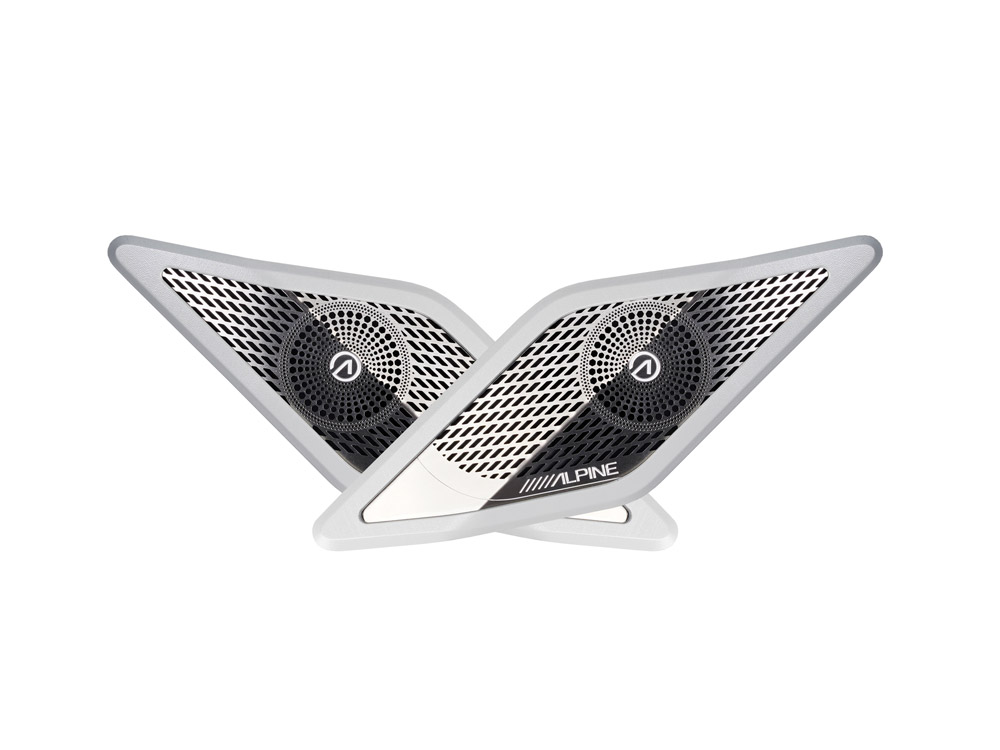

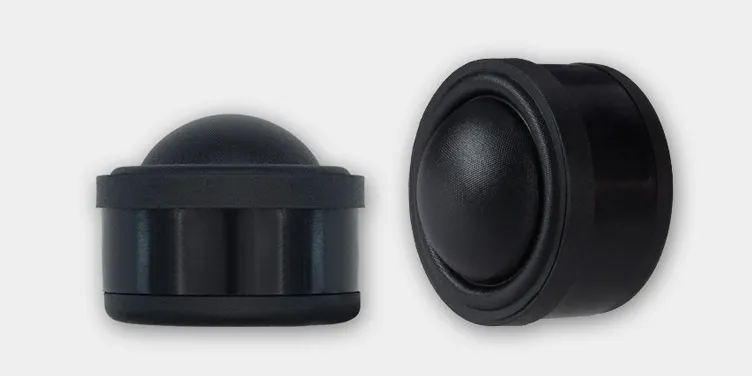

High-end silk dome tweeters
Take your listening experience to the next level with the Alpine Adventure Audio systems for the VW Crafter 2. The high-end 28 mm tweeters feature extended high frequency response well beyond 25 kHz to faithfully reproduce the sound stage and the harmonic details of the music.

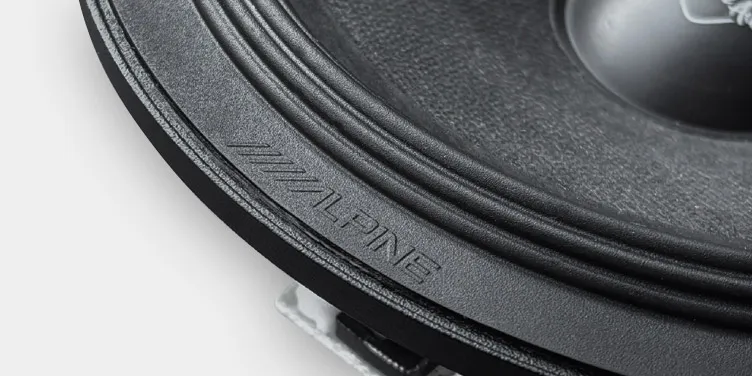

HAMR Surround
Alpine’s HAMR Surround (High-Amplitude Multi-Roll) allows for a maximum cone excursion, while maintaining excellent control. This results in strong bass at high volumes without distortion.

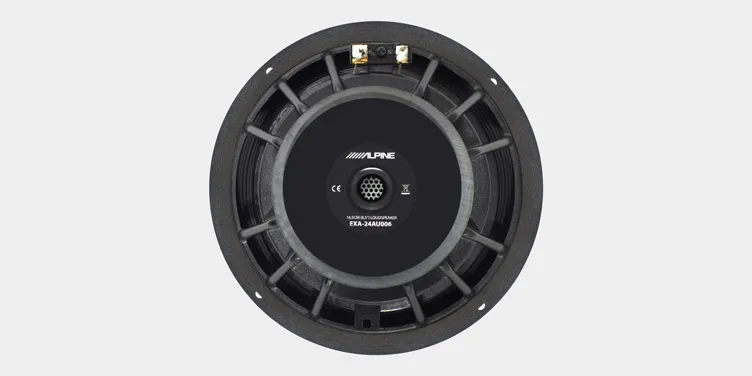

Die-Cast Aluminium Basket and Large Magnets
The SPC-106CRA2-2 features high-quality aluminium baskets, providing high stiffness and enabling them to carry heavier magnets without warping. This allowed our engineers to fit larger magnets than in previous generations while maintaining the same mounting depth. Thanks to the pole core vent the motor benefits from improved cooling. This vent allows warm air to escape efficiently, preventing overheating. The result? The speaker can handle higher power levels for extended periods without losing sound quality. Additionally, the reduced thermal stress increases the lifespan of the components.

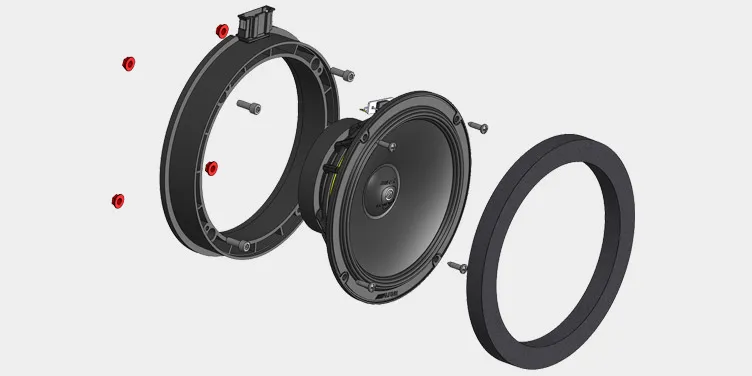

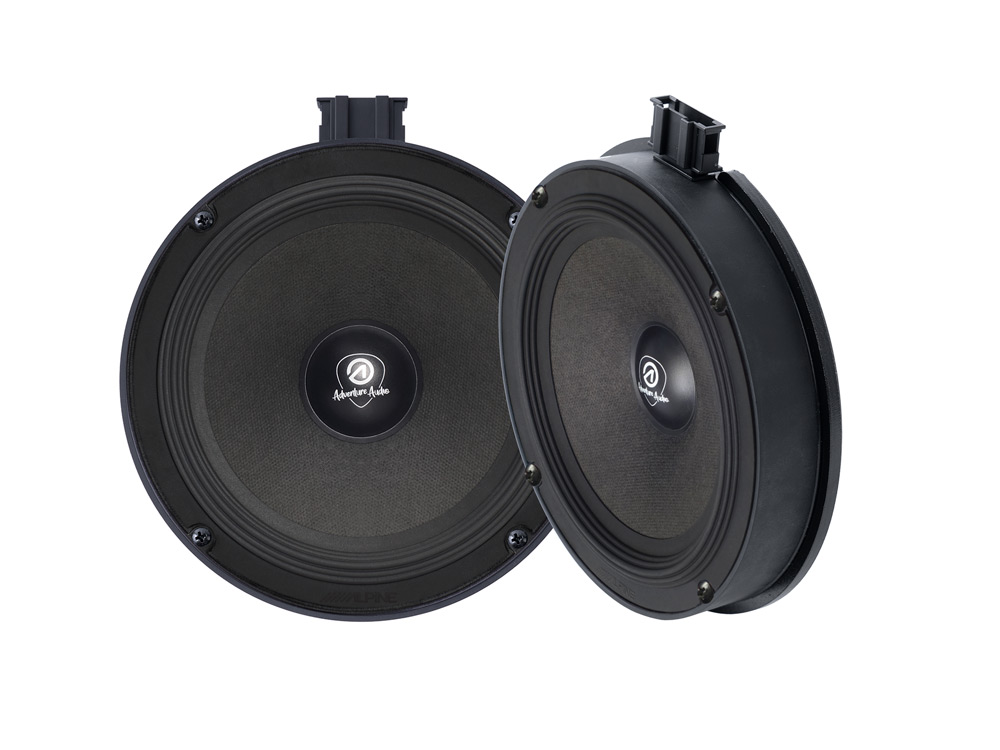

Dynamic mid-bass experience
The Alpine-designed dynamic mid-range speakers produce a wide frequency range that uncovers the rich details of every audio track – delivering your favourite songs with powerful mid-bass and amazing texture and accuracy. The included steel base rings ensure a rock-solid, vibration free connection to the doorframe and perfectly seal the door interior from moisture due to the attached silicone seals.

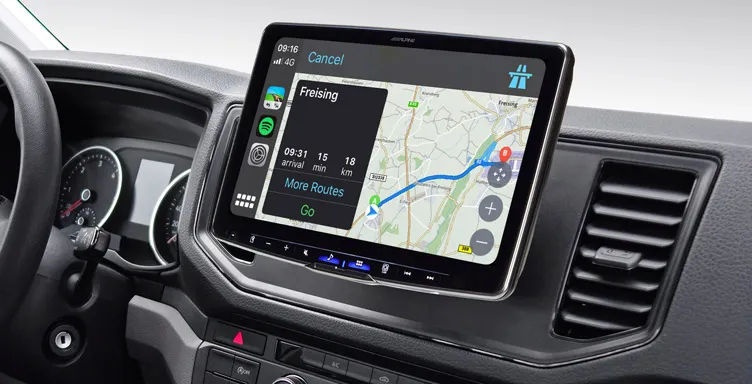

Upgrade your radio to an Alpine Halo System
Alpine offers several installation and wiring kits to easily upgrade your Volkswagen Crafter 2 with an Alpine Halo11 or Alpine Halo9. These amazing media centres offer excellent touch-screen displays and bring wireless Apple CarPlay, wired Android Auto, 2 USB ports and many other exciting features to your van. Most important: they feature high-end sound components and professional sound tuning features to get the very best out of your Adventure Audio system.
FEATURES
Mid-Range Woofer
- 166 mm mid-range door speaker
- Includes steel plates for solid door installation and adaptation to original door cut-out
- High quality steel basket and rubber surround
- 25 mm voice coil
- Large Ferrite magnet
- Vented Pole Structure
- Gold plated blade terminals
- Includes foam seal ring
- For easy installation with original VW cable harness (original connectors)
Tweeter
- 28 mm audiophile-grade back-chambered silk-dome tweeters
- Neodymium magnet
- Stainless steel tweeter grills (photo etched)
- Acoustically optimised tweeter installation brackets
- Integrate speaker network with foil condenser
SPECIFICATIONS
- Frequency response: 45Hz – 25kHz
- Impedance: 4 Ohms
- Sensitivity: 89.2dB 1W/W
Power Handling
- Peak Power: 150 Watts
- RMS Power: 100 Watts

Product Compatibility Chart
Make | Model | Variations | Years | Radio | Notes |
MAN | TGE |
1st Gen (2016 > ) | 2017 onward | ||
Volkswagen | Crafter |
2nd Gen. SY/SZ (2017 > ) | 2017 onward | Panel Van, Minibus, Grand California |
If you are unsure of the compatibility, please contact us with the vehicle VIN number and we will verify suitability.
Refer to the included fitting instructions.
If you are unsure at anytime, please contact us via the Ask a question link at the top of this page, The Product Related Question tab or telephone us and we will gladly assist you.
For added peace of mind, our products can be professionally installed at your home or workplace anywhere in the UK by our qualified and accredited network of engineers.
Please contact us for a competitive no obligation quote
Car Speakers | |
Component Speakers | 28mm |
Speaker Kits | Car Specific Speaker Kit |
Subwoofer | 166mm mid range door speaker |
