Audi Reversing Boot Handle Camera - Audi A3, A8, Q7, RS5

Audi Reversing Boot Handle Camera - Audi A3, A8, Q7, RS5
Audi Reversing Boot Handle Camera - Audi A3, A8, Q7, RS5
Audi Reversing Boot Handle Camera - Audi A3, A8, Q7, RS5
Audi Reversing Boot Handle Camera - Audi A3, A8, Q7, RS5
Audi Reversing Boot Handle Camera - Audi A3, A8, Q7, RS5
Audi Reversing Boot Handle Camera - Audi A3, A8, Q7, RS5

Audi Reversing Boot Handle Camera - Audi A3, A8, Q7, RS5

£99.00
Ex Tax: £82.50
  • Stock Availability: In Stock
  • Item Condition : New
  • Model: MM0706
  • SKU: MM0706
  • 1 Year Warranty

Available Options

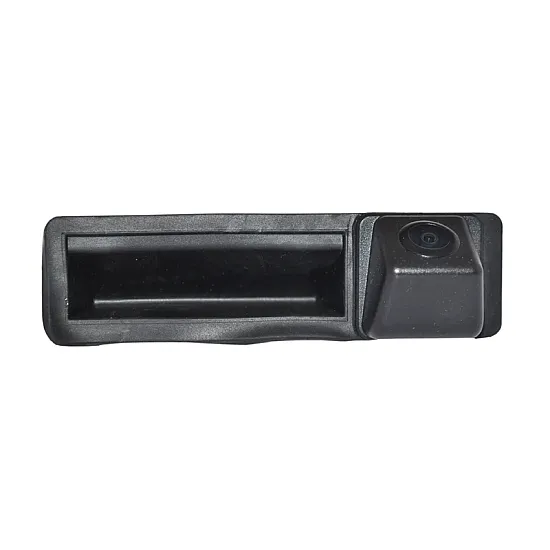

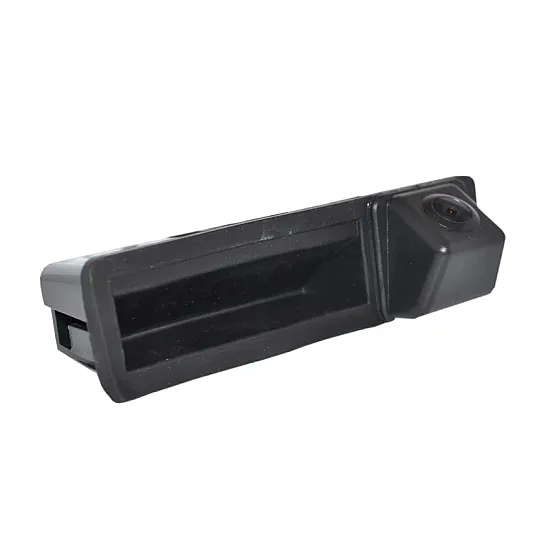

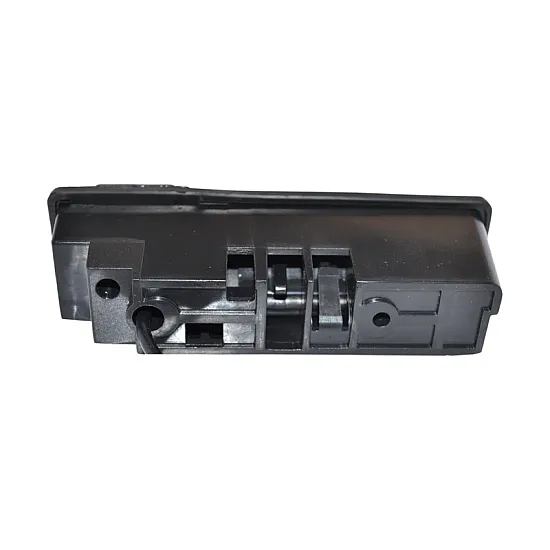

Audi Boot Handle Camera

Colour camera for Audi A3, A8, Q7 and RS5

Colour Boot handle camera compatible with Audi A3 (2003-2012), Audi A8 (2005+), Audi Q7 (2005-2015) and Audi RS5 (2010+) . This camera replaces the existing boot handle.

This camera is IP68 rated and and has a viewing angle of 105°. The camera is NTSC compatible

Images are for illustration. The camera shows static picture lines. These are guides to help you judge the distance to the object and ideal for parking.

Specifications

  • Image Lens    SONY CCD
  • Format    NTSC
  • Gridlines    Optional
  • TV Lines    600
  • Waterproof Rating    IP68
  • Viewing Angle    105°
  • Fitment Location    Boot Handle
  • Dimensions    110mm x 30mm

The following is provided in the kit:

Displaying the Reverse Camera Image:

You can either connect the camera to the vehicles own radio through an optional interface module which will display the rear view image on the radio screen. The interface will be specific to your car model/radio and can be purchased as an optional extra. You may alternatively choose our universal mirror monitor. The mirror monitor option is recommended if an interface module is not supported on your vehicle. The mirror monitor is a budget option and can be DIY fitted, whereas the oem interface will usually need to be fitted by a car technician.

Product Compatibility Chart

MakeModelVariationsYearsRadioNotes
AudiA3 8P (2003 - 2005)
2003 - 2012 Please see notes below
AudiA3 8P (2005 - 2008)
2003 - 2012 Please see notes below
AudiA3 8P (2008 - 2013)
2003 - 2012 Please see notes below
AudiA3 Sportback 8P (2004 - 2008)
2003 - 2012 Please see notes below
AudiA3 Sportback 8P (2008 - 2012)
2003 - 2012 Please see notes below
AudiA8 D3/4E FL (2005 - 2007)
2005 onward Please see notes below
AudiA8 D3/4E FL2 (2007 - 2010)
2005 onward Please see notes below
AudiA8 D4/4H (2010 - 2013)
2005 onward Please see notes below
AudiA8 D4/4H FL (2014 - 2017)
2005 onward Please see notes below
AudiA8 D5/4N (2018 > )
2005 onward Please see notes below
AudiQ7 4L (2005 - 2009)
2005 - 2015 Please see notes below
AudiQ7 4L (2009 - 2015)
2005 - 2015 Please see notes below
AudiRS5 Cabriolet 8T/8F (2012 - 2016)
2012 onward Please see notes below
AudiRS5 Coupe 8T (2010 - 2011)
2010 onward Please see notes below
AudiRS5 Coupe 8T (2012 - 2016)
2010 onward Please see notes below

Audi Boot Handle Camera

Colour camera for Audi A3, A8, Q7 and RS5

You can either connect the camera to the vehicle's OEM radio head unit through an optional interface module, which it will display the rear view image on the OEM radio screen. The interface will be specific to your car model/radio and can be purchased as an optional extra. Alternatively you can choose from our universal mirror monitors to display the reversing image on an external universal screen.



If you are unsure at anytime please contact us via the Ask a question link at the top of this page or telephone us and we will gladly assist you.

Installation Lead

Refer to the included fitting instructions.
If you are unsure at anytime, please contact us via the Ask a question link at the top of this page, The Product Related Question tab or telephone us and we will gladly assist you.

For added peace of mind, our products can be professionally installed at your home or workplace anywhere in the UK by our qualified and accredited network of engineers.

Please contact us for a competitive no obligation quote

RVC Spec
Reversing Camera FeaturesReg Plate, Boot Handle & Brake Light Camera
