Rear View Camera Kit for Vauxhall Vivaro with NAC Pro Touch Screen

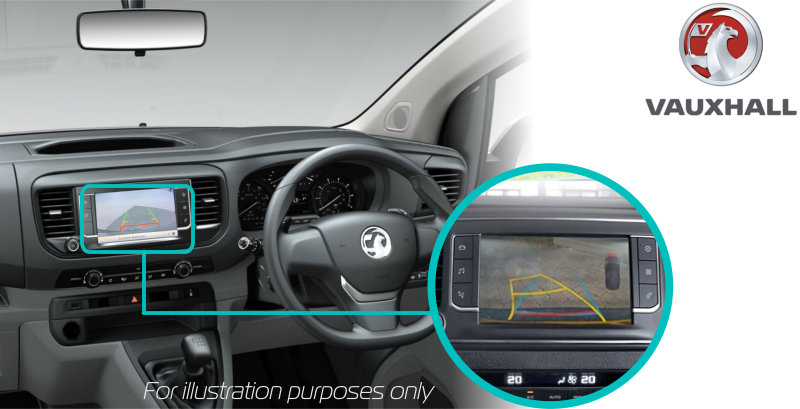

A high-quality rear view reversing camera kit solution, designed to work with your Vauxhall Vivaro's factory fitted infotainment head unit. This retrofit solution is compatible with vehicles manufactured from 2020 onwards. The solution includes a discreet bolt-in flush camera, which provides guidelines. The high quality camera provides a clear & crisp image on the infotainment screen to aid you with reversing and parking.

This Vauxhall Vivaro reversing retrofit camera kit is compatible with systems fitted with the NAC Pro Touch Screen.

This kit is also available with the optional Brake Light Camera. Please see the Recommended Add-ons section above.

NOTE: Moving lines are only available on automatic vehicles

Benefits Of Having A Reverse Camera In Your Vauxhall Vivaro

• Guidelines can be really helpful so the driver can accurately estimate the width of the vehicle parking space whilst reversing.
• The driver can see any obstructions behind the vehicle during the reversing manoeuvre
• The driver can see any any blind spots which are not visible to the driver
• Greater vehicle safety management during reversing manoeuvres
• Makes reversing much safer and more convenient

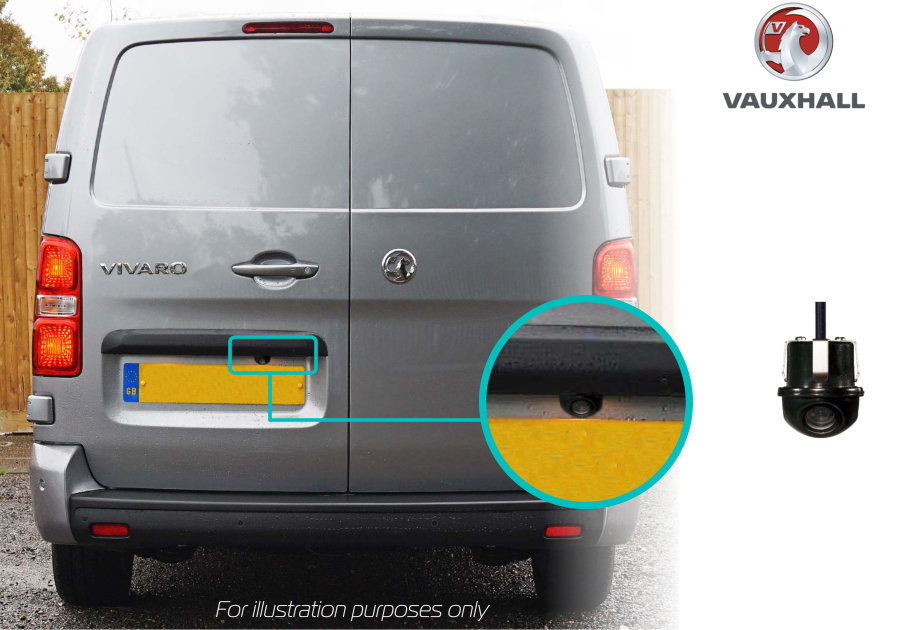

Bolt In Camera

Specifications

• Operating voltage 6 to 26 Volt DC
• Power consumption 60-90mA
• DIN protection class IP69K
• Black matt housing with stainless steel mounting
• Mounting dimensions camera 25.8x28.2mm and 20.8mm high
• Drill hole 8mm
• Operating temperature -40°C to +75°C
• Storage temperature -60°C to 105°C
• E certified
• Diagonal viewing angle 170°
• Horizontal viewing angle 150°
• Vertical viewing angle 90°
• Exposure 1/50-60~1/15000 seconds
• Signal to noise ratio =>60.5dB
• Light sensitivity < 0.01 lux
• Automatic white balance
• Automatic video level adjustment

Bolt-On camera can only be used if there is a Grasp Bar where the Number Plate Lights are situated (see image above)

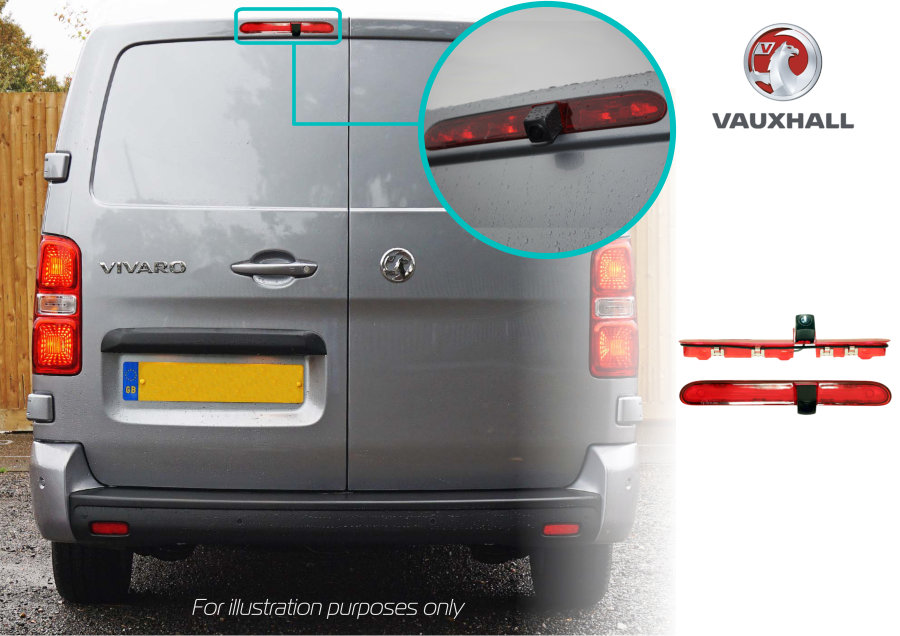

Brake Light Camera (Optional)

Specifications

• Image Type:    1/3" CMOS
• Night vision:    Without IR lamp
• TV System:    NTSC/PAL
• Lens Angle:    170° (D)、110°（H）、90°（V）
• IP Rating:    IP69K
• Vibration Rate:    10G
• Connector:    4P BMW to 4P lock connector
• Effective Pixels:    N: 510×492 pixels P: 500×582 pixels
• Horizontal Resolution:    420TVL/700TVL
• B.L.C:    Back light Compensation (Auto)
• White Balance:    Auto White Balance (Auto)
• Minimum Illumination:    0Lux (LED ON)
• S/N Ratio:    ≧48dB
• Electronic Shutter:    1/60~1/100,000 Sec
• Power consumption:    <3W
• Built-in Lens:    f: 2.8mm
• Power Consumption:    DC 12V (+/-10%)
• Audio:    without
• Operation Temperature:    -30℃~+70℃.RH95% Max
• Storage Temperature:    -40℃~+80℃.RH95% Max

This retrofit reversing camera kit solution has been specially designed for the Vauxhall Vivaro and will fully integrate with the factory fitted infotainment system. This retrofit reversing camera kit solution maintains the factory options as standard.

*Installation is optional via the dropdown

Refer to the compatibility section to check your vehicle variant is supported.

NOTE: A reversing camera kit is ONLY a Parking Aid and should not be relied on solely. Please check your surroundings at all times before carrying out a Reversing Manoeuvre. Where Guide lines are included, the guide lines are generic to all vehicles and hence fixed width and not adjustable to the width of the vehicle.
