Alpine KIT-8VWTX303 8" Car Stereo Installation Kit
Car Stereo Installation Kit - Volkswagen MIB-PQ - VW, Seat and Skoda

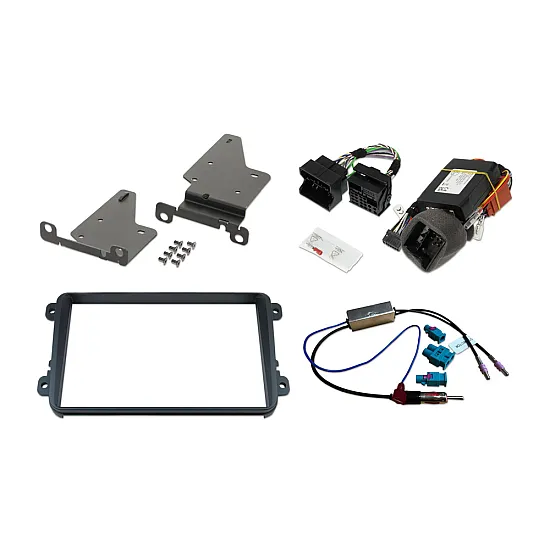

The KIT-8VWTX303 includes all parts for mechanical fitting of an 8-inch Alpine X803D-U / X803DC-U Head Unit, as well as an interface that allows to retain the car’s air condition and heater control screens and the optical parking sensor display.
The interface also supports the vehicle’s radio display in the instrument cluster (MFD) and Steering Wheel Remote Control. An antenna adapter with phantom feed and a power Quadlock adapter are included as well. You can even directly connect the original VW / Skoda / Seat microphone and reversing camera with the wiring harness.
Special Notes:
- Only for cars with white MFD (Multifunctional display). Not compatible with radios with CAR button.
- No support for original RGB cameras
- For cars with white MFD, if the car was not equipped with a screen before, it may be necessary to program the vehicle in order to enable the visualisation. Please consult with an authorised dealer or service workshop.

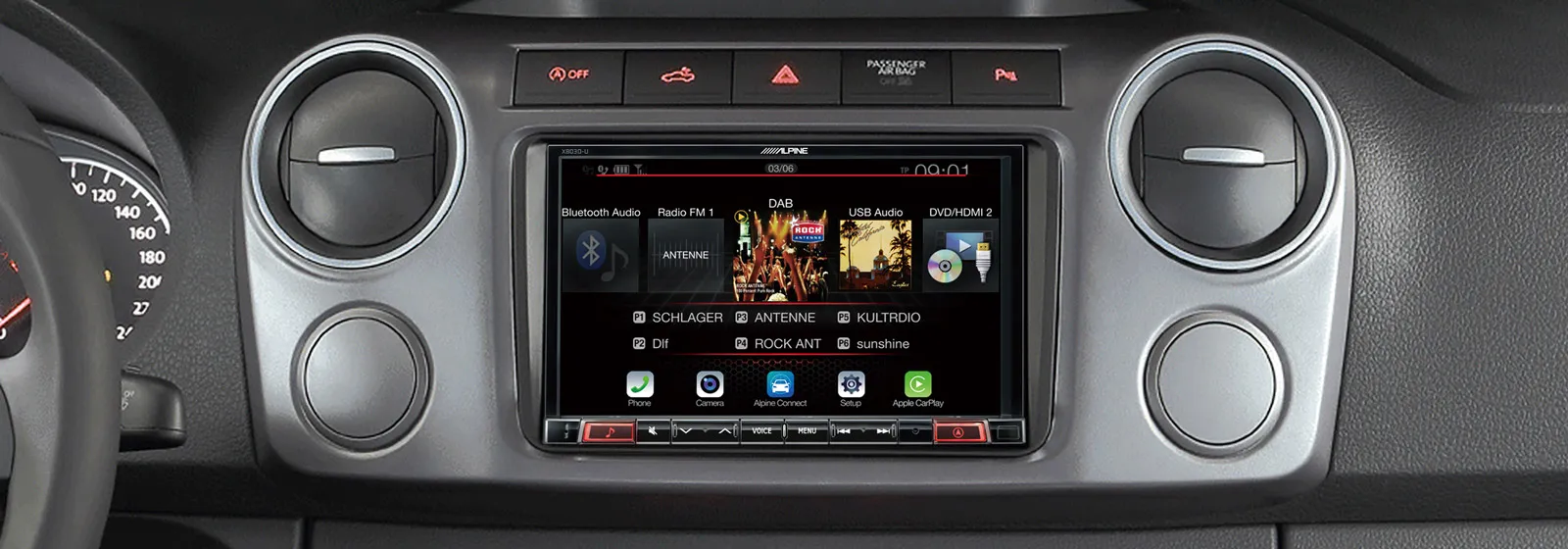

Designed for VW platforms (Seat, Skoda and VW)

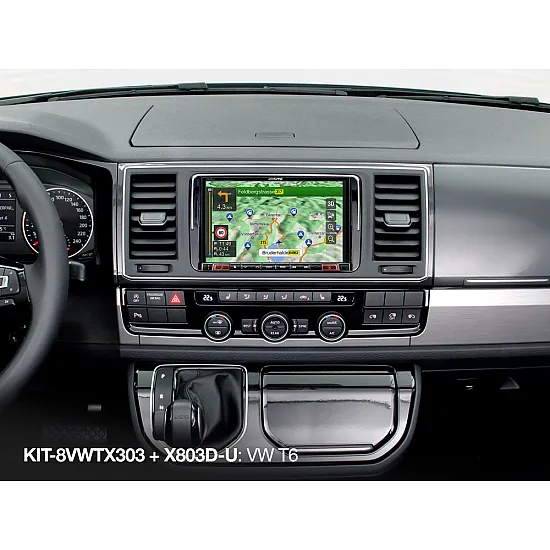

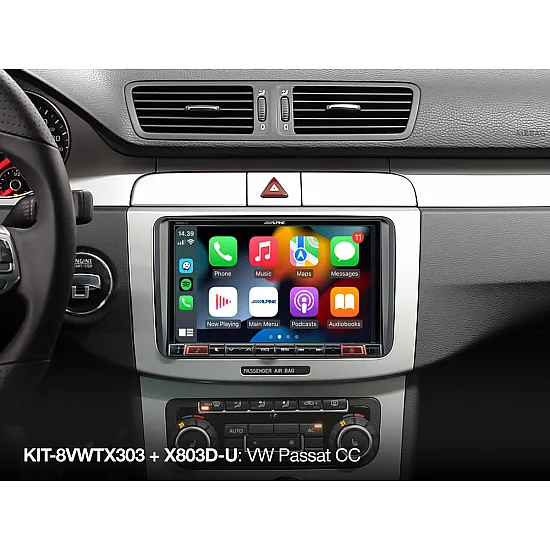

The KIT-8VWTX303, combined with the X803D-U or X803DC-U brings cutting edge multi-media / navigation into your compatible Volkswagen, Seat or Skoda vehicle. It allows perfect integration of a compatible Alpine Head Unit in your vehicle and includes all required parts.

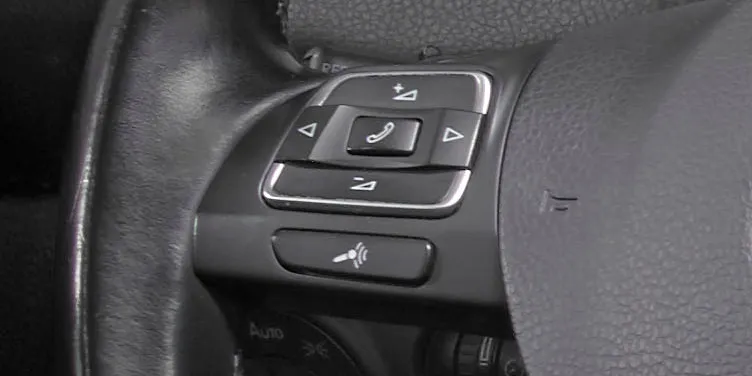

Retains Steering Wheel Controls
If your car is equipped with original parking sensors, you can continue to use this convenient feature when upgrading to an Alpine Head Unit. The parking sensor system is connected to your Alpine screen, showing a convenient distance display.

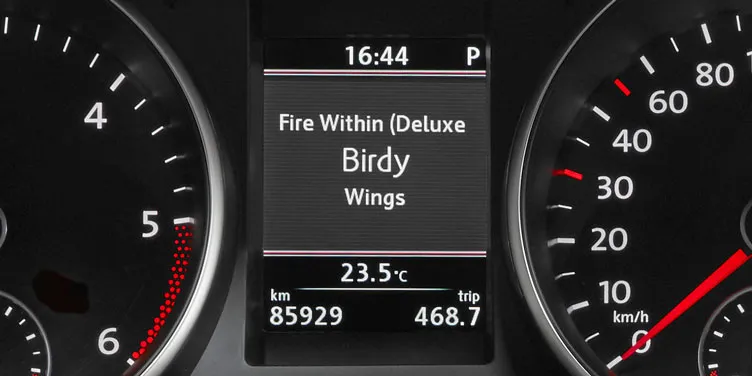

Retains Driver Information Display
The small display in the instrument cluster (MFD) is also connected to the Alpine system and can display radio station names, song titles and artist information, caller names and much more. Navigation turn-by-turn arrow support in the MFD will become enabled for the X803D-U / X803DC-U in early 2024. Please ask you Alpine dealer for further information.

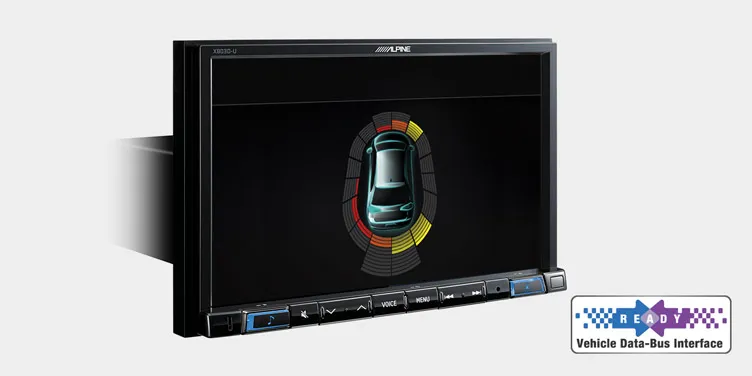

Retains Parking Sensors Display
If your car is equipped with original parking sensors, you can continue to use this convenient feature when upgrading to an Alpine Head Unit. The parking sensor system is connected to your Alpine screen, showing a convenient distance display.

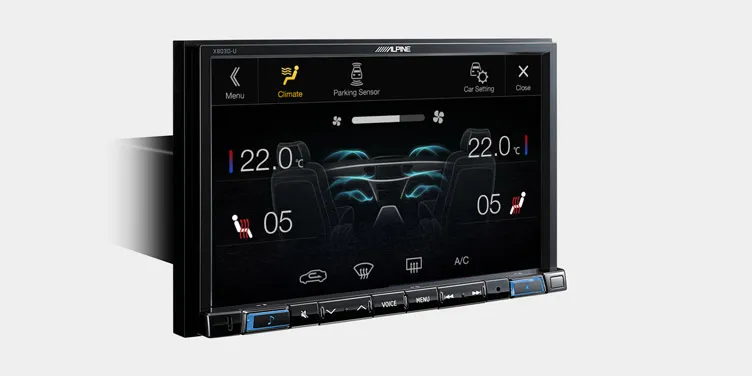

Retains Air Condition Display
The Head Unit gives you visual feedback for the selected temperature of driver and co-driver, AC status, seat heating level, selected air vents and more. This screen will automatically appear for a few seconds when any of the named settings is changed to give the driver feedback.

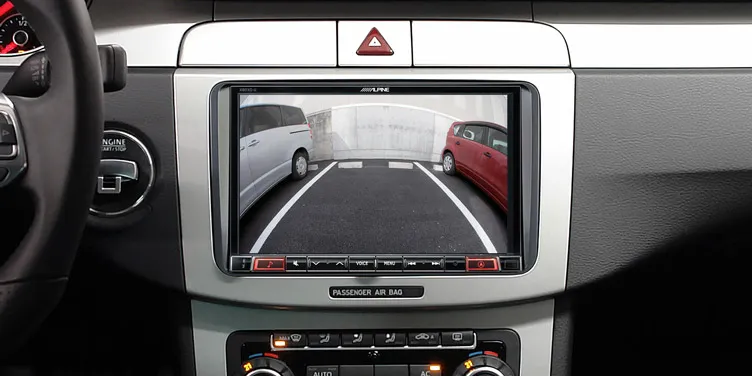

Compatible with Original VW Reversing Camera
You can continue to use your original Volkswagen reversing camera with the KIT-8VWTX303. Note: Not compatible with original RGB cameras

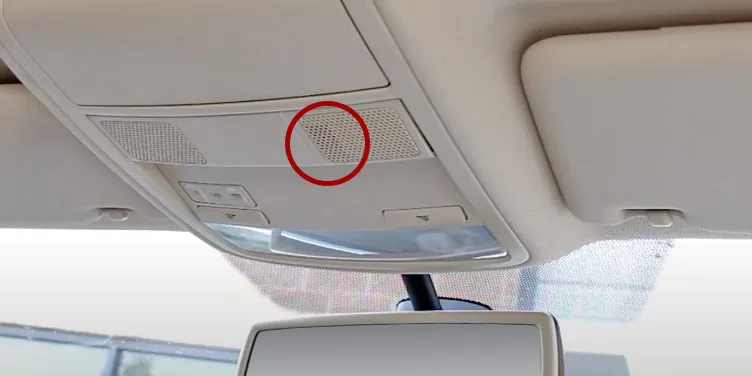

Compatible with Original VW Microphone
The Head Unit gives you visual feedback for the selected temperature of driver and co-driver, AC status, seat heating level, selected air vents and more. This screen will automatically appear for a few seconds when any of the named settings is changed to give the driver feedback.
Key Features
- Compatible with VW platforms (MIB-PQ - Seat, Skoda and VW)
- Steering wheel remote control interface with CAN to analogue conversion, retention of original car menu, addition of HVAC (Heating, Ventilation and Air Conditioning) and OPS (Optical Parking Sensor) screens and SIRI support.
- Power Quadlock adapter inclusive
- Supports original vehicle microphone and rear camera 2)
- Includes antenna adapter with phantom feed
Compatible Cars
See Vehicle Compatibility tab
Product Compatibility Chart
Make | Model | Variations | Years | Radio | Notes |
SEAT | Alhambra |
7N (2010 - 2015) | 2010 - 2015 | Please see notes below | |
SEAT | Leon |
1P FL (2009 - 2013) | 2009 - 2012 | Please see notes below | |
SEAT | Toledo |
KG NH (2012 - 2019) | 2013 - 2015 | Please see notes below | |
Skoda | Fabia |
5J FL (2010 - 2014) | 2010 - 2014 | Please see notes below | |
Skoda | Octavia |
1Z MK2 FL (2009 - 2013) | 2009 - 2013 | Please see notes below | |
Skoda | Rapid |
NH (2012 - 2017) | 2012 - 2015 | Please see notes below | |
Skoda | Roomster |
5J FL (2010 - 2015) | 2010 - 2015 | Please see notes below | |
Skoda | Superb |
3T M2 FL (2013 - 2015) | 2008 - 2015 | Please see notes below | |
Skoda | Superb |
3T MK2 (2008 - 2013) | 2008 - 2015 | Please see notes below | |
Skoda | Yeti |
5L (2009 - 2013) | 2009 - 2015 | Please see notes below | |
Skoda | Yeti |
5L FL (2014 - 2017) | 2009 - 2015 | Please see notes below | |
Volkswagen | Amarok |
2H 1st. Gen. (2010 - 2016) | 2010 - 2016 | Please see notes below | |
Volkswagen | Beetle |
5C (2011 - 2015) | 2011 - 2016 | Please see notes below | |
Volkswagen | Caddy |
2C, 2K FL (2010 - 2015) | 2010 - 2015 | Please see notes below | |
Volkswagen | Eos |
1F (2006 - 2010) | 2006 - 2015 | Please see notes below | |
Volkswagen | Eos |
1F FL (2011 - 2016) | 2006 - 2015 | Please see notes below | |
Volkswagen | Golf |
MK6, A6, Typ.5K (2008 - 2014) | 2008 - 2013 | Please see notes below | |
Volkswagen | Golf Plus |
A5 1K FL (2009 - 2014) | 2009 - 2014 | Please see notes below | |
Volkswagen | Passat |
B7 3C (2010 - 2015) | 2010 - 2014 | Please see notes below | |
Volkswagen | Passat CC |
1st Gen. FL (2012 - 2017) | 2008 - 2016 | Please see notes below | |
Volkswagen | Passat CC |
3C 1st.Gen (2008 - 2011) | 2008 - 2016 | Please see notes below | |
Volkswagen | Polo |
MK5 6R (2009 - 2014) | 2009 - 2014 | Please see notes below | |
Volkswagen | Scirocco |
III typ.13 (2008 - 2014) | 2008 - 2017 |
Beta
| Please see notes below |
Volkswagen | Scirocco |
III typ.13 FL (2014 - 2018) | 2008 - 2017 |
Beta
| Please see notes below |
Volkswagen | Sharan |
II 7N (2010 - 2015) | 2010 - 2017 | Please see notes below | |
Volkswagen | Sharan |
II 7N FL (2016 > ) | 2010 - 2017 | Please see notes below | |
Volkswagen | Tiguan |
MK1 5N (2007 - 2011) | 2007 - 2015 | Please see notes below | |
Volkswagen | Tiguan |
MK1 5N FL (2011 - 2016) | 2007 - 2015 | Please see notes below | |
Volkswagen | Touran |
MK1 GP2 (2010 - 2015) | 2010 - 2015 | Please see notes below | |
Volkswagen | Transporter |
T5 7E/F/J/H FL (2010 - 2015) | 2009 - 2015 | Please see notes below | |
Volkswagen | Transporter |
T6 SG/SF (2016 - 2019) | 2015 - 2019 | Please see notes below |
Alpine KIT-8VWTX303 8" Car Stereo Installation Kit
Car Stereo Installation Kit - Volkswagen MIB-PQ - VW, Seat and Skoda
Special Notes:
- Only for cars with white MFD (Multifunctional display). Not compatible with radios with CAR button.
- No support for original RGB cameras
- For cars with white MFD, if the car was not equipped with a screen before, it may be necessary to program the vehicle in order to enable the visualisation. Please consult with an authorised dealer or service workshop.
![]() | If this product is not suitable for your vehicle then refer to our universal products in our Car Stereo Fitting Accessories section. |
If you are unsure about the suitability of this product please contact us via the ask a question link at the top of this page or telephone us and we will gladly assist you.

Factory fitted In-car Infotainment systems and their wiring can be complex, so we always recommend that you have your installation carried out by a qualified installer. If you wish, Car Communications can arrange for your Car Stereo System to be installed at an address of your choice anywhere in the UK.
Please contact us for a competitive quote
For added peace of mind, our products can be professionally installed at your home or workplace anywhere in the UK by our qualified and accredited network of engineers.
Special Notes:
- Only for cars with white MFD (Multifunctional display). Not compatible with radios with CAR button.
- No support for original RGB cameras
- For cars with white MFD, if the car was not equipped with a screen before, it may be necessary to program the vehicle in order to enable the visualisation. Please consult with an authorised dealer or service workshop.
Please refer to the fitting instructions.
Car Stereo Full Specification | |
Size | Double Din |
