Dashmount 70501 Upper Console Mounting Bracket Dodge Ram Truck Up to 2002 LHD Only

Dashmount 70501 Upper Console Mounting Bracket Dodge Ram Truck Up to 2002 LHD Only
Out Of Stock

Dashmount 70501 Upper Console Mounting Bracket Dodge Ram Truck Up to 2002 LHD Only

£24.95
Ex Tax: £20.79
  • Stock Availability: Out Of Stock
  • Item Condition :
  • Model: 70501


    Mounting Bracket

    The (70501) dashmountTM bracket will enable you to fit your car phone cradle, phone holder or iPod cradle without having to make screw holes in the dashboard fascia of your vehicle. All DashmountTM mounting brackets are TUV safety approved, beware of cheaper imitations!

    Check the compatibility section if supported with your car make and model

    Made from top quality steel that has a special black powder coating to ensure a neat finish. These brackets have pre drilled holes and slots to suit most of the common hands free car kit cradles and phone holders on the market. The brackets utilise either tape and grippers or the screws that are already in your vehicle but are hidden from sight. Fitting instructions are included with each bracket purchased - some trim removal may be required.

    All DashmountTM brackets should be installed by a suitably qualified person. Neither Car Communications or DashmountTM accepts any responsibility for any damage caused to the vehicle whilst attempting to install the bracket.

    Easy-Fit robust and stylish DashmountTM mounting bracket, giving a damage free installation of mobile phone cradles, iPod Car Kit cradles and other portable devices offering easy access while giving an integrated look with your dashboard and interior. DashmountTM brackets are vehicle specific resulting in optimum design and simple installation for your particular car make and model.

    Key Features

    • Damage free installation of mobile phone cradle, ipod cradles or other portable devices
    • Easy-Fit robust and stylish Dashmount mounting bracket
    • TUV safety approved


    If you are unsure about the suitability of this product with your car please submit an enquiry form by clicking ask us about this item found at the top of this page.



    Dashmount  70501



    Dodge Compatibility Chart

    Car Model

    Year

    Description Notes
    Ram Truck Up to 2002    1



    1. May require trim removal tools. Check installation section for further details

    If you are unsure about the compatibility of this product with your car please submit an enquiry form by clicking ask us about this item found at the top of this page.



    You may require trim removing tools for installing this product.



    Step 1. Remove the screw located under the Auxiliary power outlet.
                                                 Step 2. Put on the parking brake and shift the the gear into drive and tilt the steering wheel all the way down.
                                                 Step 3. Remove the dashboard trim panel by starting at the top right and pressing down and pulling towards you. (Panel is held by clips).
                                                 Step 4. Disconnect the wiring harness for the auxiliary power outlet and lay the dashboard trim panel on top of the dashboard.
                                                 Step 5. To the right of the radio there will be a 7mm bolt. Remove this bolt and pull the radio housing out so that you can                                              insert the Dash Mount behind the radio housing.

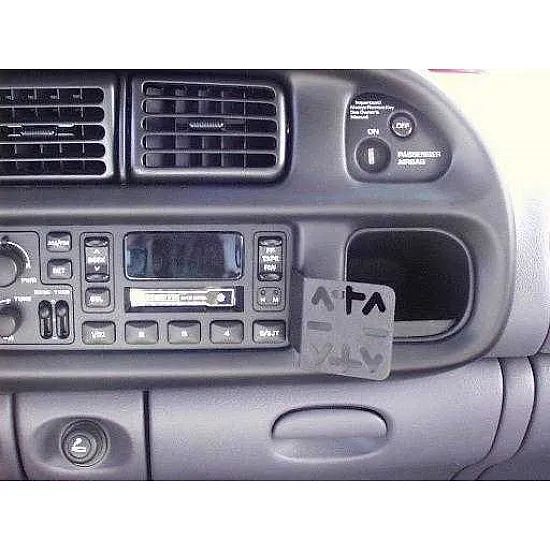

                                                 Step 6. Reinstall the trim panel making sure that the dashmount comes out between the radio and the trim panel.



    If you require help with installation please submit our enquiry form by clicking ask us about this item found at the top of this page after you have purchased the item. We will more than happily provide free telephone or email support.
