Universal Rear View Camera Package
- 1 Year Warranty
Available Options
3.5" Dash Monitor
| 5" Dash Monitor
|
4.3" Mirror Monitor
| 7" Mirror Monitor
|
6" Dash Mounted Monitor 7" Dash Mounted Monitor
Optional Installation Package
You are being offered an Installation Service at an additional cost. If you select the installation option, the purchased product will be professionally Installed at your home or workplace by our network of Qualified & Accredited Installation Engineers. You will be contacted by a member of our installation booking team after you have placed an order (Within 72 hours). To be sure we cover your area, please contact us before selecting this option.
We also offer Discounted competitive rates if Installations are carried out at our Workshop in Blackburn. Please contact us for a competitive quote.
Please choose the correct option from the list
Commercial vehicles & Motorhomes - Vans (Small & large), Mini Vans, Taxis, Buses, Mini Buses, Trucks, HGV's, Motorhomes, Campervans
Non- Commercial - Standard Sized 2/4/5 Door Family cars (not used for commercial purposes)
Please note: Incorrect selection will be charged the difference before the install takes place. If you are unsure of the correct selection, please contact us first.

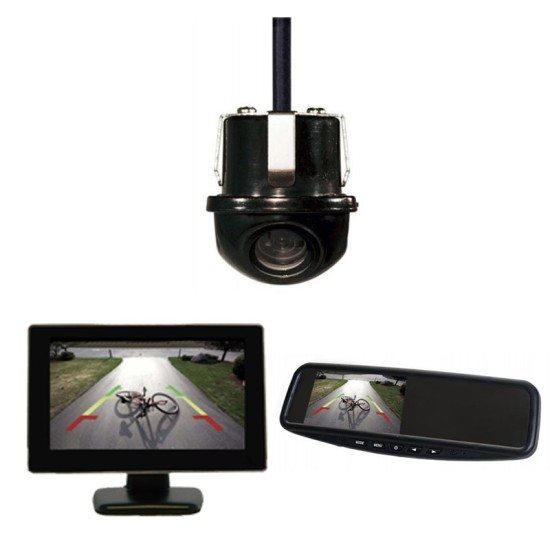

Reversing Camera Package
This reversing camera kit comprises of a bespoke reversing camera kit solution. There are two Monitor options to select from:
- 5" Dash Mounted Monitor
- 4.3" Mirror Monitor
5" Dash Mounted Monitor (default option included in the screen price) - A discreet monitor screen which sits on the dashboard
4.3" Clip-on Rear view Mirror Monitor (Optional upgrade) - Monitor screen which simply clips over your existing rear view mirror. Continues to serve as a rear view mirror until the reversing camera is engaged, at which point a reversing image is superimposed onto the mirror surface.
Both of these options provide a high quality screen with a clear & crisp video image.
This universal reversing camera kit solution is suitable for most vehicle brands, such as the following but not limited to
Audi, Alfa romeo, Aston Martin, BMW, Citroen, Crysler, Dacia, DS, Fiat, Ford, Honda, Hyundai, Jaguar, Land Rover, Kia, Mazda, Mercedes-Benz, Nissan, Peugeot, Porsche, Renault, Toyota, Vauxhall, Volkswagen, Volvo
Please make your Monitor screen selection from the Recommended Add-Ons list above.
Mirror Monitor | Dash Monitor |
illustration purpose only |
illustration purpose only |
|
|
Benifits Of Having A Reverse Camera For Cars
- Guidelines can be really helpful so the driver can accurately estimate the width of the vehicle parking space whilst reversing.
- The driver can see any obstructions behind the vehicle during the reversing manoeuvre
- The driver can see any any blindspots which are not visible to the driver
- Greater vehicle safety management during reversing manoeuvres
- Makes reversing much safer and more convenient

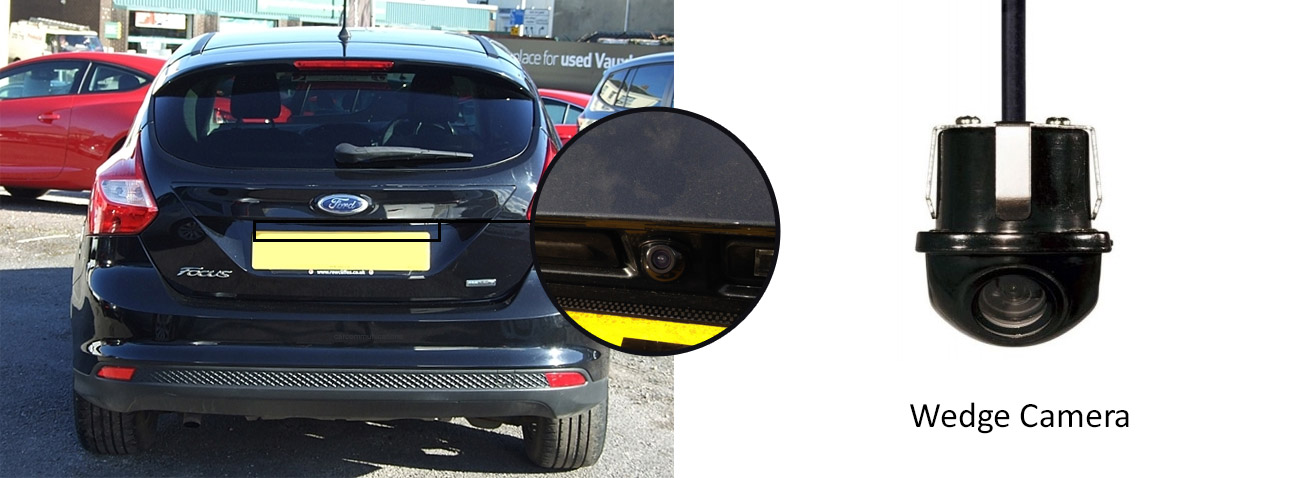

Push Fit Camera
This discreet camera provides guidelines. The high quality camera provides a clear & crisp image on the chosen monitor screen to aid you with reversing and parking.
Specifications
- Sensor type:1/4'' Colour CMOS (PC7070)
- Resolution in lines: 420 TVL
- Resolution in pixels: 640 x 480
- Picture: NTSC
- Minimum Illumination: 0.5Lux
- Camera Tilt to Installation Surface: 50º
- Diagonal Angle: 170º
- Video Output 1.0Vp-p, 75 Ohms
- Operating voltage: 13.8 volts DC
- Power Consumption: 70mA max
- Dynamic Range: >64db
- Protection Category: IP66
- Working temperature: -40 ° C to + 80 ° C
- Supplied Camera Extension Cable Length: 7m
- Dimensions (HxDxW): 30 x 29 x 24mm
- Mounting: Stainless steel
- Drill Bit Dimensions required: 21mm (not included)
illustration purpose only
*Installation is optional via the dropdown
NOTE: A reversing camera kit is ONLY a Parking Aid and should not be relied on solely. Please check your surroundings at all times before carrying out a Reversing Manoeuvre. Where Guide lines are included, the guide lines are generic to all vehicles and hence fixed width and not adjustable to the width of the vehicle.
NOTE: You will have to check if the mirror monitor will clip onto you rear view mirror, the image below will help you. (if you are unsure please send us a picture and we will let you know if its compatible)
If you are unsure about the suitability of this product please contact us via the ask a question link at the top of this page or telephone us and we will gladly assist you.
