Citroen Berlingo (K9) Reversing Rear View Camera Kit With Moving Guidelines
- Stock Availability: In Stock
- Item Condition : New
- Model: RVC-296 BERLINGO
- SKU: RVC-296 BERLINGO
- 1 Year Warranty
Available Options

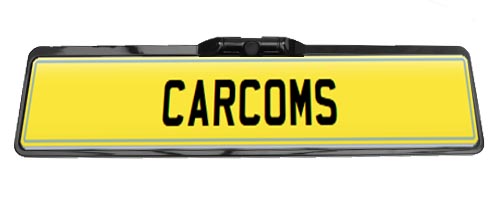

| WedgeCamera | Number Plate Surround Camera |
|  |

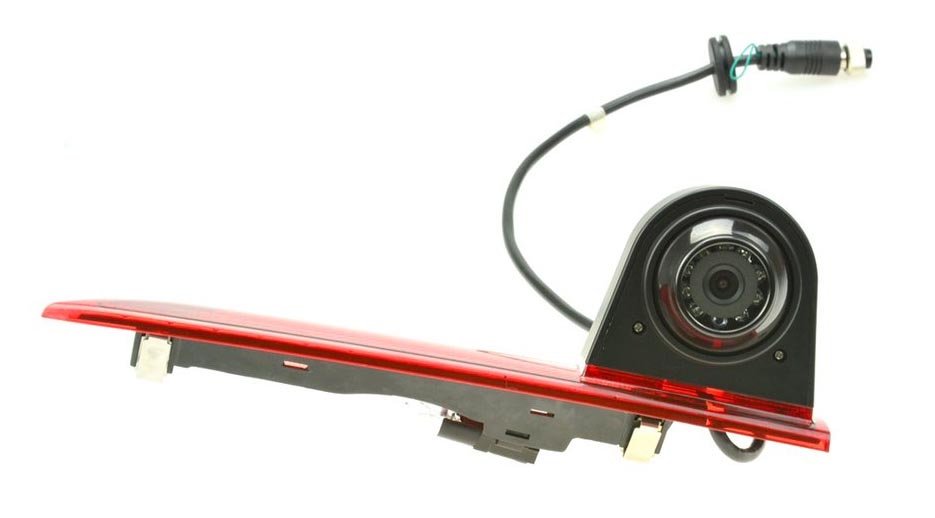

Brake Light Camera (Barn Door)
Brake Light Camera
Bolt-On Camera
Number Plate Light Camera
Optional Installation Package
You are being offered an Installation Service at an additional cost. If you select the installation option, the purchased product will be professionally Installed at your home or workplace by our network of Qualified & Accredited Installation Engineers. You will be contacted by a member of our installation booking team after you have placed an order (Within 72 hours). To be sure we cover your area, please contact us before selecting this option.
We also offer Discounted competitive rates if Installations are carried out at our Workshop in Blackburn. Please contact us for a competitive quote.
Please choose the correct option from the list
Commercial vehicles & Motorhomes - Vans (Small & large), Mini Vans, Taxis, Buses, Mini Buses, Trucks, HGV's, Motorhomes, Campervans
Non- Commercial - Standard Sized 2/4/5 Door Family cars (not used for commercial purposes)
Please note: Incorrect selection will be charged the difference before the install takes place. If you are unsure of the correct selection, please contact us first.
Citroen Berlingo 3rd Gen (K9) Rear View Camera Kit Solution

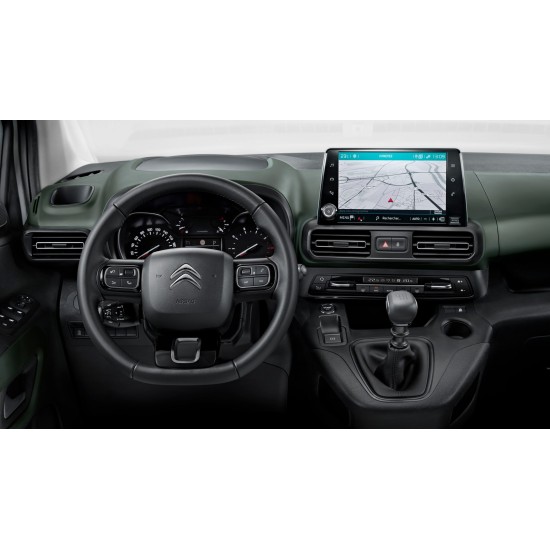

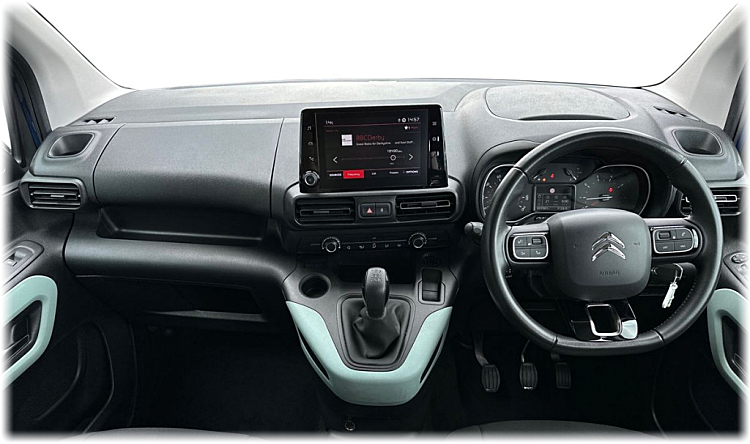

For Vehicles with Digital Connected NAV / Colour Touch Screen
An integrated high quality rear view camera kit, designed to work with your Citroen Berlingo's factory radio system. This retrofit reversing camera kit solution includes a Number Plate camera which provides Dynamic guidelines which will move according to the direction of the steering wheel. The high quality camera provides a clear & crisp image on the infotainment screen to aid you with reversing and parking.
NOTE: Moving lines are only available on automatic vehicles!
NOTE: Depending on which number plate lights your vehicle has, please select the right camera. If there is no bar above your number plate please select Brake Light Camera option from the above recommended add ons.
Available Camera Options
Other camera options are available from our Recommended Add-Ons list above. Please select your options. Please do bear in mind that there may be an additional cost depending on the options selected.

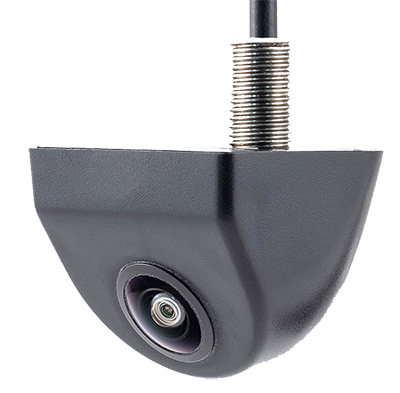

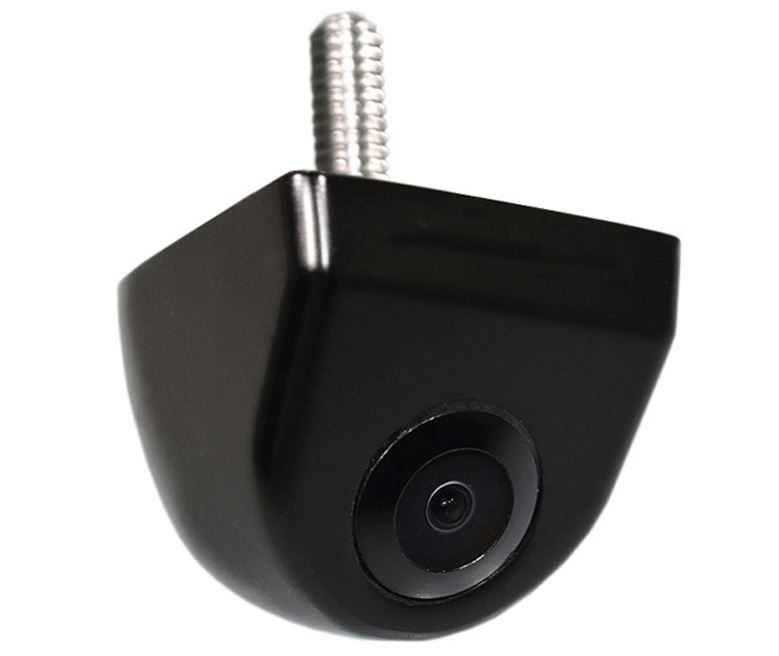

Bolt-On Wedge Camera
The wide-angle substructure camera is a reversing / rear view camera with unlimited areas of application in the car, bus, mobile home, truck or trailer. The aluminium housing is weatherproof and very stable. Optionally, auxiliary lines can be faded into the video signal, which enables the viewer to better park. The delivery is complete with a 7 meter connection cable with high-quality copper strands. In addition, a 5 ° beveled rubber pad is included in the scope of delivery to be able to adapt the viewing angle of the camera to the installation situation.
Camera Specification
- Black matt plastic housing with stainless steel fastening
- Mirrored image reproduction (adjustable)
- Image display rotated 180° (adjustable)
- Image sensor type 1/4 '' 1233 HD Colour CMOS Low Light Sensor
- NTSC video signal output
- Resolution 960H480V pixels
- DIN protection class IP69K
- 800 TV lines
- Exposure 60 fields per seconds
- Signal to noise ratio >46dB
- Dynamic Range >74dB
- Light sensitivity <0.01 Lux / F1.2
- Output signal 1.0Vp-p, 75 OHM
- Automatic white balance
- Automatic video level adjustment
- Operating voltage 12 volts DC
- Power consumption 25-55mA
- Diagonal viewing angle 188°
- Horizontal viewing angle 155°
- Vertical viewing angle 113°

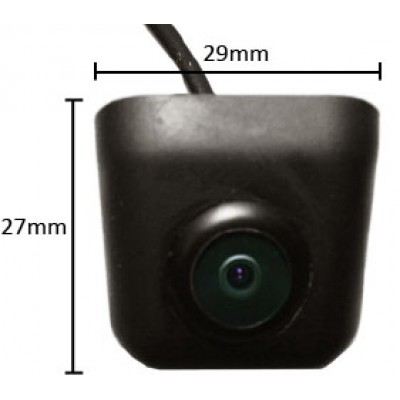

- Camera dimensions 25.8 x 28.2mm and 20.8mm high
- 8mm mounting hole
- Working temperature -40°C to +75°C
- Storage temperature -60°C to +105°C
- CE certified
Benefits of having a reversing camera kit in your Citroen Berlingo
- Guidelines can be really helpful so the driver can accurately estimate the width of the vehicle parking space whilst reversing.
- The driver can see any obstructions behind the vehicle during the reversing manoeuvre
- The driver can see any any blind spots which are not visible to the driver
- Greater vehicle safety management during reversing manoeuvres
- Makes reversing much safer and more convenient
*Installation is optional via the dropdown
 | Refer to the compatibility section to check your vehicle variant is supported. |
NOTE: A reversing camera kit is ONLY a Parking Aid and should not be relied on solely. Please check your surroundings at all times before carrying out a Reversing Manoeuvre. Where Guide lines are included, the guide lines are generic to all vehicles and hence fixed width and not adjustable to the width of the vehicle.
For added peace of mind, our products can be professionally installed at your home or workplace anywhere in the UK by our qualified and accredited network of engineers.
