Jeep Renegade Rear View Reversing Retrofit Camera Kit - 6.5" Uconnect System
- Stock Availability: Out Of Stock
- Item Condition : New
- Model: RVC-311-JEEP
- SKU: RVC-311-JEEP
- 1 Year Warranty
Available Options
Optional Installation Package
You are being offered an Installation Service at an additional cost. If you select the installation option, the purchased product will be professionally Installed at your home or workplace by our network of Qualified & Accredited Installation Engineers. You will be contacted by a member of our installation booking team after you have placed an order (Within 72 hours). To be sure we cover your area, please contact us before selecting this option.
We also offer Discounted competitive rates if Installations are carried out at our Workshop in Blackburn. Please contact us for a competitive quote.
Please choose the correct option from the list
Commercial vehicles & Motorhomes - Vans (Small & large), Mini Vans, Taxis, Buses, Mini Buses, Trucks, HGV's, Motorhomes, Campervans
Non- Commercial - Standard Sized 2/4/5 Door Family cars (not used for commercial purposes)
Please note: Incorrect selection will be charged the difference before the install takes place. If you are unsure of the correct selection, please contact us first.
Reversing Rear View Camera Kit
6.5" Uconnect Stereo (Radio Nav / Radio Nav Live)

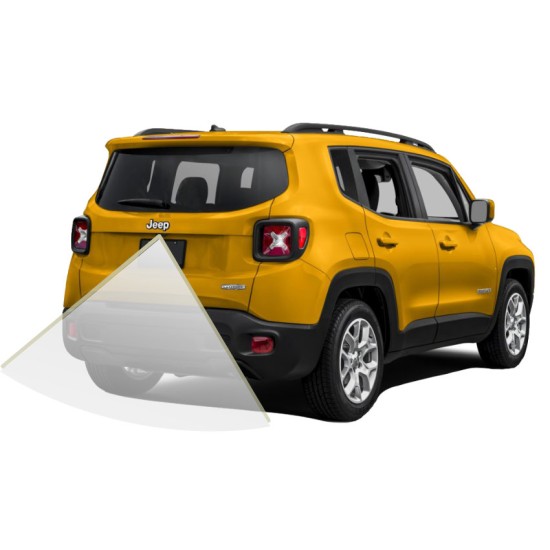

A high-quality rear view reversing camera kit solution, designed to work with your Jeep Renegade factory fitted head unit. This retrofit solution is compatible with vehicles fitted with the 6.5" Uconnect infotainment system and includes a discreet camera, which provides guidelines. The high quality camera provides a clear & crisp image on the infotainment screen to aid you with reversing and parking.
Benefits of having a reverse camera for cars
- Guidelines can be really helpful so the driver can accurately estimate the width of the vehicle parking space whilst reversing.
- The driver can see any obstructions behind the vehicle during the reversing manoeuvre
- The driver can see any any blindspots which are not visible to the driver
- Greater vehicle safety management during reversing manoeuvres
- Makes reversing much safer and more convenient

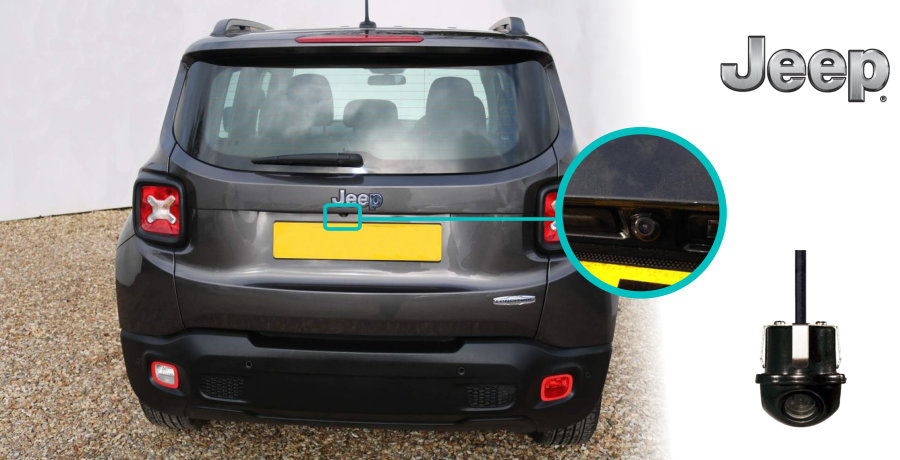

Reversing Camera
Images are for illustrative purposes only

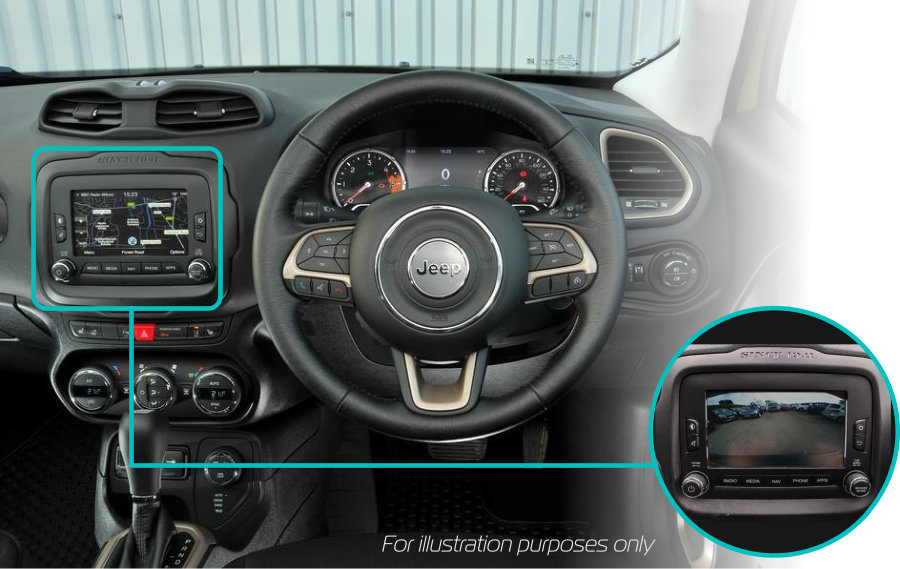

This rear view reversing camera kit, will fully integrate with the factory fitted touch screen infotainment system. This retrofit reversing camera kit solution maintains the factory options as standard.
Specifications
- Sensor type:1/4'' Colour CMOS (PC7070)
- Resolution in lines: 420 TVL
- Resolution in pixels: 640 x 480
- Picture: NTSC
- Minimum Illumination: 0.5Lux
- Camera Tilt to Installation Surface: 50º
- Diagonal Angle: 170º
- Video Output 1.0Vp-p, 75 Ohms
- Operating voltage: 13.8 volts DC
- Power Consumption: 70mA max
- Dynamic Range: >64db
- Protection Category: IP66
- Working temperature: -40 ° C to + 80 ° C
- Supplied Camera Extension Cable Length: 7m
- Dimensions (HxDxW): 30 x 29 x 24mm
- Mounting: Stainless steel
- Drill Bit Dimensions required: 21mm (not included)
- E-approval: E13-10R00-10R02-3857 -00
- CE approval: 960323L14,960323L13
This kit has been specially designed to fit an Uconnect 6.5" (Radio Nav / Live) head unit.
Please Note: Head unit must be temporarily removed to install this interface, professional installation is recommended.
No programming or coding required after the kit has been installed, as we have had the kits manufactured in such a way that all the software is built in.
*Installation is optional via the dropdown
 | Refer to the compatibility section to check your vehicle variant is supported. |
NOTE: A reversing camera kit is ONLY a Parking Aid and should not be relied on solely. Please check your surroundings at all times before carrying out a Reversing Manoeuvre. Where Guide lines are included, the guide lines are generic to all vehicles and hence fixed width and not adjustable to the width of the vehicle.
Factory fitted In-car Infotainment systems and their wiring can be complex, so we always recommend that you have your installation carried out by a qualified installer. If you wish, Car Communications can arrange for your RVC Kit to be installed at an address of your choice anywhere in the UK. Please select from addons options above before adding the purchase to your cart. During the checkout process you will be asked for your preferred date(s) and time for the installation.
For added peace of mind, our products can be professionally installed at your home or workplace anywhere in the UK by our qualified and accredited network of engineers.
