Rear View Camera Kit

Mazda MX-5 with 7" MZD Connect head unit

An integrated high quality rear view camera kit, designed to work with your factory navigation system. A discreet Wedge camera that will give you guidelines and with its unique Sony CMOS lens the resulting image on the navigation screen is fantastic.

Reversing Camera

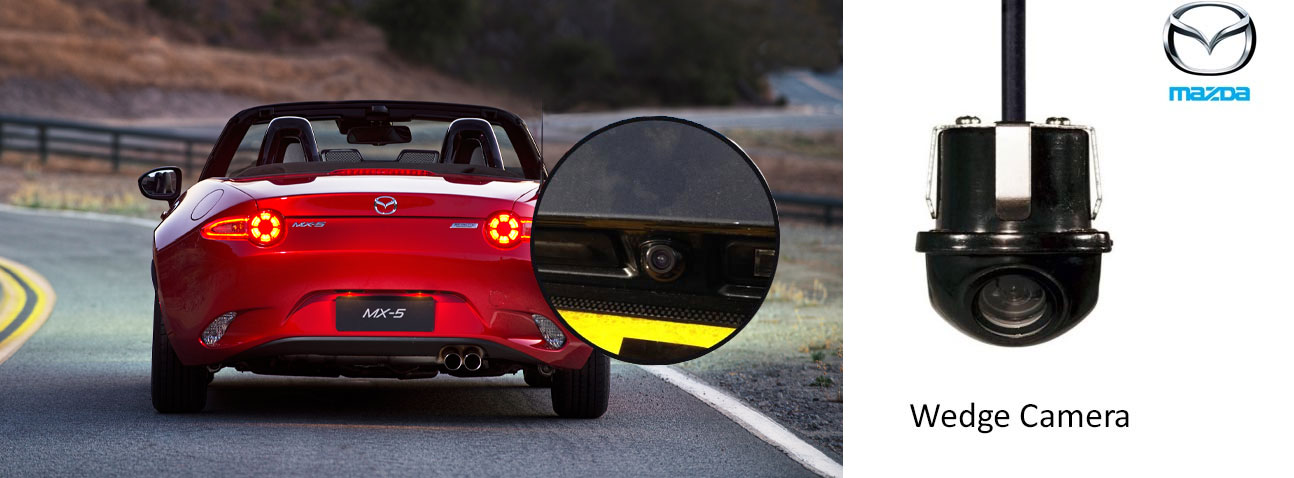

The high quality Sony lens with CMOS chip set, is drilled in just above the number plate which gives a discrete look, just like it has been factory fitted. The CMOS chip set will give you a clear and sharp picture in low light conditions, also the camera will work perfectly well in rainy conditions.

Specifications

• Sensor type:1/4'' Colour CMOS (PC7070)
• Resolution in lines: 420 TVL
• Resolution in pixels: 640 x 480
• Picture: NTSC
• Minimum Illumination: 0.5Lux
• Camera Tilt to Installation Surface: 50º
• Diagonal Angle: 170º
• Video Output 1.0Vp-p, 75 Ohms
• Operating voltage: 13.8 volts DC
• Power Consumption: 70mA max
• Dynamic Range: >64db
• Protection Category: IP66
• Working temperature: -40 ° C to + 80 ° C
• Supplied Camera Extension Cable Length: 7m
• Dimensions (HxDxW): 30 x 29 x 24mm
• Mounting: Stainless steel
• Drill Bit Dimensions required: 21mm (not included)

** Images are for illustrative purposes only

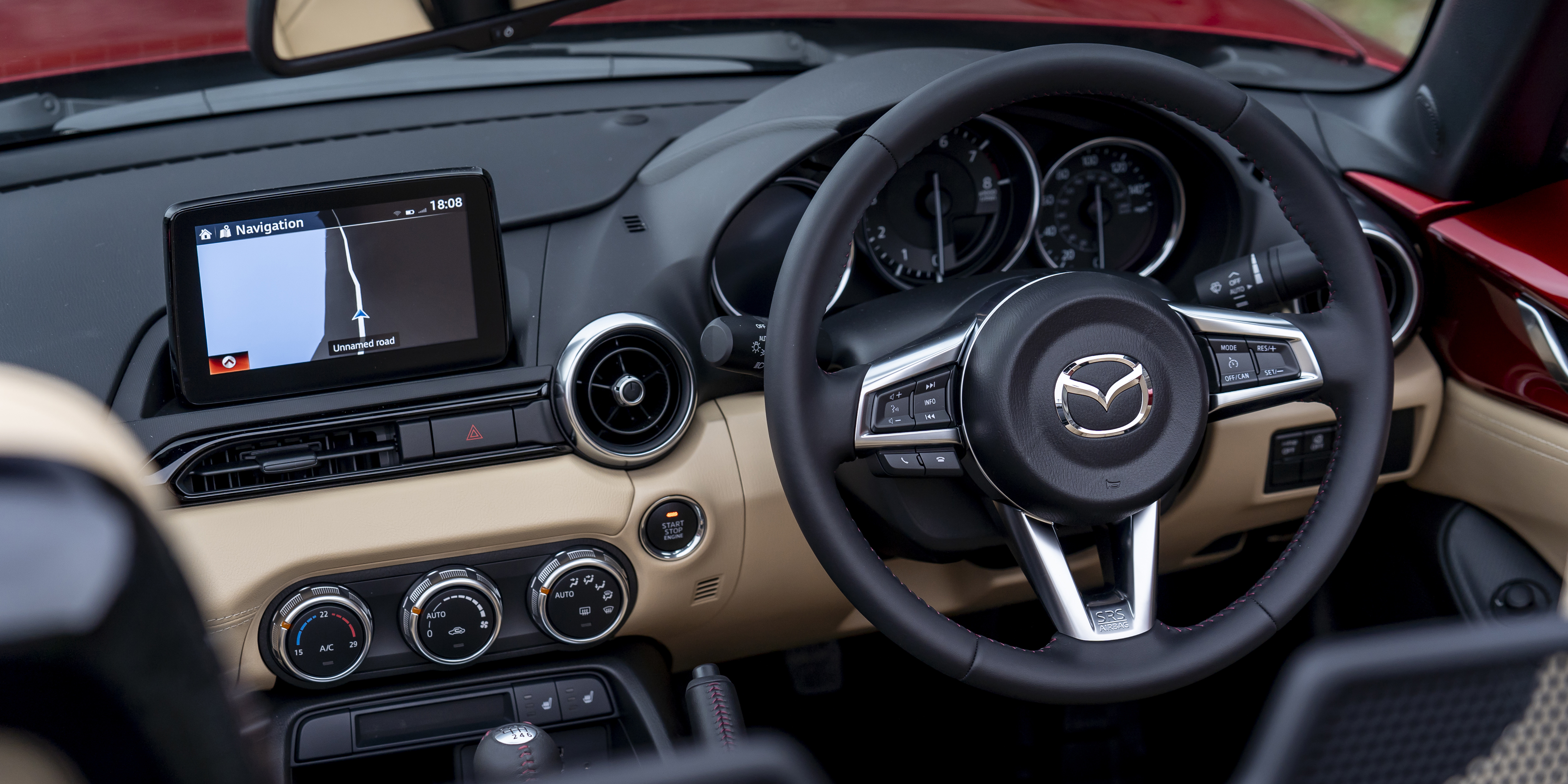

This kit has been specially designed for the Mazda MX-5 and has been perfected to work integrated with the factory fitted navigation screen. Please do not be fooled by cheaper alternatives which claim to utilise the navigation screen. Our kit maintains all of the factory options as standard. No programming or coding required after the kit has been installed, as we have had the kits manufactured in such a way that all the software is built into it.

Benefits of having a reversing rear view camera kit

• Guidelines can be really helpful so the driver knows exactly the width of the vehicle to park.
• Clearly show the ground behind the car, of which may not normally be visible from the driver’s view (blind spots)
• Greater vehicle safety management
• Makes driving much more convenient

*Installation is optional via the dropdown

Refer to the compatibility section to check your vehicle variant is supported.

NOTE: A reversing camera kit is ONLY a Parking Aid and should not be relied on solely. Please check your surroundings at all times before carrying out a Reversing Manoeuvre. Where Guide lines are included, the guide lines are generic to all vehicles and hence fixed width and not adjustable to the width of the vehicle.
