Universal Rear View Camera Package - RVC-UNI-KCX8
- Stock Availability: In Stock
- Item Condition : New
- Model: RVC-UNI-KCX8
- SKU: RVC-UNI-KCX8
- 1 Year Warranty
Available Options

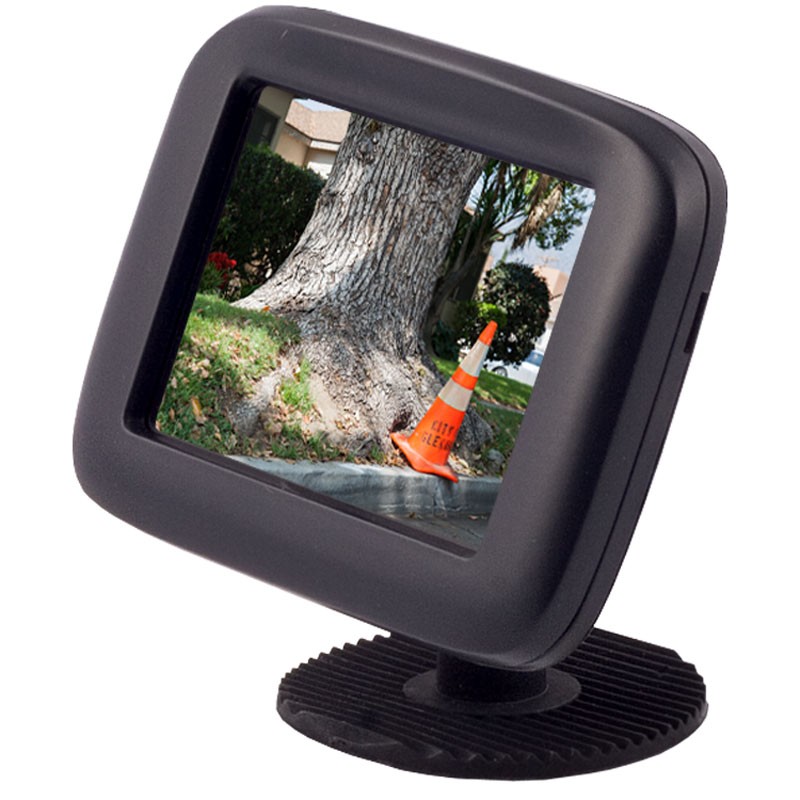

3.5" Dash Monitor
| 5" Dash Monitor
|
4.3" Mirror Monitor

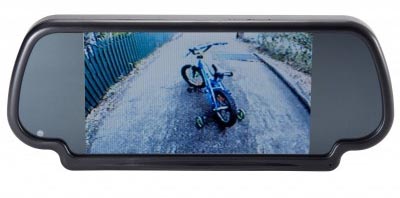

| 7" Mirror Monitor
|

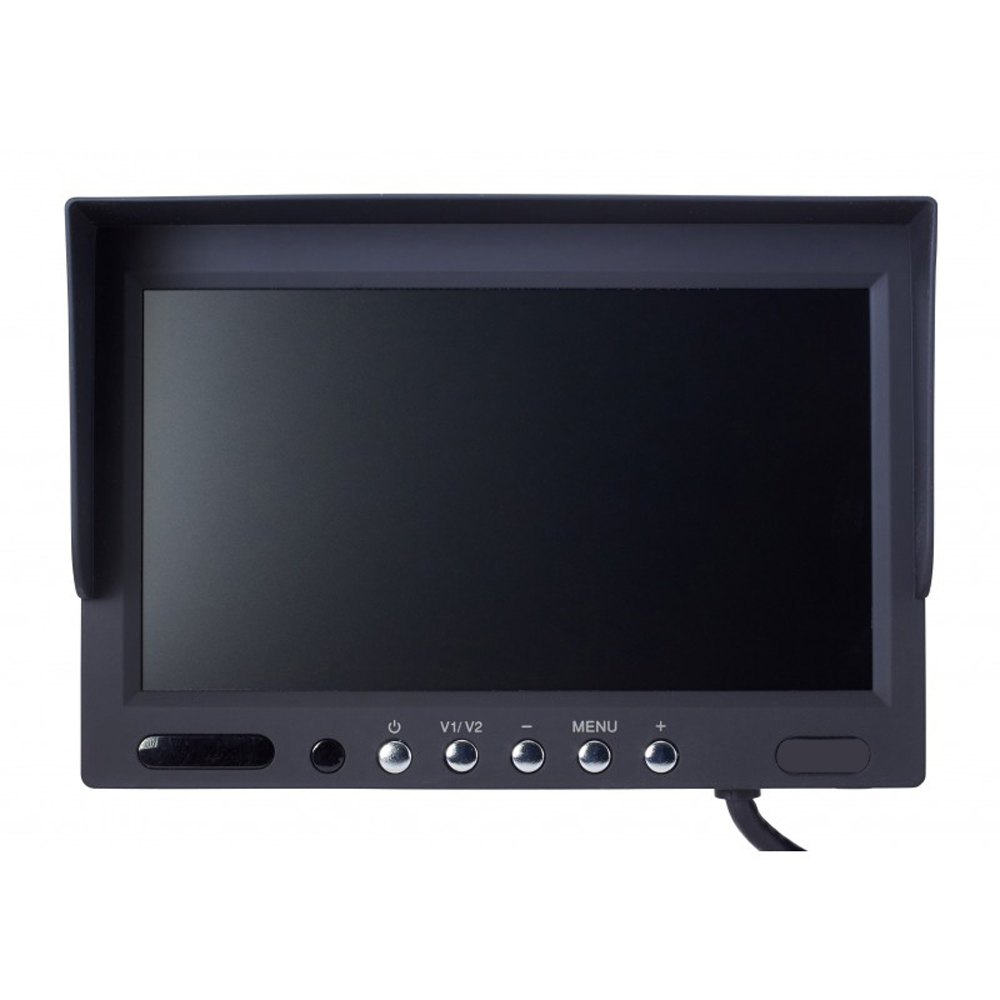

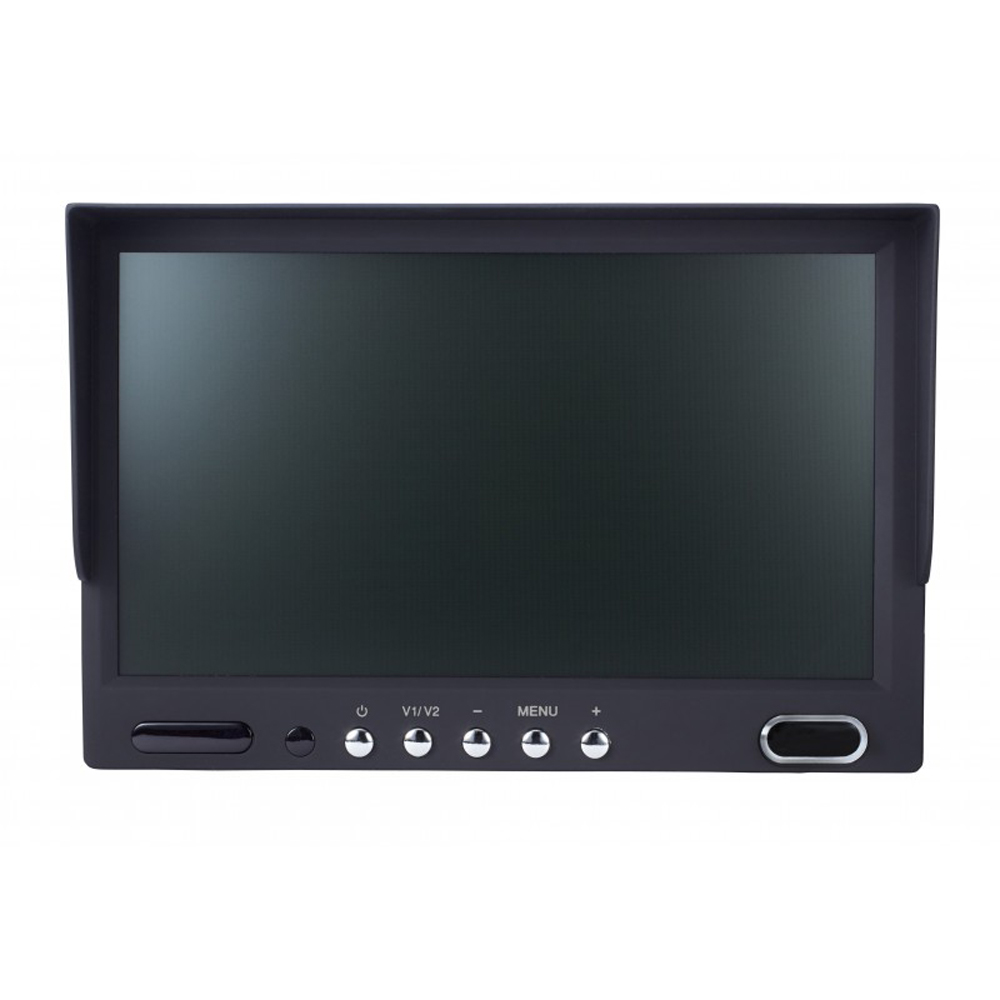

6" Dash Mounted Monitor 7" Dash Mounted Monitor
Optional Installation Package
You are being offered an Installation Service at an additional cost. If you select the installation option, the purchased product will be professionally Installed at your home or workplace by our network of Qualified & Accredited Installation Engineers. You will be contacted by a member of our installation booking team after you have placed an order (Within 72 hours). To be sure we cover your area, please contact us before selecting this option.
We also offer Discounted competitive rates if Installations are carried out at our Workshop in Blackburn. Please contact us for a competitive quote.
Please choose the correct option from the list
Commercial vehicles & Motorhomes - Vans (Small & large), Mini Vans, Taxis, Buses, Mini Buses, Trucks, HGV's, Motorhomes, Campervans
Non- Commercial - Standard Sized 2/4/5 Door Family cars (not used for commercial purposes)
Please note: Incorrect selection will be charged the difference before the install takes place. If you are unsure of the correct selection, please contact us first.

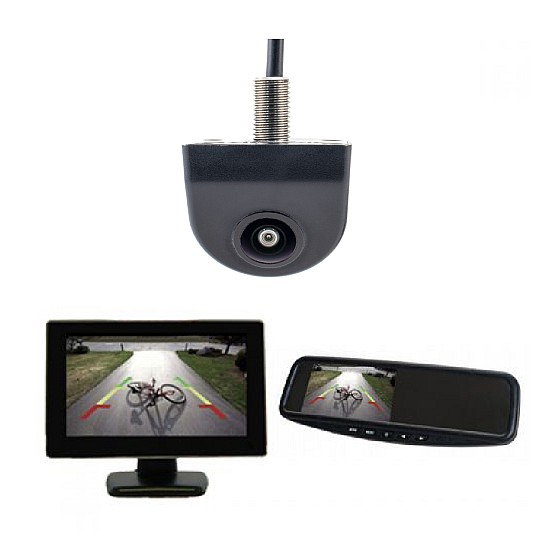

Universal Reversing Camera Package
This universal reversing camera kit is suitable for most vehicles. The kit offers a choice of monitor options to suit your requirement. There are two Monitor options to select from:
- 5" Dash Mounted Monitor
- 4.3" Clip-On Mirror Monitor

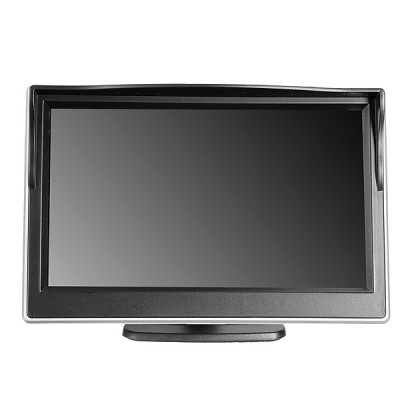

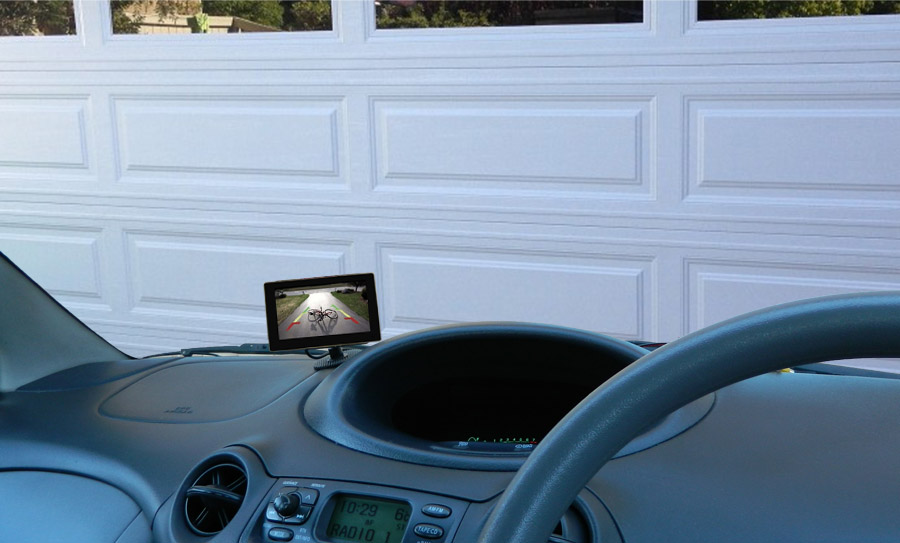

5" Dash Mounted Monitor (default option included in the screen price) - A discreet monitor screen which sits on the dashboard

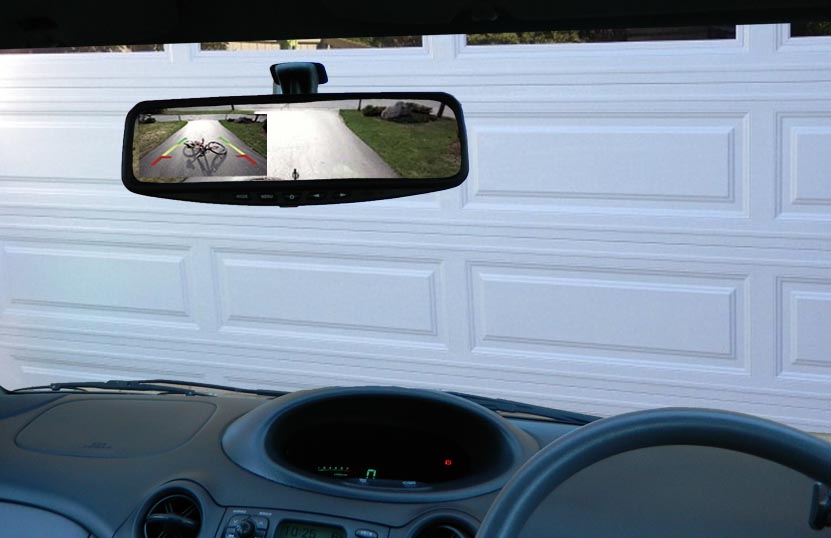

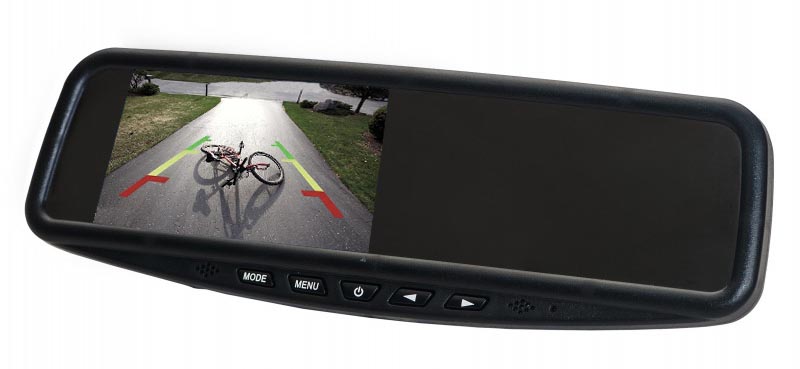

4.3" Clip-on Rear view Mirror Monitor (Optional upgrade) - Monitor screen which simply clips over your existing rear view mirror. Continues to serve as a rear view mirror until the reversing camera is engaged, at which point a reversing image is superimposed onto the mirror surface.
Both of these options provide a high quality display with a clear & crisp video image.
This universal reversing camera kit solution is suitable for most vehicle brands, such as the following but not limited to
Audi, Alfa romeo, Aston Martin, BMW, Citroen, Crysler, Dacia, DS, Fiat, Ford, Honda, Hyundai, Jaguar, Land Rover, Kia, Mazda, Mercedes-Benz, Nissan, Peugeot, Porsche, Renault, Toyota, Vauxhall, Volkswagen, Volvo
Please select your Monitor screen from the Recommended Add-Ons list above.
Mirror Monitor | Dash Monitor |
illustration purpose only |
illustration purpose only |
|
|
Benifits Of Having A Reverse Camera For Cars
- Guidelines can be really helpful so the driver can accurately estimate the width of the vehicle parking space whilst reversing.
- The driver can see any obstructions behind the vehicle during the reversing manoeuvre
- The driver can see any any blindspots which are not visible to the driver
- Greater vehicle safety management during reversing manoeuvres
- Makes reversing much safer and more convenient
Bolt-On Wide Angle Camera
The KCX8-ECO miniature 155° wide-angle substructure NTSC camera is a rear view camera with unlimited areas of application in the car, bus, mobile home, truck or trailer. The matt black plastic housing is particularly weatherproof, IP69K waterproof and very sturdy. Optionally, two different auxiliary lines (narrow / wide) can be faded into the video signal, which enables the viewer to park better. The delivery is complete with an 8 meter extension cable with high-quality copper strands.This discreet camera provides guidelines. The high quality camera provides a clear & crisp image on the chosen monitor screen to aid you with reversing and parking.
Specifications
- 2 different auxiliary lines: switched off at the factory (can be switched on)
- black matt plastic housing with stainless steel fastening
- Mirrored image reproduction (adjustable)
- Image display rotated 180° (adjustable)
- Image sensor type 1/4 '' 1233 HD Color CMOS Low Light Sensor
- NTSC video signal output
- Resolution 960H480V pixels
- DIN protection class IP69K
- 800 TV lines
- Exposure 60 fileds per seconds
- Signal to noise ratio >46dB
- Dynamic Range >74dB
- Light sensitivity <0.01 Lux / F1.2
- Output signal 1.0Vp-p, 75 OHM
- Automatic white balance
- Automatic video level adjustment
- Operating voltage 12 volts DC
- Power consumption 25-55mA
- Diagonal viewing angle 188°
- Horizontal viewing angle 155°
- Vertical viewing angle 113°
- Camera dimensions 25.8 x 28.2mm and 20.8mm high
- 8mm mounting hole
- Working temperature -40°C to +75°C
- Storage temperature -60°C to +105°C
- CE certified
*Installation is optional via the dropdown
NOTE: A reversing camera kit is ONLY a Parking Aid and should not be relied on solely. Please check your surroundings at all times before carrying out a Reversing Manoeuvre. Where Guide lines are included, the guide lines are generic to all vehicles and hence fixed width and not adjustable to the width of the vehicle.
NOTE: You will have to check if the mirror monitor will clip onto you existing rear view mirror. The image below will help you. (if you are unsure please send us a picture and we will let you know if its compatible)
If you are unsure about the suitability of this product please contact us via the ask a question link at the top of this page or telephone us and we will gladly assist you.
Factory fitted In-car Infotainment systems and their wiring can be complex, so we always recommend that you have your installation carried out by a qualified installer. If you wish, Car Communications can arrange for your RVC Kit to be installed at an address of your choice anywhere in the UK. Please select from addons options above before adding the purchase to your cart. During the checkout process you will be asked for your preferred date(s) and time for the installation.
For added peace of mind, our products can be professionally installed at your home or workplace anywhere in the UK by our qualified and accredited network of engineers.
