Rear View Camera Kit

 Peugeot Expert with Pro Touch Screen

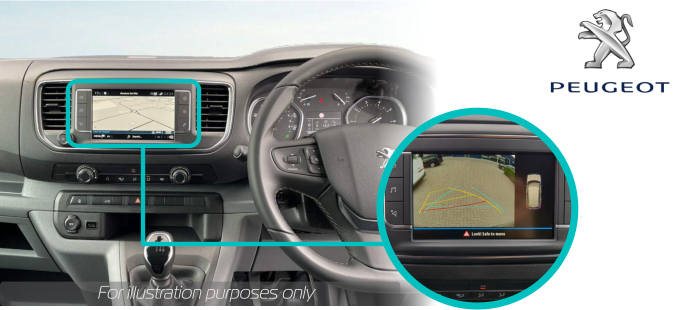

An integrated high quality rear view camera kit, designed to work with the Peugeot Expert's factory fitted radio system. A Number Plate camera that will provides guidelines and the high quality camera provides a clear & crisp image on the infotainment screen to aid you with reversing and parking.

This kit has been specially designed for the Peugeot Expert and has been perfected to work fully integrated with the factory fitted screen. Our kit maintains all of the factory options as standard. No programming or coding required after the kit has been installed, as we have had the kits manufactured in such a way that all the software is built into it.

This reversing camera solution provides Dynamic (moving) guidelines in vehicles fitted with automatic transmission.

NOTE: Moving lines are only available on automatic vehicles

Rear View Camera Option

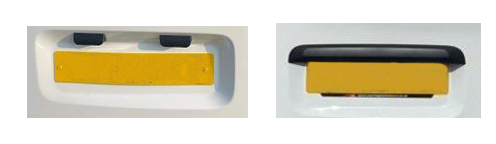

This Reversing camera kit solution for the Peugeot Expert can be paired with either a Number Plate surround camera or a flush fit camera.  The Option can be selected from the Recommended Add-Ons section above. The type of camera is dependent on the type of number plate light surround fitted to the vehicle. It is either two individual number plate lights or a single number plate light bar. See below for example.

NOTE: Depending on which number plate lights your vehicle has, please select the right camera type. If there is no bar above your number plate please select number plate camera and if there is a bar please select the Flush Fit camera in the Recommended Add-Ons section above.

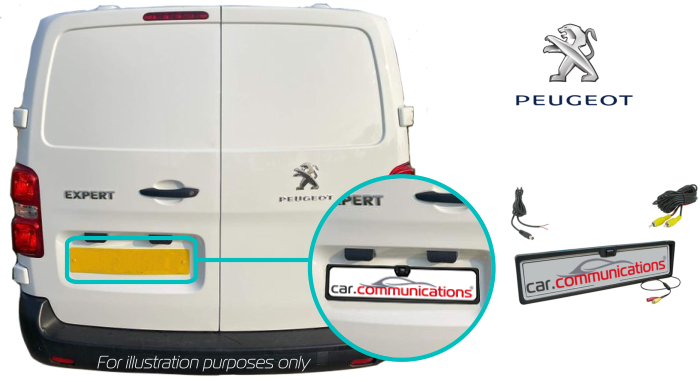

Number Plate Camera Option

The high quality CMOS lens chip set, is a number plate case with a camera fitted on, your current number plate will be held in the case so there will be no bulky and out of place camera fitted to your vehicle. The CMOS chip set will give you a clear and sharp picture in low light conditions, also the camera will work perfectly well in rainy conditions.

Number Plate Camera Specifications

• IP Rating: Ip66
• Image Sensor: 1/4 Colour CMOS
• TV System: NTSC
• Effective Pixels: 656(H) x 492(V)
• Resolution: 420
• Lens Angle: 170
• Illumination: 0.04Lux/F1.2
• Power Supply: DC12V
• Dimension - 550mm x 140mm

Flush Fit Camera Option

The high quality Sony lens with CMOS chip set, is drilled in just above the number plate which gives a discrete look, just like it has been factory fitted. The CMOS chip set will give you a clear and sharp picture in low light conditions, also the camera will work perfectly well in rainy conditions.

Flush Fit Camera Specifications

• Guide Lines: optional
• Sensor type:1/4'' Color CMOS (PC7070)
• Resolution in lines: 420 TVL
• Resolution in pixels: 640 x 480
• Picture: NTSC
• Minimum Illumination: 0.5Lux
• Camera Tilt to Installtion Surface: 50º
• Diagonal Angle: 170º
• Video Output 1.0Vp-p, 75 Ohms
• Operating voltage: 13.8 volts DC
• Power Consumption: 70mA max
• Dynamic Range: >64db
• Protection Category: IP66
• Working temperature: -40 ° C to + 80 ° C
• Supplied Camera Extension Cable Length: 7m
• Dimensions (HxDxW): 30 x 29 x 24mm
• Mounting: Stainless steel
• Drill Bit Dimensions required: 21mm (not included)
• E-approval: E13-10R00-10R02-3857 -00
• CE approval: 960323L14,960323L13

Benifits of having a reversing rear view camera kit in your Peugeot Expert

• Guidelines can be really helpful so the driver can accurately estimate the width of the vehicle parking space whilst reversing.
• The driver can see any obstructions behind the vehicle during the reversing manoeuvre
• The driver can see any any blindspots which are not visible to the driver
• Greater vehicle safety management during reversing manoeuvres
• Makes reversing much safer and more convenient

*Installation is optional via the dropdown

Refer to the compatibility section to check your vehicle variant is supported.

NOTE: A reversing camera kit is ONLY a Parking Aid and should not be relied on solely. Please check your surroundings at all times before carrying out a Reversing Manoeuvre. Where Guide lines are included, the guide lines are generic to all vehicles and hence fixed width and not adjustable to the width of the vehicle.
