Renault Megane Reversing Rear View Camera Kit

R-link 2 7inch & 8.7inch Display

A high-quality rear view reversing camera kit solution, designed to intergrate with the Renault Megane's factory fitted R-Link 2 infotainment head unit. This retrofit solution is compatible with vehicles manufactured between 2016 to 2020 and fitted with the R-Link 2 7" & 8.7" screens. The solution includes a discreet camera, and the solution provides fixed guidelines.The high quality camera provides a clear & crisp image on the infotainment screen to aid you with reversing and parking.

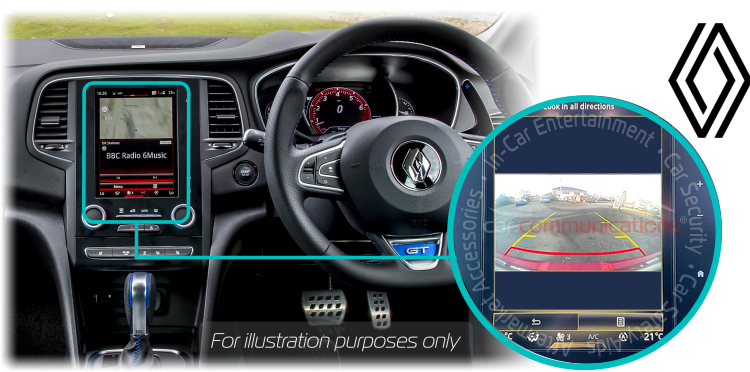

R-Link 2 8.7 inch Screen

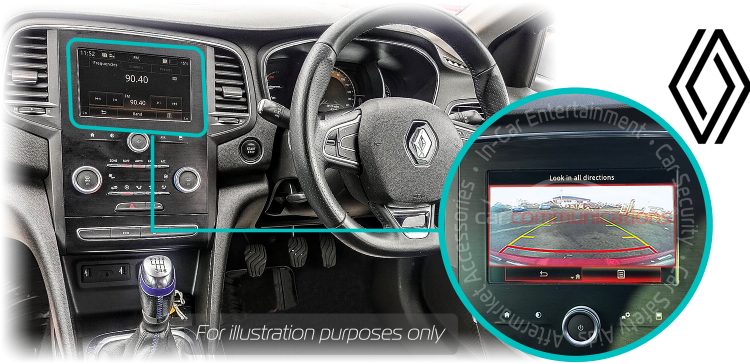

R-Link 2 7 inch Screen

Benefits of having a reverse camera in your Renault Megane

• Guidelines can be really helpful so the driver can accurately estimate the width of the vehicle parking space whilst reversing.
• The driver can see any obstructions behind the vehicle during the reversing manoeuvre
• The driver can see any any blindspots which are not visible to the driver
• Greater vehicle safety management during reversing manoeuvres
• Makes reversing much safer and more convenient

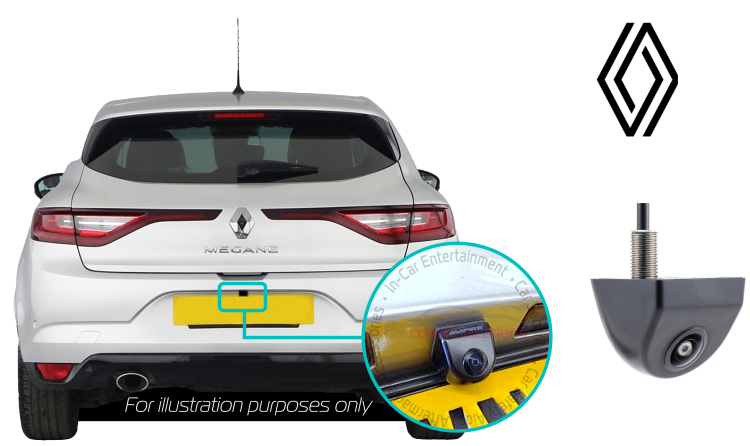

Discreet Camera

This rear view reversing camera kit, will fully integrate with the Renault Megane factory fitted infotainment system. This aftermarket reversing camera kit solution maintains  the factory options as standard.

Camera Specifications

•  2 different auxiliary lines: switched off at the factory (can be switched on)
•  black matt plastic housing with stainless steel fastening
•  Mirrored image reproduction (adjustable)
•  Image display rotated 180° (adjustable)
•  Image sensor type 1/4 '' 1233 HD Color CMOS Low Light Sensor
•  NTSC video signal output
•  Resolution 960H480V pixels
•  DIN protection class IP69K
•  800 TV lines
•  Exposure 60 fileds per seconds
•  Signal to noise ratio >46dB
•  Dynamic Range >74dB
•  Light sensitivity <0.01 Lux / F1.2
•  Output signal 1.0Vp-p, 75 OHM
•  Automatic white balance
•  Automatic video level adjustment
•  Operating voltage 12 volts DC
•  Power consumption 25-55mA
•  Diagonal viewing angle 188°
•  Horizontal viewing angle 155°
•  Vertical viewing angle 113°
•  Camera dimensions 25.8 x 28.2mm and 20.8mm high
•  8mm mounting hole
•  Working temperature -40°C to +75°C
•  Storage temperature -60°C to +105°C
•  E certified

*Installation is optional via the dropdown

Refer to the compatibility section to check your vehicle variant is supported.

NOTE: A reversing camera kit is ONLY a Parking Aid and should not be relied on solely. Please check your surroundings at all times before carrying out a Reversing Manoeuvre. Where Guide lines are included, the guide lines are generic to all vehicles and hence fixed width and not adjustable to the width of the vehicle.
