Rear View Camera Kit

Renault Megane with R-Link Radio

An integrated high quality rear view camera kit, designed to work with your factory R-Link system. A discreet wedge camera that will give you guidelines and with its unique CMOS lens, the resulting image on the screen is fantastic.

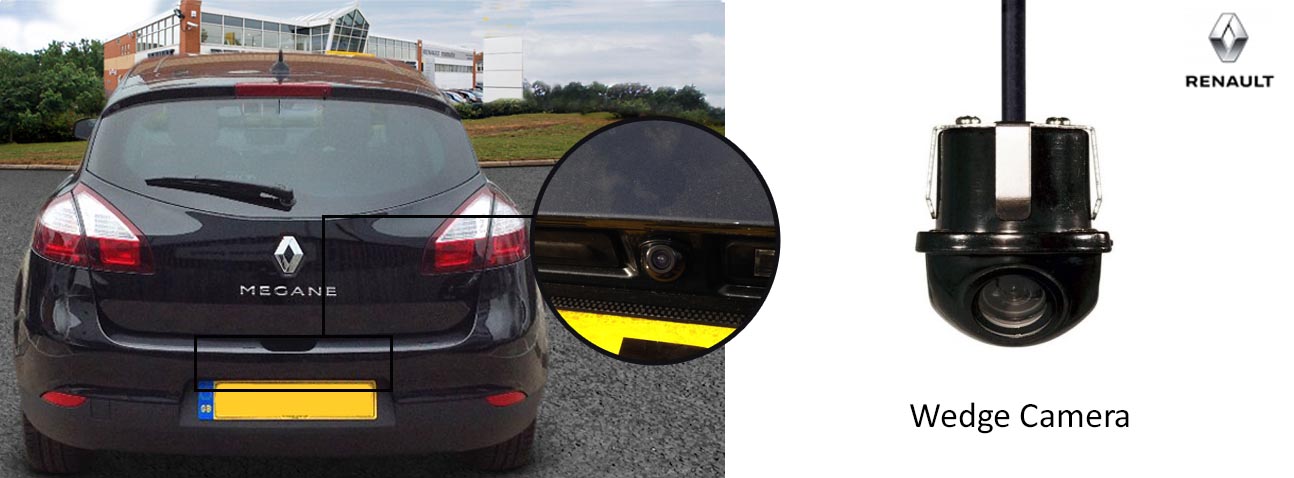

Reverse Camera

The high quality Sony lens with CMOS chip set, is drilled in just above the number plate which gives a discrete look, just like it has been factory fitted. The CMOS chip set will give you a clear and sharp picture in low light conditions, also the camera will work perfectly well in rainy conditions.

Specifications

• Sensor type:1/4'' Colour CMOS (PC7070)
• Resolution in lines: 420 TVL
• Resolution in pixels: 640 x 480
• Picture: NTSC
• Minimum Illumination: 0.5Lux
• Camera Tilt to Installation Surface: 50º
• Diagonal Angle: 170º
• Video Output 1.0Vp-p, 75 Ohms
• Operating voltage: 13.8 volts DC
• Power Consumption: 70mA max
• Dynamic Range: >64db
• Protection Category: IP66
• Working temperature: -40 ° C to + 80 ° C
• Supplied Camera Extension Cable Length: 7m
• Dimensions (HxDxW): 30 x 29 x 24mm
• Mounting: Stainless steel
• Drill Bit Dimensions required: 21mm (not included)

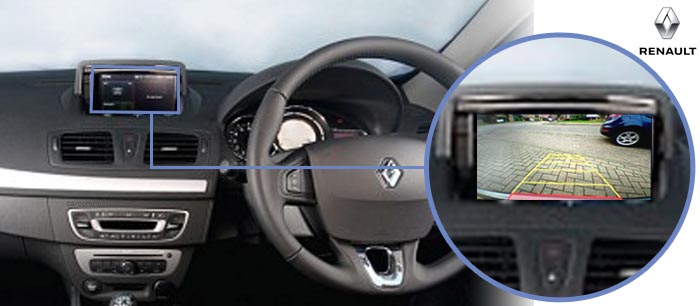

This kit has been specially designed for the Renault Magane R-Link Stereo and has been perfected to work integrated with the factory fitted screen.

NOTICE: The interface has to be installed in the monitor panel (the cover needs to be opened temporarily)

Benefits of having a reversing rear view camera kit

• Guidelines can be really helpful so the driver knows exactly the width of the vehicle to park.
• Clearly show the ground behind the car, of which may not normally be visible from the driver’s view (blind spots)
• Greater vehicle safety management
• Makes driving much more convenient

*Installation is optional via the dropdown

Refer to the compatibility section to check your vehicle variant is supported.

NOTE: A reversing camera kit is ONLY a Parking Aid and should not be relied on solely. Please check your surroundings at all times before carrying out a Reversing Manoeuvre. Where Guide lines are included, the guide lines are generic to all vehicles and hence fixed width and not adjustable to the width of the vehicle.
