TOYOTA AYGO Reversing Camera Kit

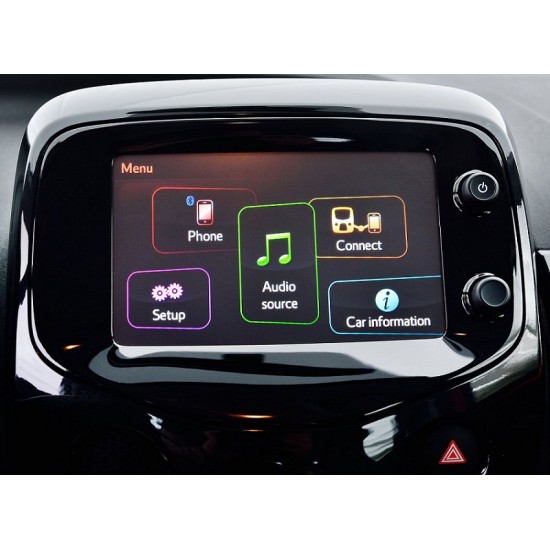

Rear View Camera Kit for TOYOTA AYGO with X-Touch / X-Touch NAV.

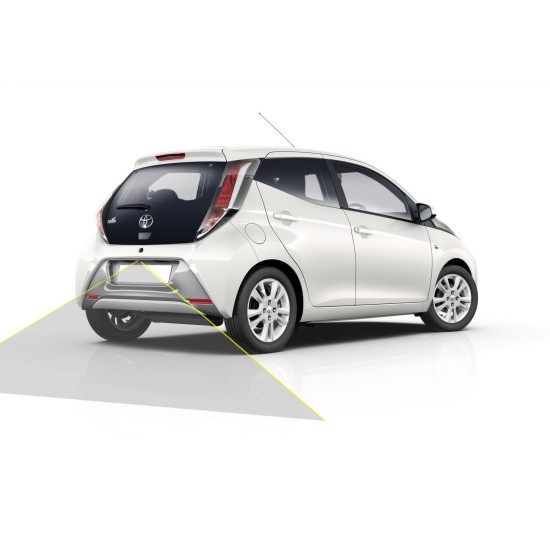

An integrated high-quality rear view camera kit, designed to work with your factory X-Touch / X-Touch Navigation system.  A discreet rear view camera is fitted near the number plate lights on the rear bumper and provides a clear & crisp image on the infotainment screen to aid you with reversing and parking.

This kit has been specially designed with our manufacturer and has been perfected to work integrated with the X-Touch / X-Touch NAV system. No programming or coding required after the kit has been installed, as we have had the kits manufactured in such a way that this eradicates the need of added expense to the end user.

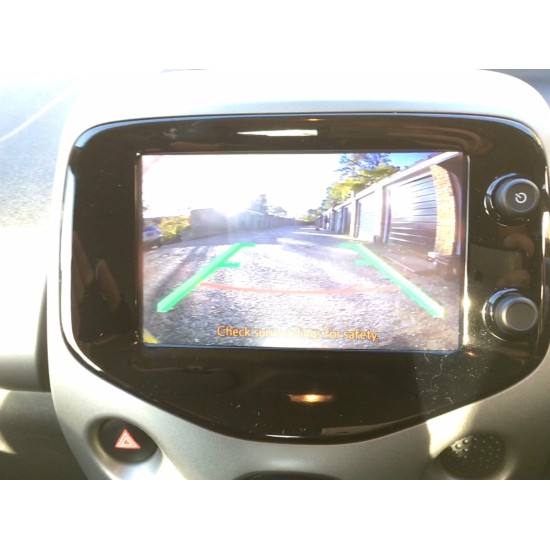

Image of the Rear View Camera will automatically be displayed on the screen when reversing. All the original functions of the Stereo will continue to operate as normal.



Parts List

• Reversing Camera
• Camera Wiring Loom
• Camera Extension Lead

Camera Specification

• 2 different auxiliary lines: switched off at the factory (can be switched on)
• Black matt plastic housing with stainless steel fastening
• Mirrored image reproduction (adjustable)
• Image display rotated 180° (adjustable)
• Image sensor type 1/4 '' 1233 HD Colour CMOS Low Light Sensor
• NTSC video signal output
• Resolution 960H480V pixels
• DIN protection class IP69K
• 800 TV lines
• Exposure 60 fields per seconds
• Signal to noise ratio >46dB
• Dynamic Range >74dB
• Light sensitivity <0.01 Lux / F1.2
• Output signal 1.0Vp-p, 75 OHM
• Automatic white balance
• Automatic video level adjustment
• Operating voltage 12 volts DC
• Power consumption 25-55mA
• Diagonal viewing angle 140°
• Horizontal viewing angle 106°
• Vertical viewing angle 78°
• Camera dimensions 25.8 x 28.2mm and 20.8mm high
• 8mm mounting hole
• Working temperature -40°C to +75°C
• Storage temperature -60°C to +105°C
• CE certified

** Manufacturing specifications are subject to change without prior notification

*Installation is optional via the dropdown

Refer to the compatibility section to check your vehicle variant is supported.



NOTE: A reversing camera kit is ONLY a Parking Aid and should not be relied on solely. Please check your surroundings at all times before carrying out a Reversing Manoeuvre. Where Guide lines are included, the guide lines are generic to all vehicles and hence fixed width and not adjustable to the width of the vehicle.
