Rear View Camera Kit for Vauxhall Astra

R4.0 Onstar IntelliLink 7" Screen

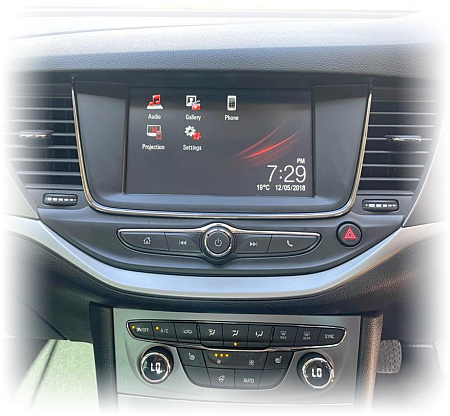

An integrated high quality reversing camera kit solution, designed to fully integrate and work with Vauxhall Astra cars factory fitted with 7" R4.0 Onstar IntelliLink Touch Screen infotainment system. This reversing camera kit provides guidelines. The guidelines allow for more accurate and safer reversing manoeuvres. The kit includes a bolt-on reversing camera which provides a sharp and clear image, even in poor weather conditions. Also suitable for the Opel Astra with R4.0 Onstar IntelliLink system.

Reversing Camera

The kit includes a high quality Bolt-on reversing camera, which is drilled in and fitted just above the number plate. Once installed, the camera has a discrete factory fitted look. The camera provides a clear and sharp image even in low light conditions, also the camera will work perfectly well in rainy conditions.

Specifications

• 2 different auxiliary lines: switched off at the factory (can be switched on)
•  black matt plastic housing with stainless steel fastening
•  Mirrored image reproduction (adjustable)
•  Image display rotated 180° (adjustable)
•  Image sensor type 1/4 '' 1233 HD Colour CMOS Low Light Sensor
•  NTSC video signal output
•  Resolution 960H480V pixels
•  DIN protection class IP69K
•  800 TV lines
•  Exposure 60 fields per seconds
•  Signal to noise ratio >46dB
•  Dynamic Range >74dB
•  Light sensitivity <0.01 Lux / F1.2
•  Output signal 1.0Vp-p, 75 OHM
•  Automatic white balance
•  Automatic video level adjustment
•  Operating voltage 12 volts DC
•  Power consumption 25-55mA
•  Diagonal viewing angle 188°
•  Horizontal viewing angle 155°
•  Vertical viewing angle 113°
•  Camera dimensions 25.8 x 28.2mm and 20.8mm high
•  8mm mounting hole
•  Working temperature -40°C to +75°C
•  Storage temperature -60°C to +105°C
•  CE certified

^{Due to constant technological changes, Specification are subject to change without notice}

This kit has been specially designed for the Vauxhall Astra with R4.0 Onstar IntelliLink system and has been perfected to integrate the camera image on to the factory fitted screen.  No programming or coding is required after the kit has been installed, as we have had the kits manufactured in such a way that all the software is built into it. Also suitable for the Opel Astra with R4.0 Onstar IntelliLink system.

Benefits of having a reverse camera in your Vauxhall Astra

• Guidelines can be really helpful so the driver can accurately estimate the width of the vehicle parking space whilst reversing.
• The driver can see any obstructions behind the vehicle during the reversing manoeuvre
• The driver can see any any blindspots which are not visible to the driver
• Greater vehicle safety management during reversing manoeuvres
• Makes reversing much safer and more convenient

Scope of delivery

• High quality CMOS Camera
• Camera wiring
• Video Interface Kit

*Installation is optional via the dropdown

Refer to the compatibility section to check your vehicle variant is supported.

NOTE: A reversing camera kit is ONLY a Parking Aid and should not be relied on solely. Please check your surroundings at all times before carrying out a Reversing Manoeuvre. Where Guide lines are included, the guide lines are generic to all vehicles and hence fixed width and not adjustable to the width of the vehicle.
