Heavy Duty External Camera

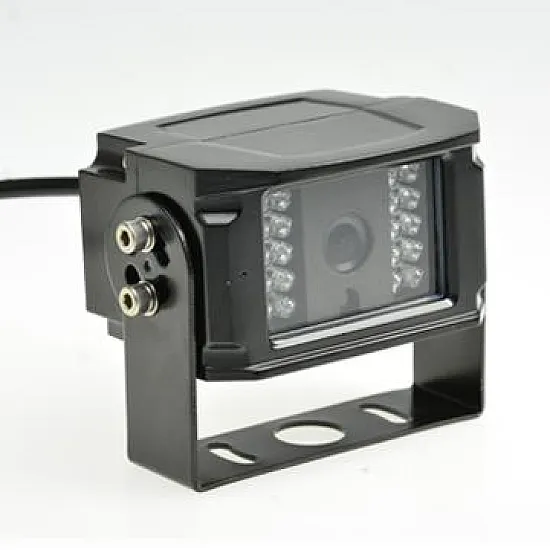

CC-BR16RVC Heavy Duty external surface mounted rear view Camera with Infra-Red LED for Night Vision capabilities. It features a waterproof rating of IP69K and also has a heating function. Suitable for all vehicle types, but recommended for commercial vehicles.

Features

• Camera
  • Sensor: 1/3 CMOS
  • TV System : NTSC/PAL
  • Camera Ir LED: 20pcs IR lamp with excellent night vision
  • Min IIIumination: 0.1Lux@(F1.2,AGC ON);
  • Electronic Shutter: Auto:PAL 1/50s(NTSC 1/60s)~1/100,000s
  • Focus: 2.8mm
  • Lens Interface: M12
  • F.O.V: 120° (D), 95° (H), 70°（V）
  • Backlight Compensation: Auto
  • Resolution: 700TVL (AHD 720P)
  • Signal to Noise ratio: Better than 48dB
• Interface
  • Connect: 4 Pin Aviation Female Interface
  • Video Output: 1Vp-p Composite Output(75Ω)
  • Audio Input: Options
  • Audio Output: Options
• General:
  • Material: Metal
  • Operating Temperature: -30℃~70℃
  • Usage: For passenger vehicles
  • Operating Voltage: DC9-36V±10%(From Reversing Monitor DC12V)
  • Power
  • Waterproof: IP69K
  • External Dimensions: 92.06*47.8mm *72.2（L*W*H)

NOTE: A reversing camera kit is ONLY a Parking Aid and should not be relied on solely. Please check your surroundings at all times before carrying out a Reversing Manoeuvre. Where Guide lines are included, the guide lines are generic to all vehicles and hence fixed width and not adjustable to the width of the vehicle.
