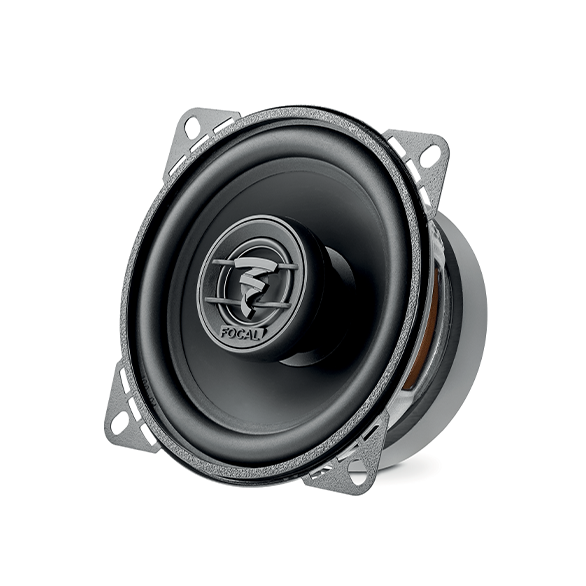

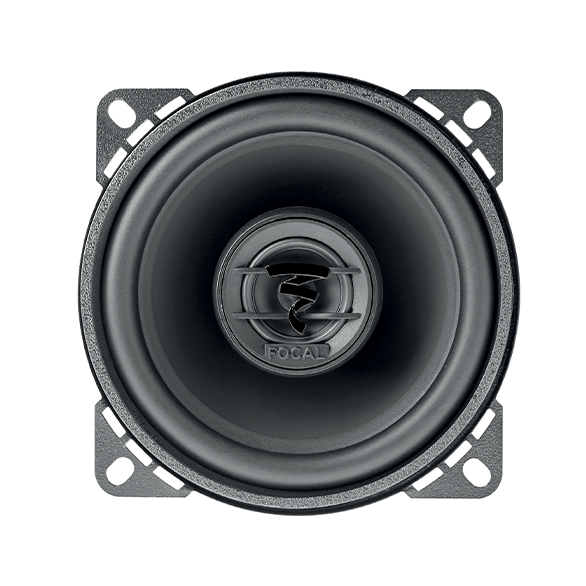

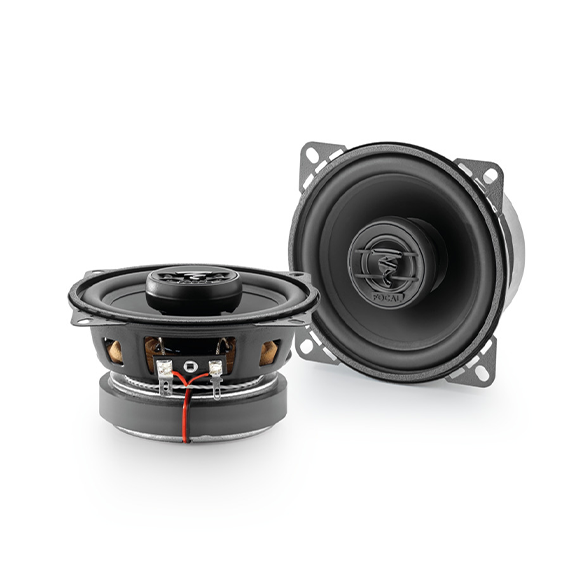

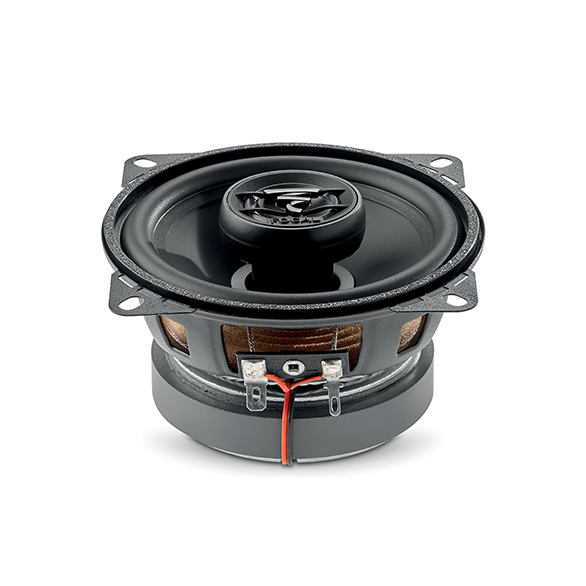

Focal 2-Way 4" Coaxial Speaker Kit - Auditor 100 ACX
Auditor Range
The Auditor ACX 100 coaxial speaker kit puts Focal sound in your car with no fuss. Measuring 4" (100mm) in diameter and with 60W rated power, this kit can easily be fitted for an effective, responsive audio system.
The 2-way coaxial kit ACX 100 delivers neutral and dynamic sound, precise treble and an improved soundstage thanks to its 4" (10cm) woofer with polypropylene cone and its adjustable, inverted dome mylar tweeter.
ACX 100 can be linked with other electronics or directly connected to the vehicle’s original amplifier to enhance your in-car listening experience. Its high sensitivity guarantees an unrivalled level of performance in its category. It is perfect for a début Focal system and/or for improving your original sound system.
Key Points
- Developed in France by Focal
- Easy to amplify loudspeakers
- Black lacquered finish on the tweeter
- Exclusive Focal technologies
- Can be surface mounted or fully integrated
FOCAL TECHNOLOGIES
All Auditor products benefit from Focal know-how and expertise: the mylar inverted dome tweeter – a strong marker of the Focal DNA – for precise treble and an improved soundstage; polypropylene cone for a neutral and dynamic sound; butyl surround for impressive resistance; ferrite magnet.
EASY AND MULTIPLE MOUNTING OPTIONS

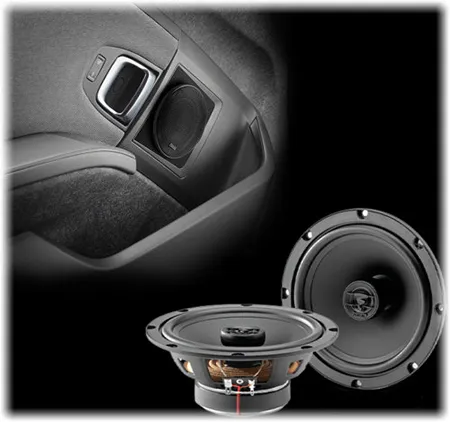

Very compact, the woofers can be either surface-mounted or installed flush in the vehicle's original locations.
DESIGN

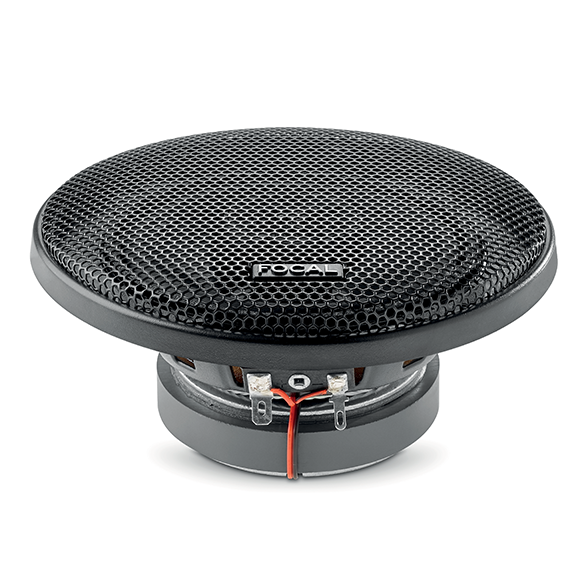

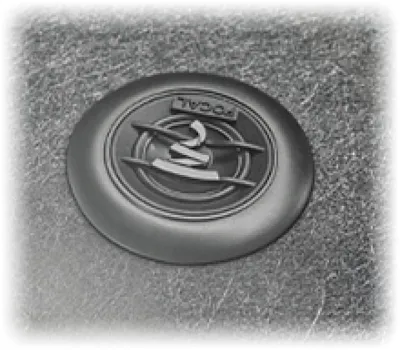

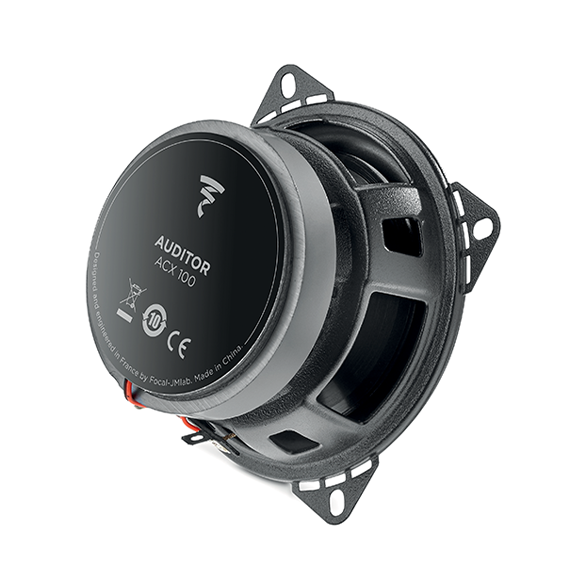

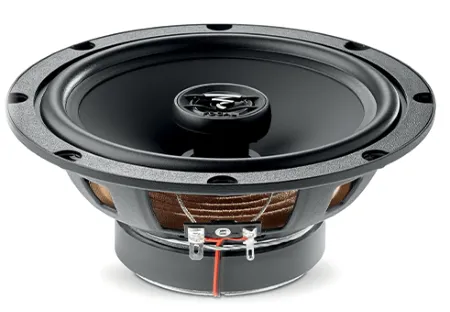

The steel basket of the speaker driver is rigid and durable. The flat grilles supplied, in ABS and Mesh, are just as good-looking as they are inherent in the kit's performance. Finally, the black lacquer finish on the tweeter means it assimilates seamlessly into the cabin of all modern vehicles.
Technical Characteristics
- Type 2-way coaxial kit
- Woofer 100mm
- Depth 48.2mm
- Cone Polypropylene
- Maximum power 60W
- Nominal power 30W RMS
- Sensitivity (2.83V/1m) 88dB
- Frequency response 80Hz - 21kHz
- Impedance 4 Ω
- Voice-coil diameter 25mm
- Magnet Ferrite
- Suspension Butyl
- Tweeter Inverted dome tweeter
- Crossover Integrated
Specifications - ACX 100 Woofers 4" (100mm)
- Nominal power 30W
- Maximum power 60W
- Sensitivity 88dB
- Nom. impedance 4 Ω
- Frequency response 80Hz-21kHz
- Cone Polypropylene
- Surround Butyl
- VC diameter 25mm 1"
- Net weight 450g
Parameters - ACX 100 Woofers 4" (100mm)
- Rdc 3.3 Ω
- Fs 95Hz
- Mms 6.2g
- Cms 0.5mm/N
- Vas 2 l
- Qts 0.7
- Qes 0.75
- Qms 7.5
- Bxl 3.8N/A
- Sd 50cm
