Focal Car Speakers 2-Way 13cm Coaxial Kit - Auditor ACX 130
- Stock Availability: Pre-Order - Contact Us
- Item Condition : New
- Model: ACX130
- SKU: ACX130
- 1 Year Warranty
Focal 2-Way 5" Coaxial Speaker Kit - Auditor ACX 130
Auditor Range
The Auditor ACX 130 coaxial speaker kit puts Focal sound in your car with no fuss. Measuring 5" (130mm) in diameter and with 100W rated power, this kit can easily be fitted for an effective, responsive audio system.
The 2-way coaxial kit ACX 130 delivers neutral and dynamic sound, precise treble and an improved soundstage thanks to its 5-inch (13cm) woofer with polypropylene cone and its adjustable, inverted dome mylar tweeter.
ACX 130 can be linked with other electronics or directly connected to the vehicle’s original amplifier to enhance your in-car listening experience. Its high sensitivity guarantees an unrivalled level of performance in its category. It is perfect for a début Focal system and/or for improving your original sound system.
Key Points
- Developed in France by Focal
- Easy to amplify loudspeakers
- Black lacquered finish on the tweeter
- Exclusive Focal technologies
- Can be surface mounted or fully integrated
FOCAL TECHNOLOGIES
All Auditor products benefit from Focal know-how and expertise: the mylar inverted dome tweeter – a strong marker of the Focal DNA – for precise treble and an improved soundstage; polypropylene cone for a neutral and dynamic sound; butyl surround for impressive resistance; ferrite magnet.
EASY AND MULTIPLE MOUNTING OPTIONS
Very compact, the woofers can be either surface-mounted or installed flush in the vehicle's original locations.
DESIGN

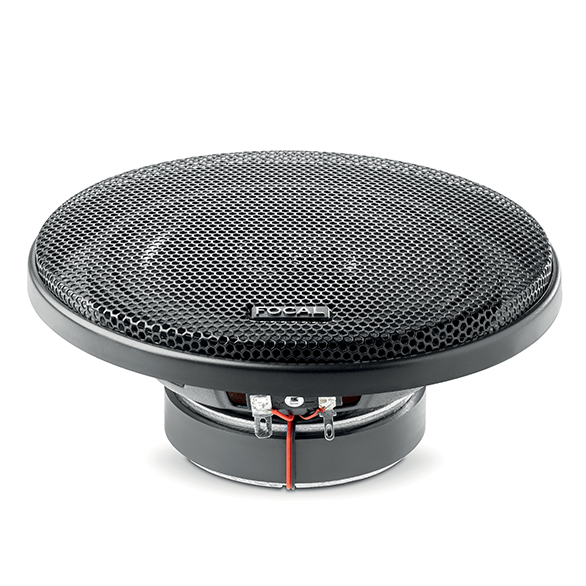

The steel basket of the speaker driver is rigid and durable. The flat grilles supplied, in ABS and Mesh, are just as good-looking as they are inherent in the kit's performance. Finally, the black lacquer finish on the tweeter means it assimilates seamlessly into the cabin of all modern vehicles.
Technical Characteristics
- Type 2-way coaxial kit
- Woofer 130mm
- Depth 55mm
- Cone Polypropylene
- Maximum power 100W
- Nominal power 50W RMS
- Sensitivity (2.83V/1m) 90dB
- Frequency response 65Hz - 21kHz
- Impedance 4 Ω
- Voice-coil diameter 25mm
- Magnet Ferrite
- Suspension Butyl
- Tweeter Inverted dome tweeter
- Crossover Integrated
Specifications - ACX 130 Woofers 5" (130mm)
- Nominal power 50W
- Maximum power 100W
- Sensitivity 90dB
- Nom. impedance 4 Ω
- Frequency response 65Hz-21kHz
- Cone Polypropylene
- Surround Butyl
- VC diameter 25mm 1"
- Net weight 750g
Parameters - ACX 130 Woofers 5" (130mm)
- Rdc 3.3 Ω
- Fs 90Hz
- Mms 10g
- Cms 0.3mm/N
- Vas 2.5 l
- Qts 0.8
- Qes 0.93
- Qms 7
- Bxl 4.5 N/A
- Sd 78cm
Factory fitted In-car Infotainment systems and their wiring can be complex, so we always recommend that you have your installation carried out by a qualified installer. If you wish, Car Communications can arrange for your Car Audio Kit to be installed at an address of your choice anywhere in the UK. Please select from addons options above before adding the purchase to your cart. During the checkout process you will be asked for your preferred date(s) and time for the installation.
For added peace of mind, our products can be professionally installed at your home or workplace anywhere in the UK by our qualified and accredited network of engineers.
Refer to maufacturer's fitting instructions.
