Ford C-Max (2010 Onwards) Kuga (2012 Onwards) Double DIN Car Stereo Fitting Kit (WITH PDC RETENTION)

Complete stereo upgrade fitting kit to install a Double DIN aftermarket car stereo, retain the use of the steering wheel audio controls and parking sensors tones (If equipped) in select Ford C-MAX (2010 onwards) and Ford Kuga (2012 onwards) car models.

The interface in this fitting kit also maintains date, time & temperature display and retains the OEM parking sensor audio by using a new parking buzzer. Also includes CAN ignition and speed pulse for Navigation systems

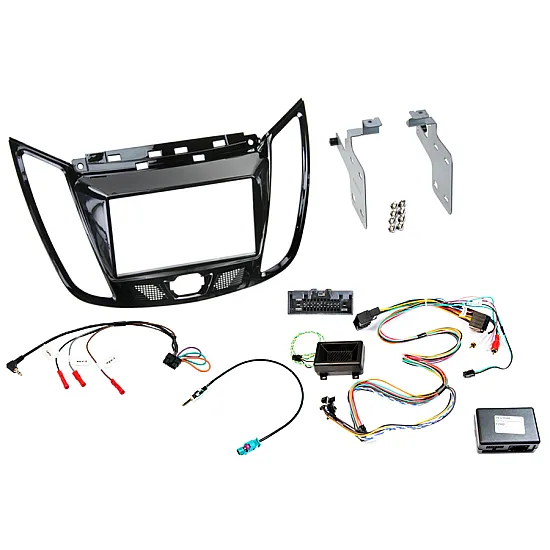

This stereo upgrade fitting kit includes:

• Fakra to DIN antenna adapter (21-106)
• Steering wheel control/ parking sensor retention interface (29-CTF08)
• Universal patch lead (29-CT-025)
• Double DIN fascia kit (50-892)

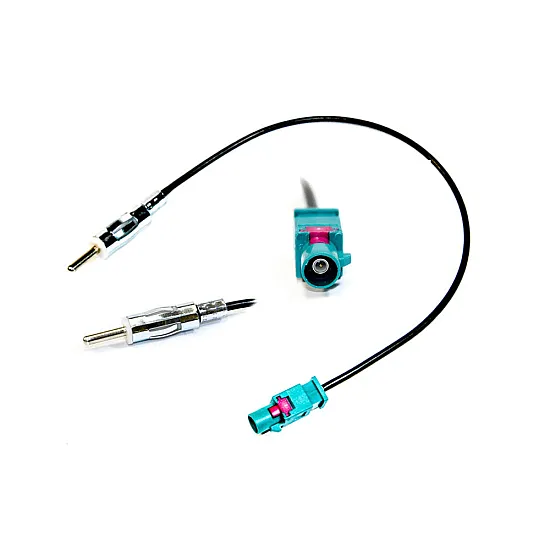

Fakra to DIN antenna adapter (21-106)

Male Fakra to Male DIN antenna adapter cable. This cable adapts from a Farka antenna connection at the back of the cars original radio to a standard aftermarket DIN antenna connection to allow the fitting of an aftermarket radio upgrade. This is a passive adapter cable, not suitable for cars that need a phantom power supply to turn on the antenna amplifier.

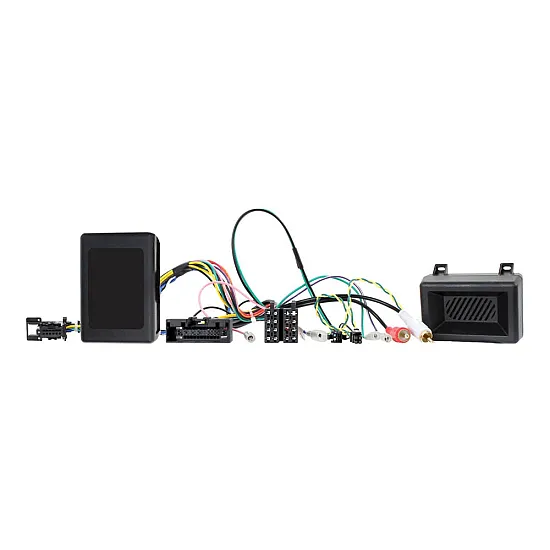

Steering wheel control/ parking sensor retention interface (29-CTF08)

CAN-Bus Steering Wheel Control Interface for Ford (2012 Onwards) vehicle models. Retains steering wheel controls, parking sensor audio and allows time/date change from the steering wheel. Audio Steering wheel interface allowing use of original buttons with a new aftermarket head-unit. Also maintains date, time & temperature display, OEM parking sensor audio with new  parking buzzer. Includes CAN ignition and speed pulse for Navigation systems.

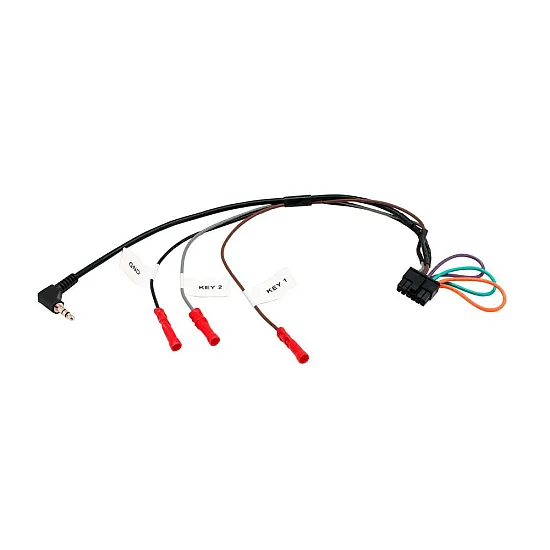

Universal patch lead (29-CT-025)

Universal patch lead for 29-CT series steering controls. Suitable for Alpine,  Clarion, JVC, Kenwood,  Pioneer, Sony and Chinese head-units that are steering wheel remote ready. This cable plugs into the Steering wheel control box and into either the 3.5mm socket or single wire on the back of the head-units. Follow instruction to cut loops if needed.

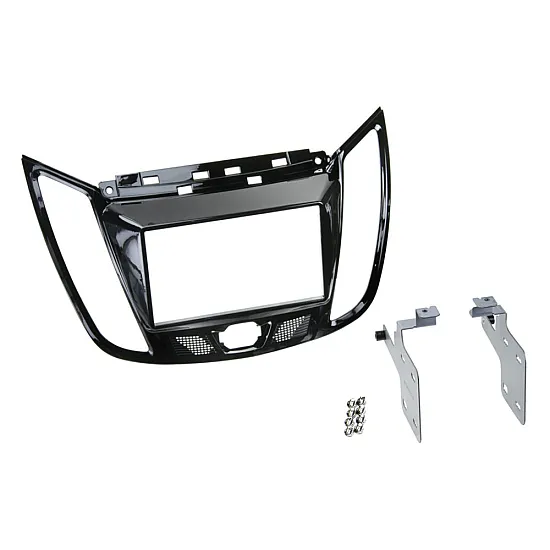

Double DIN fascia kit (50-892)

Car radio fascia adaptor panel to allow the fitting of an aftermarket double din car radio upgrade. The fascia adaptor allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio. This fascia kit uses side fixing brackets, the brackets fit directly to the sides of the new radio and the fascia panel. This replaces the need for a fitting cage and gives a flush professional appearance to the installation. This fascia is designed to fit select Ford C-MAX (2010 onwards) and Ford Kuga (2012 onwards) car models.

PLEASE NOTE: An additional OEM lock and hazard switch assembly (FORD-F1519127) may be required if the original can not be retained

This product has been developed through carefully documented data and research. The manufacturer & supplier cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options, or damage that may occur in the vehicle during the installation of components. All application data is subject to change.

Refer to the compatibility section to check your vehicle variant is supported.
