Dension Gateway 500S BT iPod/USB Bluetooth Car Kit - GW52MO2
Need any more information? Ask a question£349.00
- 1 Year Warranty
-
Built-in Bluetooth telephone and A2DP
In addition to iPod and USB music playback, not only does this enable hands free telephone operations but also allows A2DP music streaming to the original car audio system.(New Blue-core chip set) -

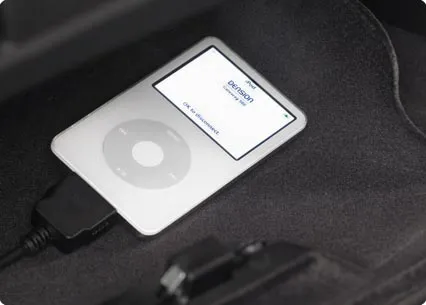

iPod and USB music adapter
iPod, iPhone, USB music playback all-in-one interface.
- Easy Returns
Recommended Add Ons

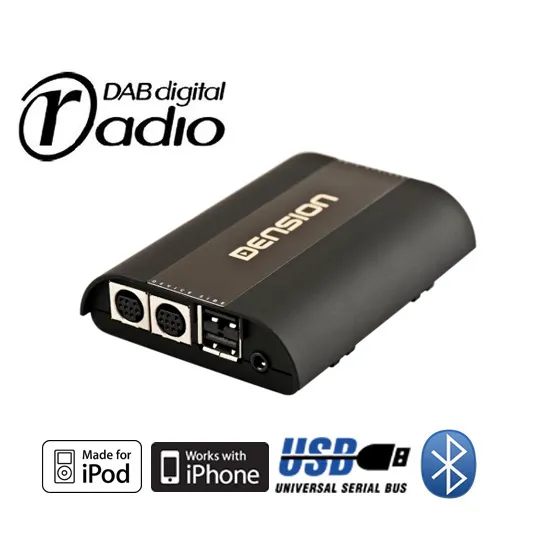

The DAB for Gateway is a really useful unit, designed to connect with your Gateway Pro or Gateway 500S BT** and provide you with DAB digital radio playback through your car stereo.
In area with good to average digital signal coverage we recommend the Internal glass mount DAB antenna.
 |
Suitable for connecting an Apple lighting device (Eg. iPod nano 7th Gen, iPod Touch 5th Gen, iPhone 5 etc.) to any iPod kit with 30pin docking connector. Eg Dension, Connects2, Dice etc. |
iPhone 5/6 Lightning Cable
|
|
Apple approved USB to lightning apple cable |
 |
iPhone 6 Cradle (with this cradel you will have to purchase LIA1GW0 from the option "iPod Lite Connection) |
 |
iPhone 5 Cradle (with this cradel you will have to purchase LIA1GW0 from the option "iPod Lite Connection) |
Optional Installation Package
You are being offered an installation at an additional cost. If you select the installation option then this product will be professionally Installed at your home or workplace anywhere in the UK by our own network of accredited engineers. You will be contacted by a member of our installation booking team after you have placed an order.

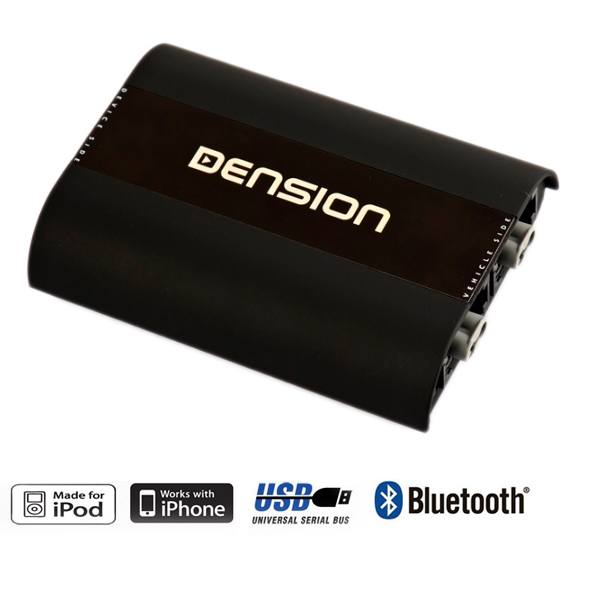

Dension Gateway 500S iPod USB and Bluetooth Car Kit
Gateway 500S is Dension's premium interface and is designed to work with cars which utilize the fiber optic MOST system. As with other Dension Gateways, it works by emulating the CD changer (in most cases) in the vehicle and enables you to use the original radio controls.
note: images are for illustration only - may not resemble your actual car radio
The Gateway 500S Features
- All in ONE device : full iPod/iPhone control, USB playback, Bluetooth handsfree
- Song information and browsing on vehicle screen (ID3-Tag)
- A2DP audio streaming
- 3.5 mm Aux-in
- Control via original car audio system controls (including steering wheel controls – if available)
- Retain the original dashboard aesthetic
- Both single and dual FOT versions are available
Integrated Bluetooth
In addition to iPod and USB music playback the Gateway 500S includes Bluetooth. Not only does this enable hands free telephone operations but also allows A2DP music streaming to the original car audio system.
- Make and receive hands free calls in the car

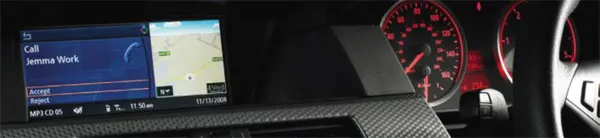

- Browse phone book on the car's original screen(s)
- Phone audio through car speakers
- Stream music from your phone to the car audio system
- Use original controls
Package Content
- Hardware
- Optical harness
- Power cable
- Microphone
- Installation and user guide
How Gateway 500S Works
Gateway 500S is Dension’s premium interface and is designed to work with cars which utilise the fibre optic MOST system. As with other Gateways, it works by emulating the CD changer (in most cases) in the vehicle and makes use of the original radio controls. If the car has a CD changer fitted, then Gateway 500 will integrate automatically, however if not, the CDC function may have to be enabled / programmed. The car configuration is set using dip switches.
| Make | Model | Varitions | Radio | Year From | Year To | Notes |
| Audi | A4 |
8K (01-01-2008 - 01-12-2011) |
MMI 2G Basic
MMI 2G High |
2008 | 2009 | See note(s) below |
| Audi | A4 AllRoad |
8KH (01-02-2009 - 01-12-2011) |
MMI 2G Basic
MMI 2G High |
2009 | 2009 | See note(s) below |
| Audi | A4 Cabriolet |
8H (01-02-2006 - 01-11-2009) |
MMI 2G Basic
MMI 2G High |
2008 | 2009 | See note(s) below |
| Audi | A5 Coupe |
8T (01-02-2007 - 01-09-2011) |
MMI 2G Basic
MMI 2G High |
2007 | 2009 | See note(s) below |
| Audi | A5 Sportback |
8T (01-08-2009 - 01-09-2011) |
MMI 2G Basic
MMI 2G High |
2009 | 2009 | See note(s) below |
| Audi | A6 |
4F (01-03-2004 - 01-09-2008) 4F (01-10-2008 - 01-04-2011) |
MMI 2G Basic
MMI 2G High |
2005 | 2009 | See note(s) below |
| Audi | A6 Allroad |
4F (01-06-2006 - 01-03-2012) |
MMI 2G Basic
MMI 2G High |
2006 | 2008 | See note(s) below |
| Audi | A8 |
4E (01-10-2002 - 01-04-2005) 4E (01-04-2005 - 01-08-2007) 4E (01-08-2007 - 01-02-2010) |
MMI 2G Basic
MMI 2G High |
2002 | 2010 | See note(s) below |
| Audi | Q7 |
4L (01-11-2005 - 01-06-2009) |
MMI 2G Basic
MMI 2G High |
2005 | 2009 | See note(s) below |
| Audi | RS4 |
8E (01-10-2005 - 01-04-2008) |
MMI 2G Basic
MMI 2G High |
2008 | 2008 | See note(s) below |
| Audi | RS4 Cabriolet |
8H (01-03-2006 - 01-04-2009) |
MMI 2G Basic
MMI 2G High |
2008 | 2009 | See note(s) below |
| Audi | S4 |
8K (01-12-2008 - 01-12-2011) |
MMI 2G Basic
MMI 2G High |
2008 | 2009 | See note(s) below |
| Audi | S4 Cabriolet |
8H (01-02-2006 - 01-04-2009) |
MMI 2G Basic
MMI 2G High |
2008 | 2009 | See note(s) below |
| Audi | S5 Coupe |
8T (01-02-2007 - 01-05-2012) |
MMI 2G Basic
MMI 2G High |
2007 | 2009 | See note(s) below |
| Audi | S6 |
4F (01-03-2006 - 01-09-2008) 4F (01-10-2008 - 01-04-2011) |
MMI 2G Basic
MMI 2G High |
2006 | 2009 | See note(s) below |
| Audi | S8 |
4E (01-01-2006 - 01-08-2007) 4E (01-08-2007 - 01-02-2010) |
MMI 2G Basic
MMI 2G High |
2006 | 2010 | See note(s) below |
| BMW | 1 Series Cabriolet |
E88 (01-10-2007 - 01-02-2011) |
iDrive, Business (MASK, 6.5, single slot)
iDrive, Professional (CCC, 8.8, dual slot) NON iDrive, Professional |
2007 | 2011 | See note(s) below |
| BMW | 1 Series Coupe |
E82 (01-10-2007 - 01-02-2011) |
iDrive, Business (MASK, 6.5, single slot)
iDrive, Professional (CCC, 8.8, dual slot) NON iDrive, Professional |
2007 | 2011 | See note(s) below |
| BMW | 1 Series Hatchback |
E81 (3 Door) E87 (5 Door) (01-03-2007 - 01-09-2011) E87 (01-09-2004 - 01-03-2007) |
iDrive, Business (MASK, 6.5, single slot)
iDrive, Professional (CCC, 8.8, dual slot) NON iDrive, Professional |
2004 | 2011 | See note(s) below |
| BMW | 1 Series M Coupe |
E82 (01-03-2011 - 01-12-2011) |
iDrive, Business (MASK, 6.5, single slot)
iDrive, Professional (CCC, 8.8, dual slot) NON iDrive, Professional |
2011 | 2011 | See note(s) below |
| BMW | 3 Series |
E90 (Saloon) E91 (Estate) (01-03-2005 - 01-08-2008) E90 (Saloon) E91 (Estate) (01-09-2008 - 01-06-2012) |
iDrive, Business (MASK, 6.5, single slot)
iDrive, Professional (CCC, 8.8, dual slot) NON iDrive, Professional |
2005 | 2011 | See note(s) below |
| BMW | 3 Series Cabriolet |
E93 (01-10-2006 - 01-04-2010) E93 (01-03-2010 > ) |
iDrive, Business (MASK, 6.5, single slot)
iDrive, Professional (CCC, 8.8, dual slot) NON iDrive, Professional |
2006 | 2011 | See note(s) below |
| BMW | 3 Series Coupe |
E92 (01-09-2006 - 01-04-2010) E92 (01-03-2010 > ) |
iDrive, Business (MASK, 6.5, single slot)
iDrive, Professional (CCC, 8.8, dual slot) NON iDrive, Professional |
2006 | 2011 | See note(s) below |
| BMW | 5 Series |
E60 (Saloon) E61 (Estate) (01-09-2003 - 01-03-2007) E60 (Saloon) E61 (Estate) (01-03-2007 - 01-01-2010) |
iDrive, Business (MASK, 6.5, single slot)
iDrive, Professional (CCC, 8.8, dual slot) |
2003 | 2010 | See note(s) below |
| BMW | 6 Series Cabriolet |
E64 (01-03-2004 - 01-09-2007) E64 (01-09-2007 - 01-08-2009) E64 (01-09-2009 - 01-02-2011) |
iDrive, Business (MASK, 6.5, single slot)
iDrive, Professional (CCC, 8.8, dual slot) |
2004 | 2011 | See note(s) below |
| BMW | 6 Series Coupe |
E63 (01-03-2004 - 01-09-2007) E63 (01-09-2007 - 01-08-2009) E63 (01-09-2009 - 01-02-2011) |
iDrive, Business (MASK, 6.5, single slot)
iDrive, Professional (CCC, 8.8, dual slot) |
2004 | 2011 | See note(s) below |
| BMW | M3 Cabriolet |
E93 (01-04-2008 - 01-08-2010) E93 (01-09-2010 - 01-08-2013) |
iDrive, Business (MASK, 6.5, single slot)
iDrive, Professional (CCC, 8.8, dual slot) NON iDrive, Professional |
2008 | 2011 | See note(s) below |
| BMW | M3 Coupe |
E92 (01-09-2007 - 01-08-2010) E92 (01-09-2010 - 01-08-2013) |
iDrive, Business (MASK, 6.5, single slot)
iDrive, Professional (CCC, 8.8, dual slot) NON iDrive, Professional |
2007 | 2011 | See note(s) below |
| BMW | M3 Saloon |
E90 (01-10-2007 - 01-08-2010) |
iDrive, Business (MASK, 6.5, single slot)
iDrive, Professional (CCC, 8.8, dual slot) NBT (CIC HIGH) |
2007 | 2011 | See note(s) below |
| BMW | M5 |
E60 (Saloon) E61 (Estate) (05-01-2005 - 02-01-2007) E60 (Saloon) E61 (Estate) (03-01-2007 - 05-01-2010) |
iDrive, Business (MASK, 6.5, single slot)
iDrive, Professional (CCC, 8.8, dual slot) |
2005 | 2010 | See note(s) below |
| BMW | M6 |
E63 (Coupe) E64 (Cabriolet) (01-10-2005 - 01-08-2009) E63 (Coupe) E64 (Cabriolet) (01-09-2009 - 01-07-2010) |
iDrive, Business (MASK, 6.5, single slot)
iDrive, Professional (CCC, 8.8, dual slot) |
2005 | 2010 | See note(s) below |
| BMW | X5 |
E70 (03-01-2007 - 03-01-2010) E70 (01-04-2010 - 01-06-2013) |
iDrive, Business (MASK, 6.5, single slot)
iDrive, Professional (CCC, 8.8, dual slot) |
2007 | 2013 | See note(s) below |
| BMW | X5M |
E70 (01-06-2009 - 01-06-2013) |
iDrive, Business (MASK, 6.5, single slot)
iDrive, Professional (CCC, 8.8, dual slot) |
2009 | 2013 | See note(s) below |
| BMW | X6 |
E71 (05-01-2008 - 02-01-2012) E71 (02-01-2012 - 01-11-2014) |
iDrive, Professional (CCC, 8.8, dual slot)
iDrive, Business (MASK, 6.5, single slot) |
2008 | 2014 | See note(s) below |
| BMW | X6M |
E71 (06-01-2009 - 01-01-2012) E71 (02-01-2012 - 01-03-2015) |
iDrive, Business (MASK, 6.5, single slot)
iDrive, Professional (CCC, 8.8, dual slot) |
2009 | 2015 | See note(s) below |
| Mercedes-Benz | B Class |
W245 (01-09-2005 - 01-03-2008) |
Comand
|
2005 | 2008 | See note(s) below |
| Mercedes-Benz | C Class |
W203 (Saloon) S203 (Estate) (01-09-2003 - 01-01-2008) |
Comand
|
2003 | 2008 | See note(s) below |
| Mercedes-Benz | C Class Sports Coupe |
CL203 (01-05-2004 - 01-06-2008) |
Comand
|
2004 | 2008 | See note(s) below |
| Mercedes-Benz | CL Coupe |
C216 (01-09-2006 - 01-09-2010) |
Comand
|
2006 | 2006 | See note(s) below |
| Mercedes-Benz | CLK |
A209 (Cabriolet) C209 (Coupe) (01-05-2005 - 01-12-2009) |
Comand
|
2005 | 2009 | See note(s) below |
| Mercedes-Benz | CLS |
Comand
|
2004 | 2007 | See note(s) below | |
| Mercedes-Benz | CLS Coupe |
C219 (W219) (01-04-2005 - 01-03-2008) |
Comand
|
2005 | 2008 | See note(s) below |
| Mercedes-Benz | E Class |
W211 (Saloon) S211 (Estate) (01-06-2002 - 01-07-2006) W211 (Saloon) S211 (Estate) (01-07-2006 - 01-12-2009) |
Comand
|
2002 | 2007 | See note(s) below |
| Mercedes-Benz | G Class |
W463 (01-10-2010 - 01-08-2012) |
Comand
|
2010 | 2012 | See note(s) below |
| Mercedes-Benz | GL Class |
X164 (01-07-2006 - 01-10-2009) |
Comand
|
2006 | 2009 | See note(s) below |
| Mercedes-Benz | M Class |
Comand
|
2005 | 2009 | See note(s) below | |
| Mercedes-Benz | R Class |
W251 (01-02-2006 - 01-09-2010) |
Comand
|
2006 | 2010 | See note(s) below |
| Mercedes-Benz | S Class |
W220 (01-09-2002 - 01-01-2006) |
Comand
|
2002 | 2006 | See note(s) below |
| Mercedes-Benz | SL |
R230 (01-03-2002 - 01-03-2006) R230 (01-03-2006 - 01-03-2008) |
Comand
|
2005 | 2007 | See note(s) below |
| Mercedes-Benz | SLK |
Comand
|
2006 | 2008 | See note(s) below | |
| Mercedes-Benz | SLK Roadster |
R171 (01-07-2004 - 01-03-2008) R171 (01-04-2008 - 01-03-2011) |
Comand
|
2006 | 2008 | See note(s) below |
| Mercedes-Benz | SLR McLaren |
R199 (01-09-2004 - 01-12-2010) |
Comand
|
2005 | 2009 | See note(s) below |
| Mercedes-Benz | Viano |
W639 (01-01-2004 - 01-09-2010) |
Comand
|
2005 | 2009 | See note(s) below |
| Porsche | 911 |
996 (01-08-2002 - 01-11-2004) |
PCM 2 CD
PCM 2.1 DVD |
2002 | 2004 | See note(s) below |
| Porsche | 911 |
997 (01-09-2004 - 01-10-2009) 997 (01-10-2008 - 01-03-2013) |
PCM 2 CD
PCM 2.1 DVD |
2005 | 2011 | See note(s) below |
| Porsche | Boxster |
987 (01-11-2004 - 01-02-2009) |
PCM 2 CD
PCM 2.1 DVD |
2004 | 2009 | See note(s) below |
| Porsche | Cayenne |
955 (01-04-2003 - 01-12-2006) 957 (01-12-2006 - 01-04-2010) |
PCM 2 CD
PCM 2.1 DVD |
2003 | 2010 | See note(s) below |
| Porsche | Cayman |
987C (01-11-2005 - 01-02-2009) 987C-2 (01-03-2009 - 01-02-2013) |
PCM 2 CD
PCM 2.1 DVD |
2005 | 2010 | See note(s) below |
AUDI NOTES:
- Steering wheel controls are required for proper phone functions.
- Dual FOT version is required for retaining the original CD-Changer function.
- Your MMI s/w version for MMI Basic & Basic Plus must be higher than 0420. To check press RETURN + SETUP. Then check INTERFACE C6stdNavi. For MMI High must be higher than 3450. Press SETUP/SETTINGS and check the SW Index. To update please consult your Audi dealership.
- The Audi MMI 2G is defined by the control buttons near the gearstick. MMI High will have the full colour screen, the MMI Basic/Plus models will have a monochrome red and sometimes green screen.
BMW NOTES:
- It may necessary to have the car programmed and/or updated by your dealer in order to use the Gateway. For further details please download and read the installation guide.
- Dual FOT version is required for retaining the original CD-Changer function.
- Original phone module must be removed or phone function must be disabled on the Gateway.
- Japanese specific cars are not supported.
MERCEDES NOTES:
- Dual FOT version is required for retaining the original CD-Changer function.
- Using optical cable extension kit (FOA1PO1) is required if the factory CD-Changer is located in the boot.
PORSCHE NOTES:
- CD-Changer option needs to be coded if no factory CD-Changer is available
- Using optical cable extension kit (FOA1PO1) is required if the factory CD-Changer is located in the boot.
- Dual FOT version is required for retaining the original CD-Changer function.
- For Bluetooth phone option, the head unit must have phone button.
Supported USB Devices
- USB: Flash Memory and Hard Disk Drive (UBS1.1 and higher)
- File System: FAT16 or FAT32
- Storage capacity: up to 320GB music content
- Music Format: MP3, WMA and WAV,
- OGG
Supported iPod / iPhone Devices
- All iPods
- All iPhones
If you are unsure about the suitability of this product please contact us via the ask us about this item link at the top of this page or telephone us and we will gladly assist you.
 |
Car information and entertainment systems can be complex networks, so we always recommends that you have your installation carried out by a qualified installer. If you wish Car Communications to carry out the installation at an address of your choice anywhere in the UK please select from addons above before adding to cart. Our products are professionally installed at your home or workplace anywhere in the UK by our own network of accredited engineers. The installation will vary slightly depending on which optional items you have also purchased. But in each case you will have a dock cable to connect your iPod. Your installer will ask and advise as to the best place to situate this in your vehicle. The Gateway itself is small and will be installed securely out of sight behind the dash. Dension products are all designed so that there is no need to cut cables. |
iPod dock cable and USB fitted in glovebox
 |
Download Gateway 500S User Manual |
|
Download Gateway 500S Installation Manual |
 |
Dension Knowledge Base |
|
Dension Downloads |
| Music Adapters | |
| Music Adapter Features | Bluetooth Music Streaming, iPod/iPhone, Other Smart Phones, AUX, USB |
| Product Class | |
| Product Type | Bluetooth Hands Free, Bluetooth Music Streaming, Music Adapter |
© 2018 Car Communications Ltd: All rights Reserved | www.carcommunications.co.uk
