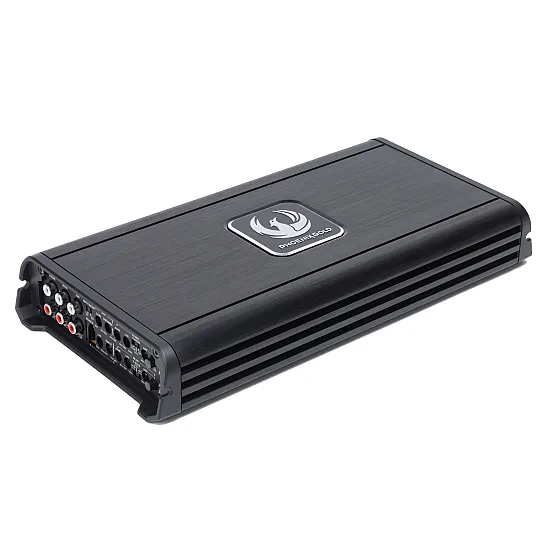

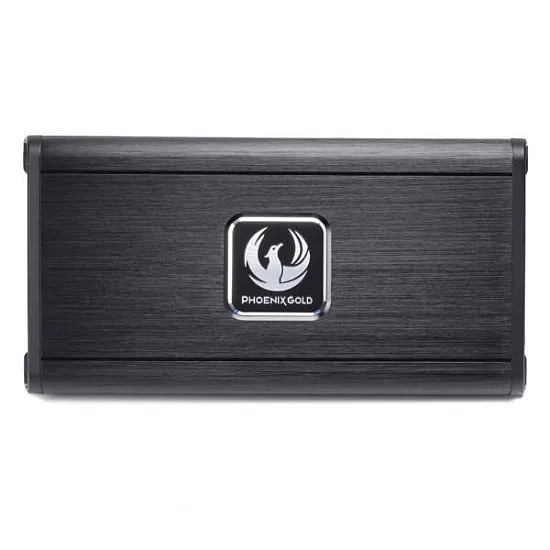

Phoenix Gold ZR12005 ZR-Series 5-Channel Powerful and compact Class D Amplifier

Phoenix Gold ZR12005 is a powerful 5-Channel Class-D Amplifier with a fantastic compact design suitable for even the smallest of installs. Featuring massive power, the ZR12005 uses its high-grade connection terminal to ensure a clean crisp power delivery to all your components.

R12005 is a powerful 5-Channel Class-D Amplifier with a fantastic compact design suitable for even the smallest of installs. Featuring massive power, the ZR12005 uses its high-grade connection terminal to ensure a clean crisp power delivery to all your components.

Step into the world of precision sound engineering with the ZR12005, a compact yet mighty 5-Channel Class-D Amplifier that defies expectations. Crafted to excel in the most confined installations, this amplifier, with a sleek, space-conscious design, promises a great audio experience. With ratings of 4 x 175W + 1 x 500W at 2 ohms, and 4 x 100W + 1 x 275W at 4 ohms, this amplifier showcases unparalleled versatility across various impedance levels.

This adaptability ensures it seamlessly integrates into diverse audio setups, from power-hungry configurations to more controlled environments. Compact dimensions of 323 x 160 x 48.3mm underscore its suitability for most space-restricted installations, ensuring it slips seamlessly into any setup without compromising on its performance capabilities. The ZR12005 doesnt just amplify soundit refines it.

With full-function 12dB filters spanning High Pass and Low Pass, extended to 5kHz, this amplifier offers meticulous control over frequencies, enabling users to sculpt the audio output with precision. The inclusion of a Low-Level Differential Balanced Input further enhances compatibility and fidelity, ensuring an elevated listening experience. Safety and reliability are paramount, and the ZR12005 is fortified with full circuit protection, guaranteeing sustained performance while safeguarding against electrical mishaps. Its fan-less design speaks volumes about its efficiency and durability, ensuring optimal performance without compromising on silence or reliability. The AutoStart function on High-Level Input further enhances convenience, seamlessly initiating operations upon detecting the input signal.

Features:

• High-Level Auto-Turn On – powers on the amp when the audio signal is supplied
• OEM Connection Ready – compatible with aftermarket/original source units
• Remote Ready – control bass/gain with included ZRBC
• Fan-less Design – regulates temperature internally for quiet operation

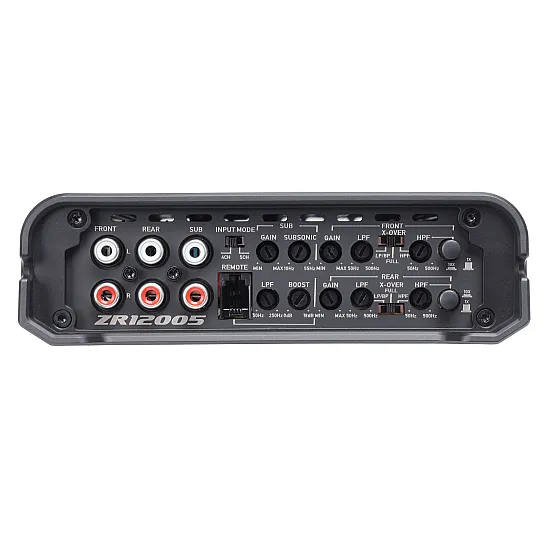

• High & Low-Level Inputs – versatile connectivity to suit any vehicle

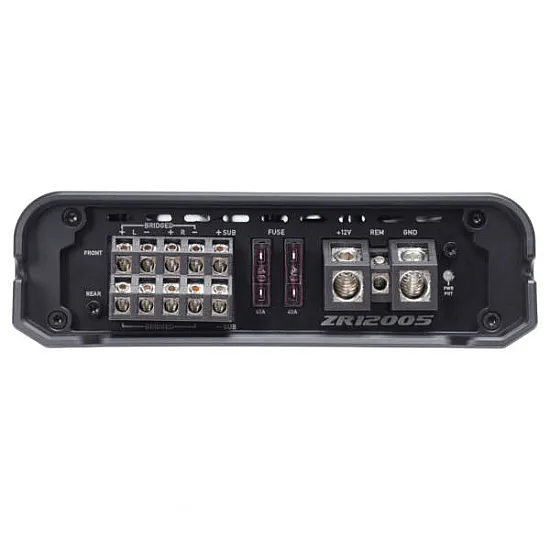

• Heavy Duty Connector Block – enables maximum current supply
• 4-Way Protected Circuit – protection against thermal damage, reversed power, speaker polarity and low voltage

Specifications:

• Class Class D
• Channels 5
• Frequency Response: CH 1-4: 10Hz 25kHz CH 5: 10Hz 500Hz
• RMS Power Rating (1Ohm): N/A
• RMS Power Rating (2Ohm): 4 x 175W + 1 x 500W
• RMS Power Rating (4Ohm): 4 x 100W + 1 x 275W
• Signal to Noise Ratio (SNR) (Full Power): F/R: – 87dB Sub: -92dB
• Total Harmonic Distortion (THD): <1%
• Low Pass Filter (LPF): 50Hz 5kHz (12dB/Oct)
• High Pass Filter (HPF): 50Hz 5kHz (12dB/Oct)
• Subsonic: 10Hz 55Hz (24dB/Oct)
• Bass Boost @ 45Hz: 0 +15dB
• Crosstalk: -55dB
• Input Sensitivity: 0.25V 10V
• Fuses: 3 x 40A
• Remote: Yes (Included)
• High-level Input Via RCA: Yes
• Auto Turn-on: Yes
• Phase Control: N/A
• Operating Voltage: 9V 16V
• Idle Current: 1.4A
• Current Draw (Max): 108A
• Total Efficiency (4?): 84%
• Power Terminal: 20mm
• Speaker Terminal: 4mm
• Dimensions (LxWxH) 323 x 160 x 48.3mm
• Weight 2.42 kg
