Vauxhall Corsa D Single DIN car stereo fitting kit with Steering Controls (GLOSS BLACK/ PIANO BLACK)

Complete stereo upgrade fitting kit to install a Single DIN aftermarket car stereo and retain the use of the steering wheel controls in a Vauxhall Corsa D. The CAN bus cable in these kits has a loose wire on it that needs to be connected to a wire at the rear of the small screen on top of the dashboard. The steering control interface will also generate a true key present ignition supply to the new radio.

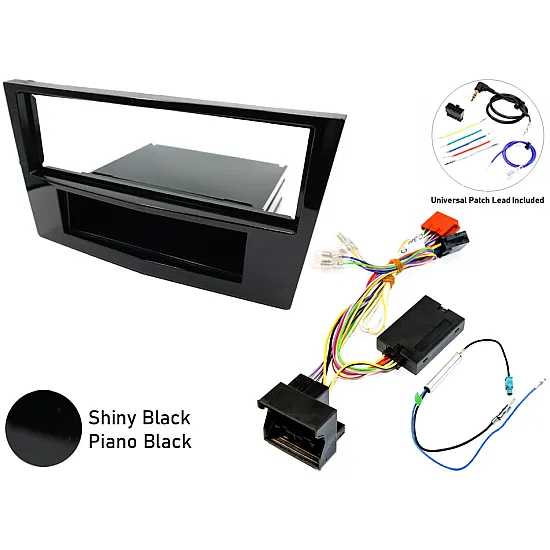

This unit fitting kit includes:

• Antenna adapter cable (21-123)
• Steering wheel control interface (49-CORSA-D)
• Universal patch lead for steering control interface (49-025)
• Single DIN fascia (GLOSS BLACK/ PIANO BLACK) (50-230/5)

PLEASE NOTE: To remove the original radio, you will require radio release keys, part number 52-012

Fakra to DIN aerial adapter cable with 12v phantom power (21-123)

This cable converts the original antenna connector in the car, known as a Fakra connector, to a standard aftermarket antenna connector, known as a DIN connector. The adapter cable has a built in module which provides a phantom power feed to the original antenna in the car. A phantom power feed is a 12v power supply that is sent up the centre wire of the antenna cable, this powers the amplifier built into the original antenna. The antenna adapter cable has a loose wire which needs to be connected to the 12v antenna power output of the new aftermarket stereo.

Steering wheel control interface (49-CORSA-D)

A Quad-lock to ISO adapter cable with CANbus steering control interface is supplied in the kit. This cable adapts from the original connector in the car, known as a quadlock, to standard aftermarket connectors for the new stereo, known as ISO connectors. The CANbus steering wheel control interface will retain the use of the original radio controls on the steering wheel with an aftermarket stereo. The CANbus interface generates a key present ignition supply to the new stereo, this means the stereo will turn on with the first click of the key and stay on until the key is removed from the ignition barrel. The interface also generates speed pulse, reverse gear and handbrake output signals, these are used when installing multimedia, navigation units and reverse cameras. This interface is built into the Quad-lock to ISO harness adapter so installation is plug and play.

The CANbus interface requires a data wire to be connected at the rear of the display screen at the top of the dashboard (instructions are included), because our interface connects to the data signal here, rather than at the rear of the radio, it means that it never loses the data connection to the car. Other interfaces, when connected at the rear of the radio, will lose the data connection, this is because the car recognises that the original radio is no longer present and shuts down the data signal. This data signal does not shut down at the display screen.

Universal patch lead (49-025)

A universal patch lead is supplied in the kit, this is to pair the steering control interface to the steering control input of Alpine, Clarion, JVC, Kenwood, Pioneer and Sony head units.

Single DIN fascia GLOSS BLACK/ PIANO BLACK (50-230/5)

This fascia adapter panel is to fit a Single DIN aftermarket radio. The fascia adapter allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio. The fascia is a Gloss Black/ Piano Black finish, commonly found in various Vauxhall cars.

COLOUR: GLOSS BLACK/ PIANO BLACK

This product has been developed through carefully documented data and research. The manufacturer & supplier cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options, or damage that may occur in the vehicle during the installation of components. All application data is subject to change.

Refer to the compatibility section to check your vehicle variant is supported.
