Rear View Camera Kit

 Peugeot Expert with Pro Touch Screen

An integrated high quality rear view camera kit, designed to work with the Peugeot Expert's factory fitted radio system. A Number Plate camera that will provides guidelines and the high quality camera provides a clear & crisp image on the infotainment screen to aid you with reversing and parking.

This kit has been specially designed for the Peugeot Expert and has been perfected to work fully integrated with the factory fitted screen. Our kit maintains all of the factory options as standard. No programming or coding required after the kit has been installed, as we have had the kits manufactured in such a way that all the software is built into it.

This reversing camera solution provides Dynamic (moving) guidelines in vehicles fitted with automatic transmission.

NOTE: Moving lines are only available on automatic vehicles

Rear View Camera Option

This Reversing camera kit solution for the Peugeot Expert can be paired with either a Bolt-On camera or a Brake Light camera.  The Option can be selected from the Recommended Add-Ons section above. The type of camera is dependent on the type of number plate light surround fitted to the vehicle. It is either two individual number plate lights or a single number plate light bar. See below for example.

Brake Light Camera used for this setup         Bolt-On or Brake Light Camera can be used with setup

NOTE: Depending on which number plate lights your vehicle has, please select the right camera type. If there is no bar above your number plate please select the Brake Light Camera in Recommended Add-Ons section above.

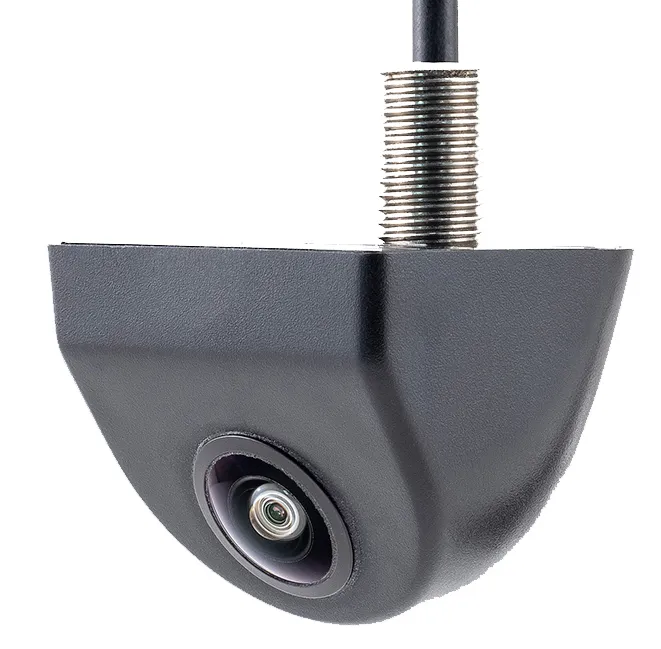

Bolt-On Camera Option

The high quality Sony lens with CMOS chip set, is drilled in just above the number plate which gives a discrete look, just like it has been factory fitted. The CMOS chip set will give you a clear and sharp picture in low light conditions, also the camera will work perfectly well in rainy conditions.

Camera Specifications - Bolt-On Camera

•  2 different auxiliary lines: switched off at the factory (can be switched on)
•  black matt plastic housing with stainless steel fastening
•  Mirrored image reproduction (adjustable)
•  Image display rotated 180° (adjustable)
•  Image sensor type 1/4 '' 1233 HD Colour CMOS Low Light Sensor
•  NTSC video signal output
•  Resolution 960H480V pixels
•  DIN protection class IP69K
•  800 TV lines
•  Exposure 60 fields per seconds
•  Signal to noise ratio >46dB
•  Dynamic Range >74dB
•  Light sensitivity <0.01 Lux / F1.2
•  Output signal 1.0Vp-p, 75 OHM
•  Automatic white balance
•  Automatic video level adjustment
•  Operating voltage 12 volts DC
•  Power consumption 25-55mA
•  Diagonal viewing angle 188°
•  Horizontal viewing angle 155°
•  Vertical viewing angle 113°
•  Camera dimensions 25.8 x 28.2mm and 20.8mm high
•  8mm mounting hole
•  Working temperature -40°C to +75°C
•  Storage temperature -60°C to +105°C
•  E certified

Brake Light Camera

Colour rear view camera for Peugeot Expert. 1/3” colour CMOS camera lens for best reproduction quality. This replaces the original Brake Light with camera built in.

This reversing camera is specially designed for Peugeot, Citroen, Toyota vehicles. The camera is complete including video extension RCA cable kit which allows easy plug and play installation. Just remove the existing brake light and replace it with the brake light reversing camera. The camera is water proof and shock tested.

Brake Light Camera Specifications

• INTSC
• IP69 waterproof rating
• 7M night vision
• CMOS Lens
• Certicates : FCC,CE, E-mark，ISO9001,TS16949, RoHs
• Dimensions 263mm x 32mm

Benefits of having a reversing rear view camera kit in your Peugeot Expert

• Guidelines can be really helpful so the driver can accurately estimate the width of the vehicle parking space whilst reversing.
• The driver can see any obstructions behind the vehicle during the reversing manoeuvre
• The driver can see any any blindspots which are not visible to the driver
• Greater vehicle safety management during reversing manoeuvres
• Makes reversing much safer and more convenient

*Installation is optional via the dropdown

Refer to the compatibility section to check your vehicle variant is supported.

NOTE: A reversing camera kit is ONLY a Parking Aid and should not be relied on solely. Please check your surroundings at all times before carrying out a Reversing Manoeuvre. Where Guide lines are included, the guide lines are generic to all vehicles and hence fixed width and not adjustable to the width of the vehicle.
