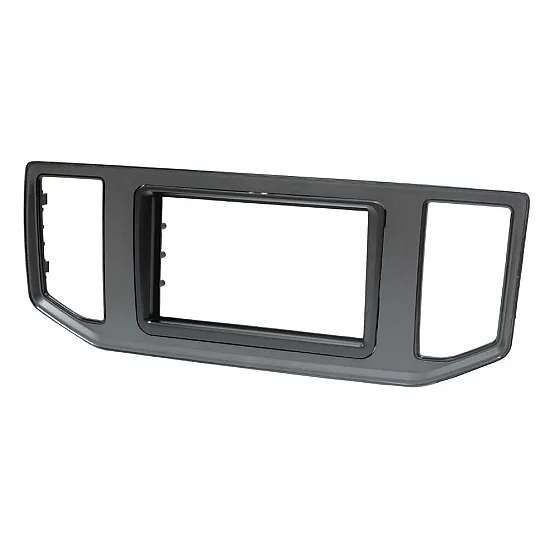

MAN TGE (2017-2023) Double DIN Car Stereo Fascia Adapter Panel (MATT BLACK)

Car radio fascia adapter panel to allow the fitting of an aftermarket Double DIN car stereo upgrade. The fascia adapter allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio. This fascia is supplied with side fixing brackets so a radio can be installed without the need for a fitting cage.

COLOUR: MATT BLACK

PLEASE NOTE: This fascia has maximum mounting depth for the aftermarket radio of 55mm

Fascia Installation

Due to the lower section behind the radio having ducts for the air vents on the Grand California (2019-2023) there is only space for a Single DIN radio chassis or a slim chassis/ modular head unit (maximum mounting depth for the aftermarket radio of 55mm). These units must have the single DIN body relocated to the top of the dashboard because in the crafter the single DIN hole is at the top, the lower part is only 55mm deep and is not a DIN depth so would not allow you to mount a traditional Double DIN radio.

Examples of Compatible Head Units with This Fascia Include:

• JVC KW-M595DBT

Careful attention needs to be paid to the radio that is to be fitted and modifications may be required, either to the fascia kit or the vehicle.

We strongly recommend the installation is done by an experienced car audio technician only.

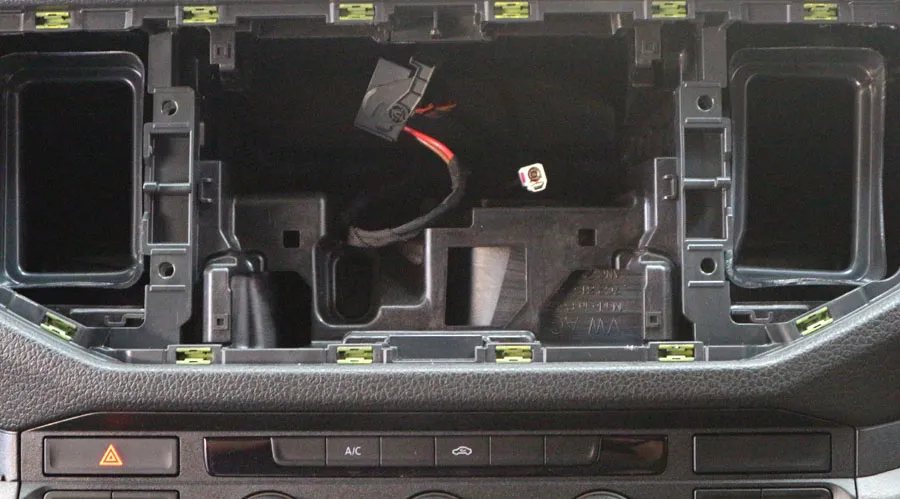

See the image below that shows the available space behind the original radio.

This product has been developed through carefully documented data and research. The manufacturer & supplier cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options, or damage that may occur in the vehicle during the installation of components. All application data is subject to change.

Refer to the compatibility section to check your vehicle variant is supported.
