Focal Car Speakers 2-Way 6.5" Component Kit With Grills - Access 165 AS
- Stock Availability: Pre-Order - Contact Us
- Item Condition : New
- Model: 165AS
- SKU: 165AS
- 1 Year Warranty

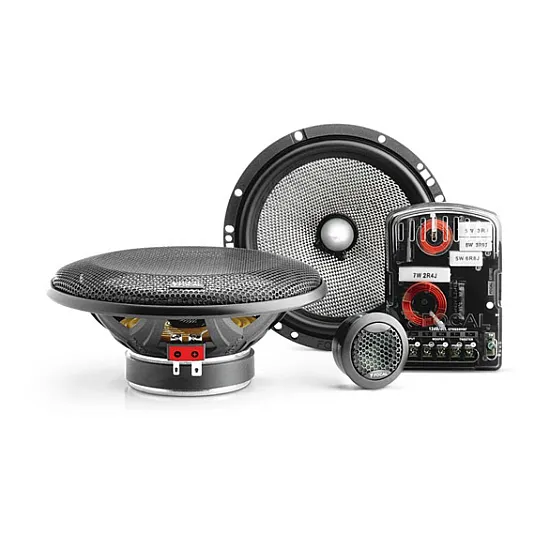

Focal 2-Way Component Speaker - 165 AS
Performance Access Range
The 6.5'' (165mm) Access 165 AS 2-way component speaker kit is very versatile. It fits perfectly into your vehicle interior and offers three different mounting options for the tweeter. You can very easily use the tweeter's 3-position level control, thanks to its separate, easy-to-fit filter.
This Focal 165AS kit combines dynamic bass with precise treble, for prolonged listening without auditory fatigue. Focal pays extreme attention to the reliability and musicality of all its products including the Access range, which has all the brand's DNA and tradition of more than 30 years.

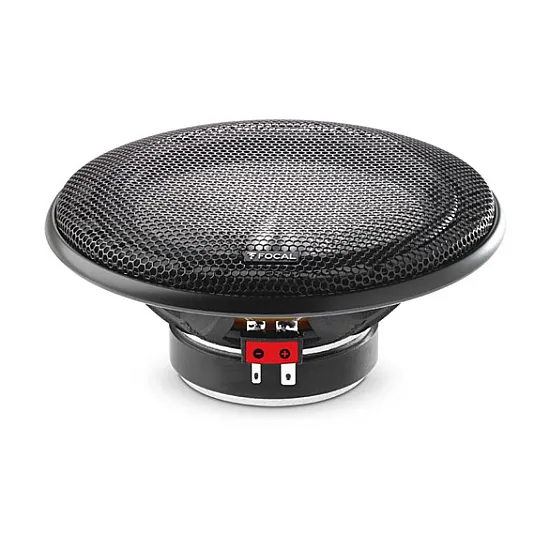

Supplied with grilles.
Key Points
- Cone DFS® (Dual fiberglass Structure) (climatic and power) high resistance
- High sensitivity (Direct headunit using)
- Tweeter level adjustment Extented in low frequencies
POWER ABOVE ALL
Watts and Robustness
With these speakers and their high rated power, you can enjoy quality sound in your vehicle. The Kapton-mounted dual-layer 30mm coil guarantees high power handling and distortion-free sound reproduction.
POWER HANDLING
DFS cone
DFS® technology features robust and reliable cones. Composed with two 90° woven glass fibres and insulated with polyurethane, it resists to extreme acoustic environments and harsh weather conditions.
MODERN APPEARANCE
From a visual standpoint, this new product line is resolutely more modern: doped ABS basket structure, integral terminal block, new tweeter design, contoured grilles, etc.
Technical Characteristics
- Woofer: 61/2" (165mm)
- Voice-coil diameter: 1" (25mm)
- Voice-coil height: 07/16" (11mm)
- Magnet: 31/3" (85mm)
- Tweeter: Aluminum inverted dome
- Ajustable Tweeter level: 3 positions (-3/0/+3dB)
- Crossover: 12dB/oct
- Max. power: 120 Watts
- Nom. power: 60 Watts RMS
- Sensitivity (2.83V/1m): 91.3dB
- Frequency response: 60Hz – 20kHz
- Accessories: Supplied grilles
Specifications - Woofers 6.5" (165mm)
- Nominal power 60W
- Maximum power 120W
- Sensitivity (2,83V/1m) 91dB
- Cone Glass fiber
- Surround Butyl
- Nom. impedance 4 Ohms
- DC resistance 3.5 Ohms
- VC diameter 25mm 1"
- VC height 10mm 03/8"
- Former Kapton
- Layers 2
- Wire Copper
- Inductance -
- Xmax ± 2.5mm 01/8 "
- Magnet d x h 85mm x 15mm 31/3 x 09/16"
- Magnet weight 380g 0.76 lbs
- Flux density 1T
- Gap height 5mm 03/16"
- Net weight 0.85kg 1.70 lbs
Parameters - Woofers 6.5" (165mm)
- Fs 73.8Hz
- Vas 8.9 liters
- Qts 0.905
- Qes 1.03
- Qms 7.43
- Re 3.54 Ohms
- Sd 136.85cm2
- Cas 6,32E-08 m5/N
- Mas 73,37 Kg/m4
- Ras 4578,87 Ohms.ac
- Cms 3380µm/N
- Mms 13.74g
- Rms 0.858kg/s
- Ces 627.48mF
- Les 7.48mH
- Res 25.54 Ohms
- BI 4.68N/A
- SPL 87.25 dB/W/m
Specifications - TN43 Tweeter
- Nominal power 15W
- Maximum power 100W
- Sensitivity (2,83V/1m) 94dB
- Cone Aluminium
- Surround -
- Nom. impedance 4 Ohms
- DC resistance 3.7 Ohms
- VC diameter 20mm 013/16"
- VC height -
- Former Kapton
- Layers 2
- Wire Copper
- Inductance -
- Xmax -
- Magnet d x h -
- Magnet weight -
- Flux density 1.35T
- Gap height 2.5mm 01/8"
- Net weight 60g 0.12 lbs
