Nissan Juke (2010-2014) Double DIN car stereo upgrade fitting kit (SWC AND USB RETENTION)

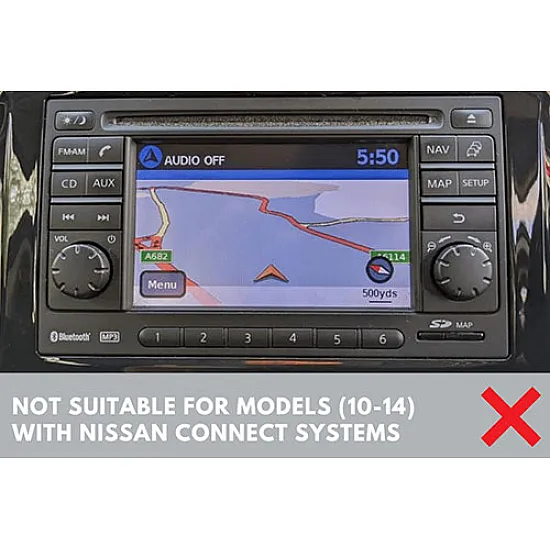

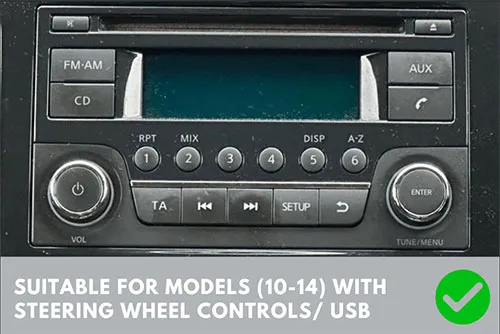

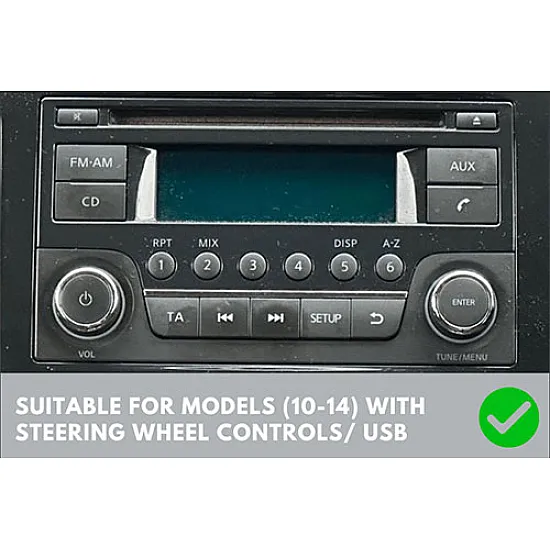

Complete stereo upgrade fitting kit to install a Double DIN aftermarket car stereo head unit and retain the use of the factory steering wheel controls in select Nissan Juke (2010-2014) vehicle models with a factory CD/MP3 radio (Usually found in Acenta model variants). This fitting kit will also retain the factory USB functions (if vehicle is equipped)

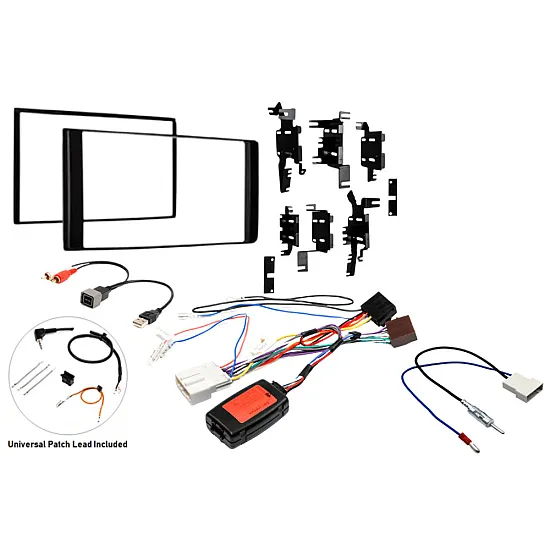

This head unit fitting kit includes:

• Nissan aerial antenna adapter cable (21-118K)
• USB retention cable (24-252)
• Steering wheel control interface (29-683)
• Universal patch lead (29-025)
• Double DIN fascia adapter (50-797)

PLEASE NOTE: For vehicles with factory fitted reverse camera please use FK-644-SWC-CAM

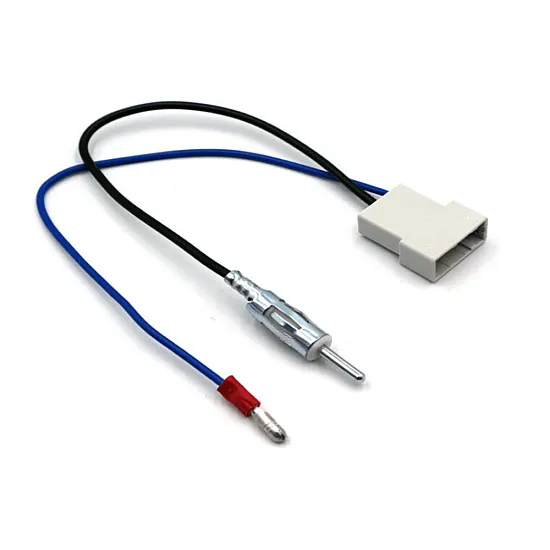

Antenna Adaptor (21-118k)

Nissan (grey rectangle female antenna to male DIN connection) car aerial antenna adapter cable.This cable adapts from the grey plastic rectangle Nissan antenna connector in the car to a standard aftermarket male DIN connector, used when fitting a new aftermarket stereo.The loose blue wire (male bullet) on the adapter needs to be connected to the antenna turn on output from the new radio, this turns on the original antenna amplifier in the car.

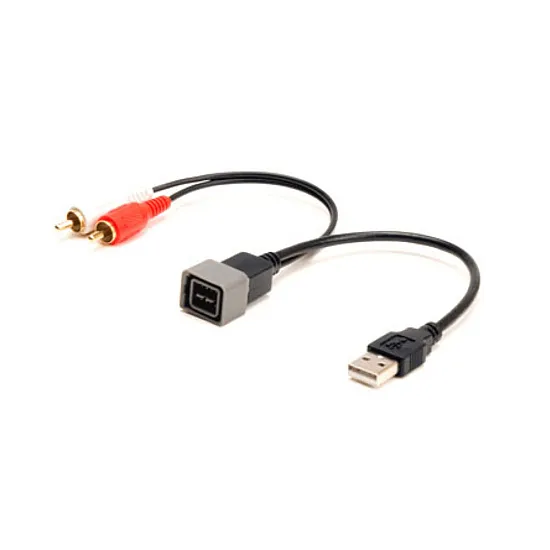

USB retention cable (24-252)

Cable to retain the use of the original USB port when replacing the original head unit.Allows you to maintain the cars existing USB socket and use it with a new aftermarket head-unit.

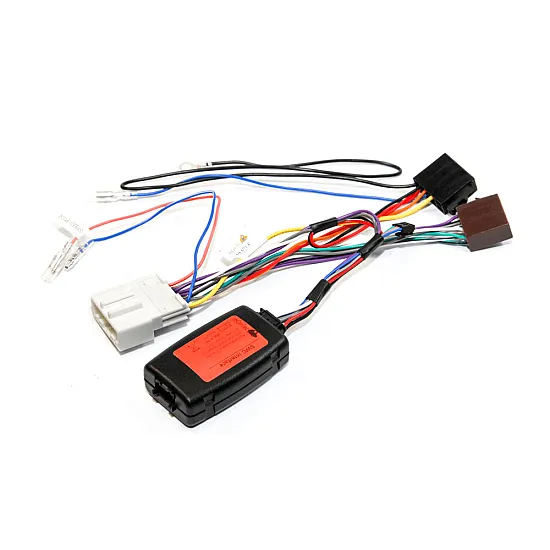

Steering control interface (29-683)

Steering wheel control interface and adapter cable for Nissan Juke cars to fit an aftermarket radio upgrade. The cable adapts from the 20 pin Nissan connector (the connector has a larger size terminal at either end of the connector) in the car to standard aftermarket ISO connectors. This replaces the need for a separate ISO radio replacement adapter cable.This interface will allow the original audio control buttons on the steering wheel to work with the new aftermarket radio. The interface will work the volume, track skip, source, phone and preset skip buttons. (8 function steering wheels)

Installation notes

• Connect male ISO(S) of the steering wheel control interface to the female ISO(S) of the aftermarket radio lead/head unit
• Loose black wire - Connect the radio ground earth ring to the vehicles chassis ground
• Loose pink wire - Connect the pink wire to the speed pulse connector on the aftermarket radio (Not all radios have this, please check manufacturers instructions)
• Loose blue wire (Amplifier turn-on) - This is only required on amplified systems such as BOSE. If your system is amplified this loose blue wire will need to be connected to the amplifier turn on cable on our amplifier integration interface, part number 20-273 (SOLD SEPERATELY)
• Loose blue wire (Antenna turn-on) - This needs to be connected to the antenna turn on cable on the antenna adapter cable. We would recommend using our interface with a Nissan antenna adapter With male bullet connection, our part number 21-118K (SOLD SEPERATELY)

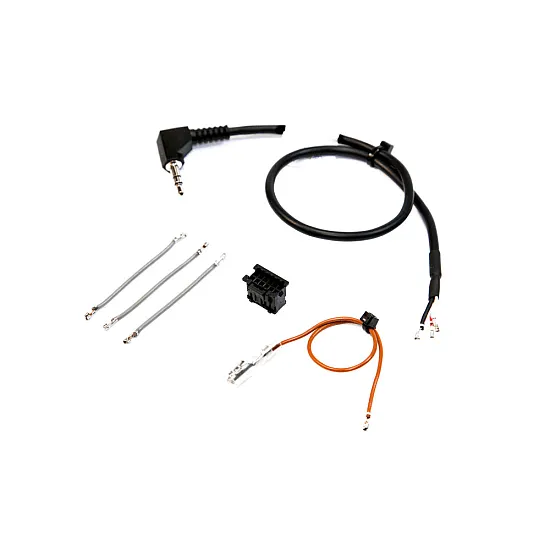

29-Series universal patch lead (29-025)

Universal patch lead to be used with In car Tec 29- series steering wheel control interfaces. Use for Alpine, Clarion, JVC, Kenwood, Pioneer, Sony, Zenec, Philips, Dynavin and non branded Chinese head units.

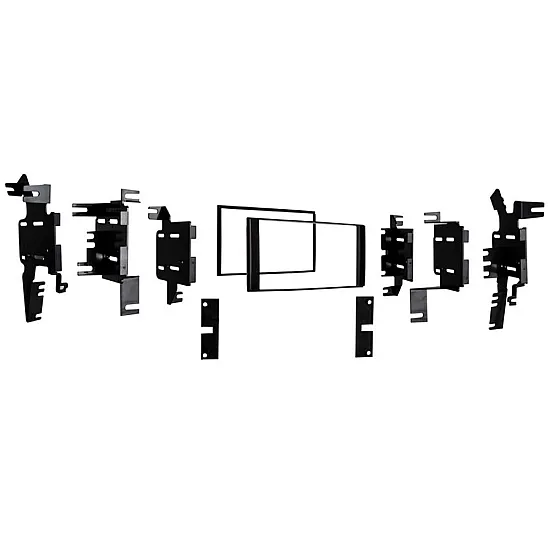

Double DIN fascia (50-797)

Replacement car audio fascia to enable you to change the original radio in the car to a Double DIN aftermarket version.This fascia adapter allows the fitting of an aftermarket radio into the cars dashboard by matching the shape, style, size and colour of the original OEM factory fitted radio.This fascia kit uses side fixing brackets, the brackets fit directly to the sides of the new radio and the fascia panel.

COLOUR: MATT BLACK

This product has been developed through carefully documented data and research. The manufacturer & supplier cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options, or damage that may occur in the vehicle during the installation of components. All application data is subject to change.

Refer to the compatibility section to check your vehicle variant is supported.
