JVC KW-M25BT Car Stereo Digital A/V Touch Screen Media Receiver - Bluetooth USB AV Input
- Stock Availability: In Stock
- Item Condition : New
- Model: KW-M25BT
- SKU: KW-M25BT
- 1 Year Warranty

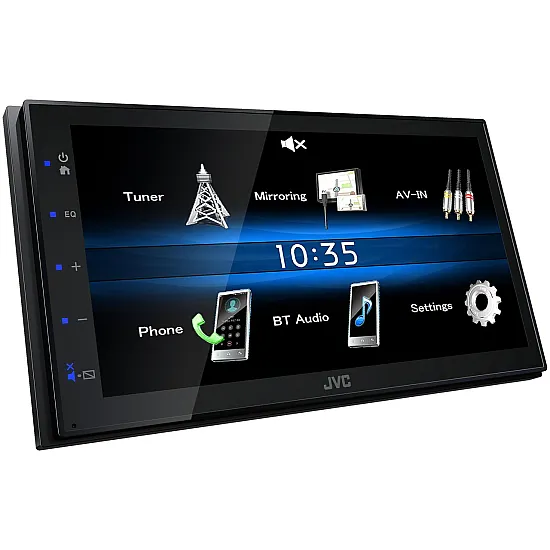

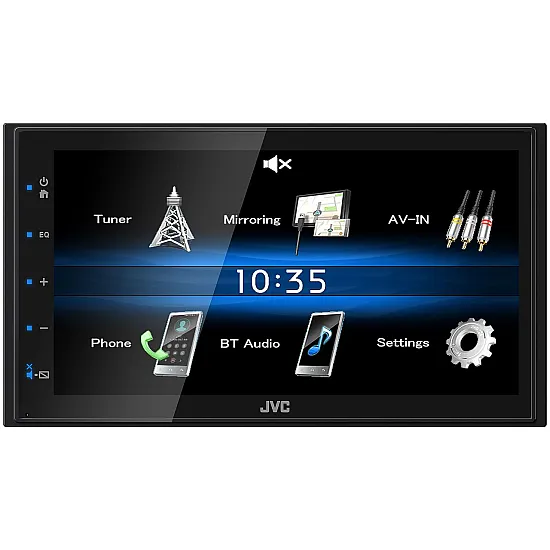

JVC KW-M25BT - 2Din Mechless Car Stereo
Short Body 6.8" Touch Screen, USB, Bluetooth, Android Screen Mirroring
JVC KW-M25BT Short Body car stereo Digital Media Receiver comes with Bluetooth technology for hands-free calling and wireless music streaming. Featuring Android screen mirroring via USB apps such as Waze Navigation and Google Maps can be displayed and controlled via the 6.8" touch screen. An optional rear view camera can be connected for reverse parking. This unit also includes iPhone/iPod music playback. Please note this is a mechless system, i.e. there is no CD mechanism included in this model. However, this reduces the depth of the product to 75mm which will fit into vehicles having less dashboard audio space than traditional products.
Bluetooth Wireless Technology
 | 2 Phone Full-Time Connection:You can connect two phones full time via Bluetooth, with secure and simple pairing. Calls to either phone can be received by a push of a key on the head unit. | |
 | iPhone Bluetooth Automatic Pairing:Just connect your iPhone via USB and the automatic Bluetooth pairing function will work. No complicated manual procedure to worry about. (*JVC Music Play application is required) | |
 | Bluetooth Hands-Free Profile 1.6HPF 1.6 Wideband Speech is supported, so you can now enjoy hands-free phoning convenience together with higher voice quality and improved noise reduction. Bluetooth AVRCP1.5 for Versatile Song SelectionIn addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose songs you want to hear from the folder name and song name lists. |
USB Mirroring For Android
 |
| Mirroring for JVC App For more information and to download the app, visit the Google Play Store |
| Enjoy a wide selection of Apps | |||||||
| Navigation | Video | Social Networking | |||||
 |  |  |  |  |  | ||
Short Body 2DIN Installation
Features
- Mirroring for Android (via USB)
- Android Music Playback (via Bluetooth(R))
- iPod/iPhone Music Playback (via USB or Bluetooth(R))
- Bluetooth(R) Wireless Technology (*Available functions depend on cell phone.)
- Bluetooth Hands Free Call (HFP)
- Bluetooth Audio Streaming & Control (A2DP, AVRCP)
- Bluetooth Voice Dialling (voice recognition compatible mobile phone required)
- Bluetooth Phone Book Access Profile (PBAP)
- 6.8" Clear Resistive with Printing
- Short Chassis
Technical Specification
Monitor
- Screen Size 6.8" Wide VGA
- Touch Panel Capacitive with Printing
- Key Illumination Colour Blue
- Multilingual Display Yes
Media Playback
- MP3 Compatible with Tag USB
- WMA Compatible with Tag USB
- WAV Compatible with Tag USB
- AAC Compatible with Tag USB
- FLAC Compatible with Tag USB
- H.264 Compatible USB
- WMV Compatible USB
- MPEG 1/2 Compatible USB
- MPEG 4 Compatible USB
- AVI/MKV Compatible USB
Bluetooth Control
- Built-In Bluetooth Yes (Version 4.2, Wired-Mic included)
- Hands Free Call Yes (HFP1.6 Wideband Speech)
- Audio Streaming & Control (A2DP, AVRCP) Yes
- Voice Dialling (voice recognition compatible mobile phone required) Yes
- Phone Book Access Profile (PBAP) Yes
Android Control
- Android Music Playback Yes (via Bluetooth(R))
- Mirroring for Android Yes (via USB)
iPod/iPhone Control
- iPod/iPhone Music Playback Yes (via USB or Bluetooth(R))
USB
- USB Port x1 (High Speed)
- Position Rear
- USB Power Supply Yes (1.0A)
Radio Tuner
- Radio Data System Yes
- Preset Stations 30 (6ch x 5band)
- Automatic Presetting (Strong Station Sequential Memory) Yes
- FM
- Frequency Range 87.5-108.0MHz
- AM
- Frequency Range (MW)531-1,611kHz
Audio
- AV Input RCA x 1
- Video Out RCA
- Pre-output Level/Impedance 2V / 10k ohms
- Rear view camera Input Yes
- Line Output Terminals 3 Pairs (Front (L/ R), Rear (L/ R), Sub.W (Mono) x1)
- Subwoofer Output with Level/Frequency Control Yes
Inputs and Outputs
- AV Input RCA x 1
- Video Out RCA
- Pre-output Level/Impedance 2V / 10k ohms
- Rear view camera Input Yes
- Line Output Terminals 3 Pairs (Front (L/ R), Rear (L/ R), Sub.W (Mono) x1)
- Subwoofer Output with Level/Frequency Control Yes
General
- Shallow Chassis Yes
- Face Type Fixed
- Wireless Remote Control Ready (RM-RK258 required)
- Steering Remote Control Ready Yes
- Dimensions (W x H x D)
- Installation Size 182 x 112 x 75 (mm)
- Unit weight in individual package 1.6kg
- Weight 1.1kg : including sleeve and escutcheon
To complete the installation of an aftermarket headunit (eg. Kenwood, Parrot ASTEROID, Alpine, Pioneer, Sony, JVC etc.) you will usually require additional fitting accessories. You may require a facia adapter - single DIN or double DIN, aerial adaptor, ISO stereo adapter or a stalk/steering wheel adaptor if you want to integrate your steering wheel buttons. You can substitute the ISO stereo adapter lead for a steering wheel adapter, if one is available for your vehicle. If you purchase our Connects2 steering wheel adapter you don't need to purchase an ISO stereo adapter lead as well. Refer to our car stereo fitting accessory section to purchase your car specific accessories. We stock the full range of stereo fitting parts, just ask if you need help.
If you have any questions please contact us via the ask a question link at the top of this page and we will gladly assist you. Below is a quick explanation of different fitting accessories that you may require to install your aftermarket car stereo.
Factory fitted In-car Infotainment systems and their wiring can be complex, so we always recommend that you have your installation carried out by a qualified installer. If you wish, Car Communications can arrange for your Car Stereo System to be installed at an address of your choice in the UK. To ensure we cover your area and provide you with a competitive no obligation quote, please contact us prior to placing your order.
Contact Us For A Competitive No Obligation Installation Quote
For added peace of mind, our products can be professionally installed at your home or workplace anywhere in the UK by our qualified and accredited network of engineers.
Stereo ISO adaptor harness allow connection to aftermarket stereo head units. Can also use steering wheel adapter instead.
Steering wheel adapter allows you to retain use of your steering wheel buttons. Avoids having to reach for car stereo controls in the dash.
Facia adaptors convert the aperture to DIN size used by aftermarket stereo head units
Aerial adaptor is often required to connect vehicles existing aerial to new aftermarket stereo
