Nissan Note (2006-2013) Double DIN car stereo upgrade fitting kit (WITH STEERING CONTROLS)

Complete stereo upgrade fitting kit to install a Double DIN aftermarket car stereo head unit and retain the use of the factory steering wheel controls in select Nissan Note (2007-2013) car models.

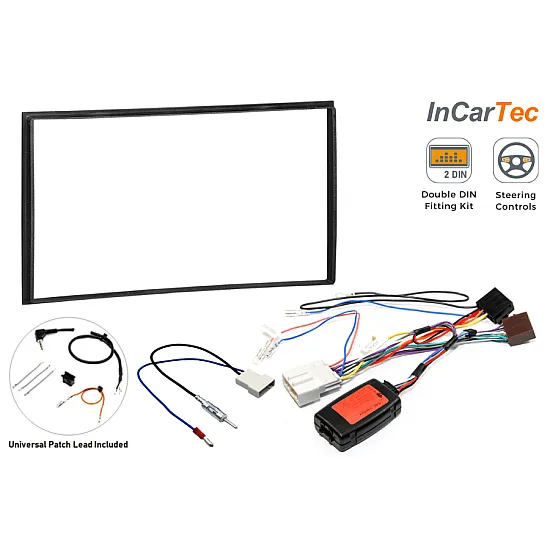

Fitting Kits Includes:

• Nissan rectangle to DIN car aerial antenna adapter cable (21-118K)
• Nissan (20 pin) steering control interface (29-678)
• 29-Series universal patch lead (29-025)
• Nissan Note Double DIN fascia (50-790)

Complete stereo upgrade fitting kit to install a Double DIN aftermarket car stereo head unit and retain the use of the factory steering wheel controls in select Nissan Note (2006-2013) car models.

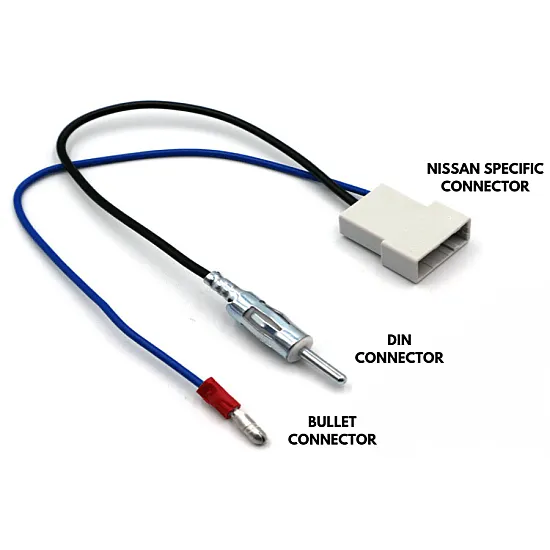

Nissan rectangle to DIN car aerial antenna adapter cable (21-118K)

Nissan (grey rectangle female antenna to male DIN connection) car aerial antenna adapter cable. This cable adapts from the grey plastic rectangle Nissan antenna connector in the car to a standard aftermarket male DIN connector, used when fitting a new aftermarket stereo.

Connection options

Option 1

This requires connecting the loose blue wire (male bullet connector) on the antenna adapter to the antenna turn-on wire (Female bullet connection) on our 29- Series steering wheel control interface.

1. Connect the vehicle specific connector to the original AM/ FM antenna connection in the car.
2. Connect the DIN aerial connection to the back of the after market radio.
3. Connect the bullet connector (on the blue wire) to the blue antenna turn on wire on the 29-Series interface.

Option 2

This requires connecting the loose blue wire (male bullet connector) on the antenna adapter to the antenna turn-on wire (Female bullet connection) on the new aftermarket radio harness.

1. Connect the vehicle specific connector to the original AM/ FM antenna connection in the car.
2. Connect the DIN aerial connection to the back of the after market radio.
3. Connect the bullet connector (on the blue wire) to the blue antenna turn on wire, or the blue/white remote turn on wire coming from the new aftermarket radio harness.

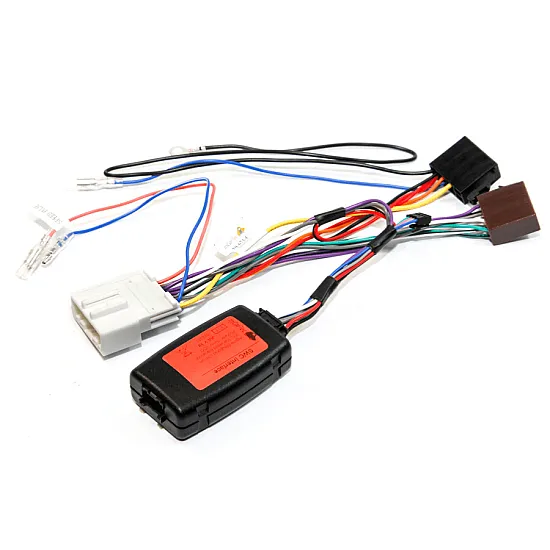

Nissan 20 pin radio replacement adapter cable and steering control interface (29-678)

Steering wheel control interface and adapter cable for Nissan Cube, Leaf, Micra K12C, Murano II, Note and X-Trail cars to fit an aftermarket radio upgrade.

The cable adapts from the 20 pin Nissan connector (the connector has a larger size terminal at either end of the connector) in the car to standard aftermarket ISO connectors. This replaces the need for a separate ISO radio replacement adapter cable. The steering wheel control interface is built in to the adapter cable for a plug and play installation.

This interface will allow the original audio control buttons on the steering wheel to work with the new aftermarket radio. The interface will work the volume, track skip, source and phone buttons. (6 function steering wheels)

This interface fits cars with the newer 20 way connector behind the radio which has two larger terminals on either side for power and earth. These radios will also have an additional smaller connector, this is used for CD changer and navigation audio. It is not used when changing the head unit.

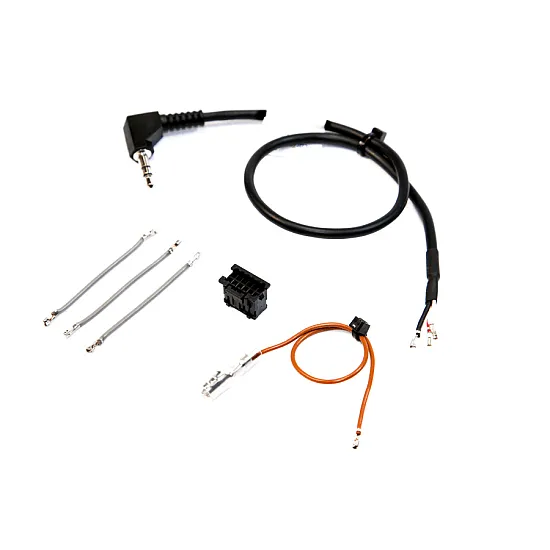

29-Series universal patch lead (29-025)

Universal patch lead to be used with In car Tec 29- series steering wheel control interfaces. Use for Alpine, Clarion, JVC, Kenwood, Pioneer, Sony, Zenec, Philips, Dynavin and non branded Chinese head units.

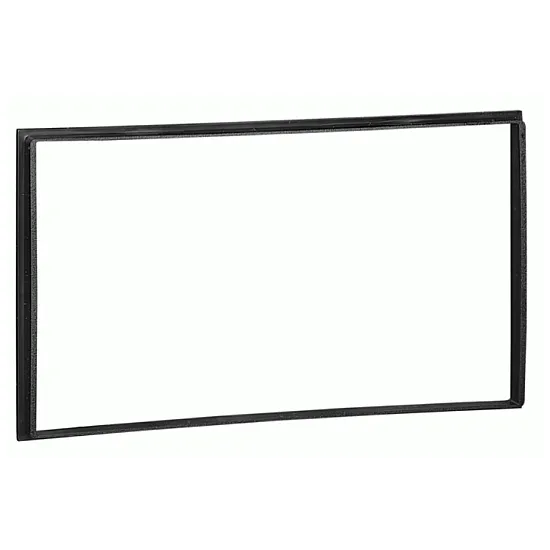

Nissan Note Double DIN fascia (50-790)

Replacement car audio fascia to enable you to change the original radio in the car to a Double DIN aftermarket version. When fitting a new head unit using the cars original mounting brackets, a small gap is sometimes left around the unit. This trim fills out the gap for a neater finish. Suitable for various Nissan vehicle models, can also be used on other vehicles as a "universal" trim.

COLOUR: MATT BLACK

This product has been developed through carefully documented data and research. The manufacturer & supplier cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options, or damage that may occur in the vehicle during the installation of components. All application data is subject to change.

Refer to the compatibility section to check your vehicle variant is supported.
