Mazda 3 (2nd Generation) BL (2009-2013) Single/ Double DIN car stereo upgrade fitting kit (BOSE AUDIO)

Complete stereo upgrade fitting kit to install a Single or Double DIN aftermarket car stereo and retain use of the factory steering wheel audio controls in Mazda 3 (2nd Generation) BL (2009-2013) car models with factory BOSE audio systems. This fitting kit allows the fitting of an aftermarket Single or Double DIN car stereo into the cars factory dashboard by matching the shape, style, size and colour of the original OEM factory fitted radio.

A car radio ISO lead and steering wheel control interface is also included, allowing the fitting of an aftermarket car stereo upgrade by adapting the original connector to standard aftermarket ISO connectors, as well as retaining use of the factory steering wheel audio controls. An ISO to ISO amplifier integration interface (20-273) is included with this fitting kit. This interface converts the high level audio output of the new car stereo head unit to a low level pre amplified signal which will work with the factory BOSE amplifier. With 4 adjustable channels which can be tuned for optimum audio quality, this interface has a built in ground loop isolator and filters to get the best sound from the factory fitted BOSE amplifier.

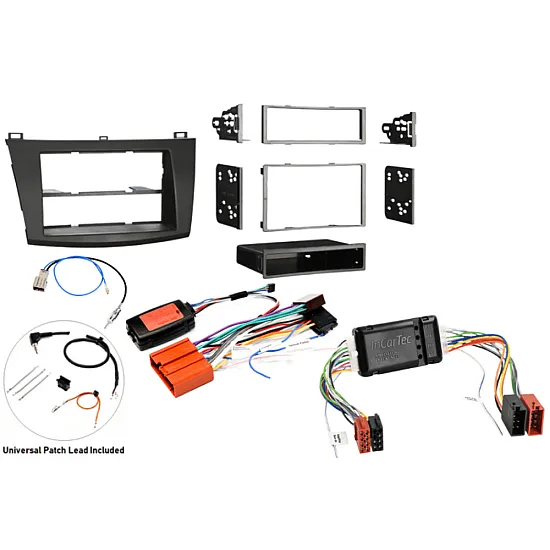

This head unit fitting kit includes:

• BOSE audio amplifier integration interface (20-273)
• Mazda antenna adapter (21-116)
• Mazda ISO cable & Steering control interface (29-719)
• 29-Series Universal patch lead (29-025)
• Mazda 3 Single/Double DIN car audio fascia (50-354)

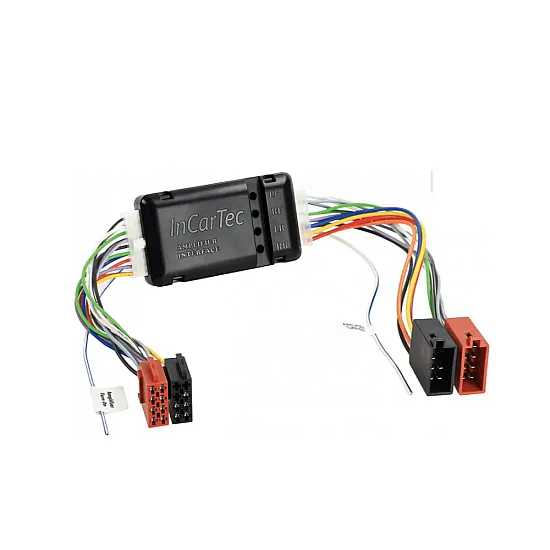

BOSE audio amplifier integration interface (20-273)

This 4 channel adjustable ISO to ISO amplifier interface is used to install a new radio in a car that has an original fit amplifier that takes a pre amplified audio feed. The interface converts the high level audio output of a new head unit to a low level pre amplified signal which will work with an amplifier. 4 adjustable channels for optimum audio quality, it has a built in ground loop isolator and filters to get the best sound from the amplifier.

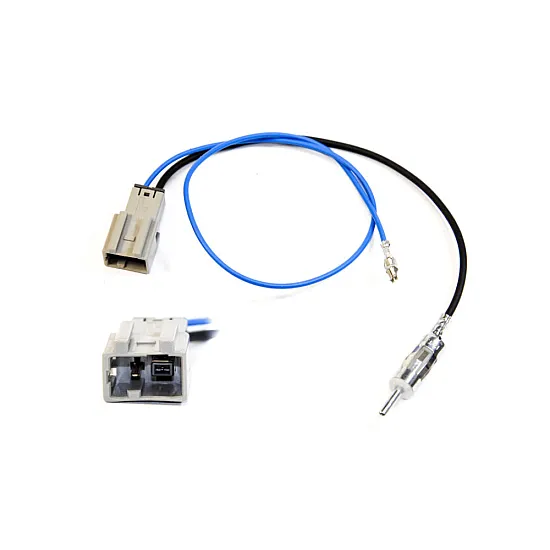

Mazda antenna adapter (21-116)

This cable converts the cars existing aerial plug to an aftermarket DIN type used by most car radio manufacturers.

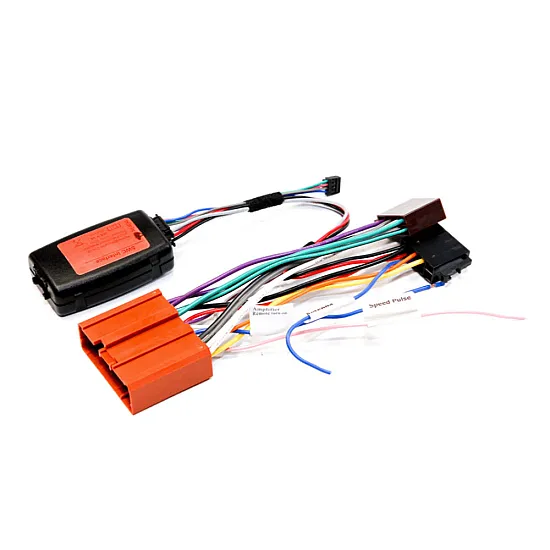

Mazda ISO cable and steering wheel control interface (29-719)

Car Audio Steering wheel interface and ISO cables allowing use of original buttons with a new aftermarket head-unit. This interface will retain the use of the steering wheel audio controls with an aftermarket head unit, as well as telephone buttons/ phone commands. It will also provide a vehicle speed pulse output.

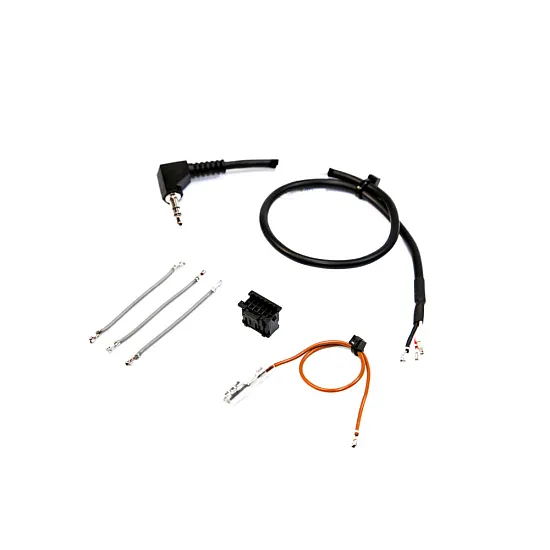

29-Series Universal patch lead (29-025)

Universal patch lead to be used with In car Tec 29- series steering wheel control interfaces. Use for Alpine, Clarion, JVC, Kenwood, Pioneer, Sony, Zenec, Philips, Dynavin and non branded Chinese head units.

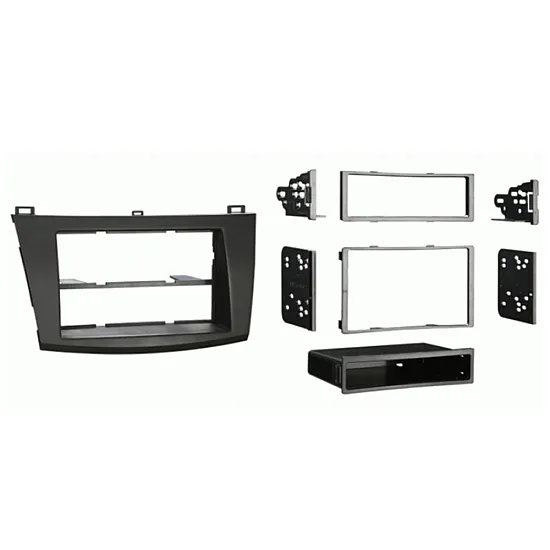

Mazda 3 (2009-2013) Single/Double DIN car audio fascia with removable pocket (50-354)

Replacement car audio fascia to enable you to change the original radio in the car to a single and double DIN aftermarket version. This multi kit has side fixing brackets for a flush fit so no cage is needed if you are fitting a Double Din unit. A removable pocket is included for Single DIN installation.

COLOUR: MATT BLACK

This product has been developed through carefully documented data and research. The manufacturer & supplier cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options, or damage that may occur in the vehicle during the installation of components. All application data is subject to change.

Refer to the compatibility section to check your vehicle variant is supported.
