Skoda Yeti Double DIN car stereo upgrade fitting kit (Steering wheel controls) Double Fakra

Complete stereo upgrade fitting kit to install a Double DIN aftermarket car stereo head unit and retain the use of the steering wheel controls in various Skoda Yeti (2009-2014) car models.

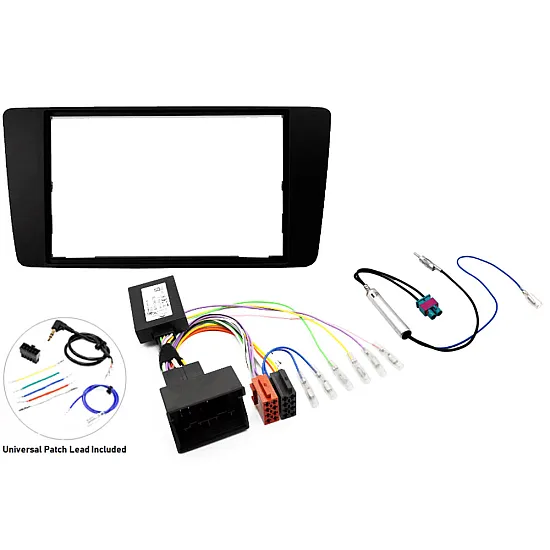

This head unit fitting kit includes:

• Double Fakra to DIN aerial adapter (Phantom Power) with Bullet connector (21-139K)
• Radio replacement steering wheel adapter interface (49-VW-02)
• Universal SWC Patch Lead (49-025)
• Double DIN car audio fascia adapter (50-713)

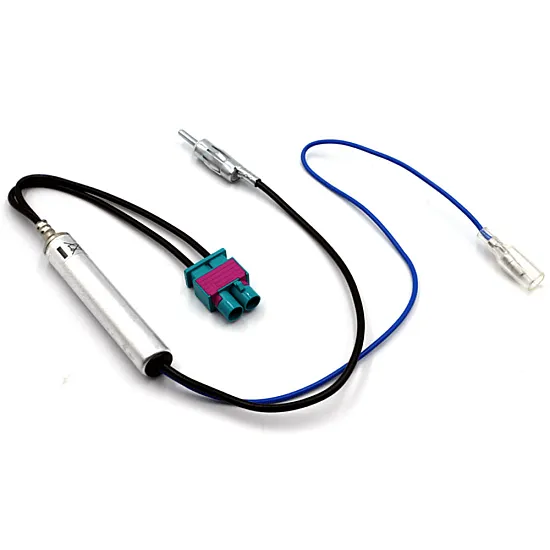

Double Fakra to DIN aerial adapter (Phantom Power) with Bullet connector (21-139K)

Double Fakra to DIN antenna adapter cable with 12v phantom power from a male bullet connection. This antenna adapter cable adapts from the original Double Fakra connector in the vehicle to a standard aftermarket radio DIN antenna connection for the fitting of a stereo upgrade.

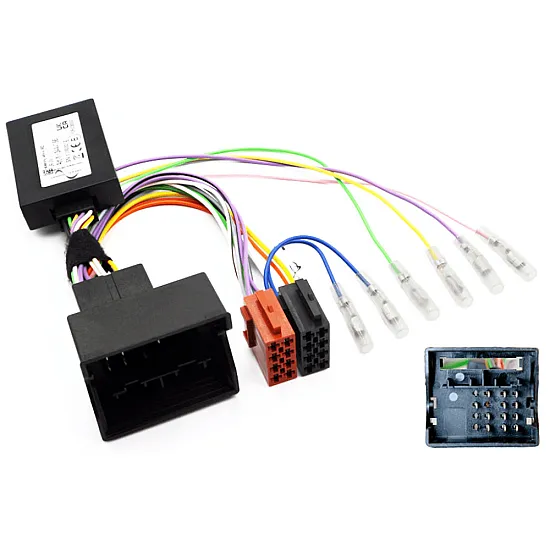

Steering wheel control, PDC and climate interface (49-VW-02)

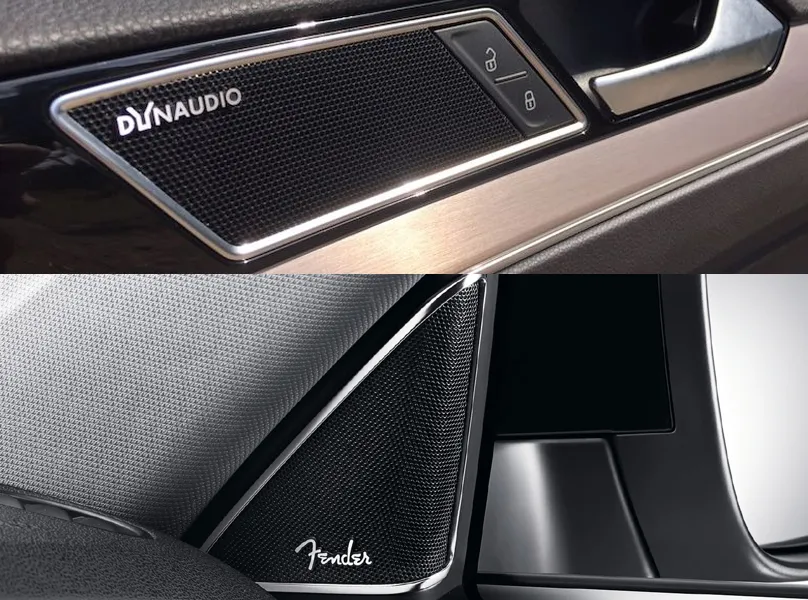

Provides CANbus ignition to the new radio and CANbus speed pulse, reverse gear and handbrake outputs. The interface also provides a CAN amplifier turn on signal for cars fitted with the original Dynaudio and select Fender sound systems. (These systems can be identified by the branding on the speaker grilles, pictured below)

This interface also retains the original parking sensor display, (Parking Distance Control - PDC) and climate control information that is shown on the original radio. IF AVAILABLE ON THE VEHICLE

This information is transferred to the white display on the instrument cluster.

Please note: The PDC and climate info is shown on the cars central display between the clocks, NOT ON THE NEW RADIO

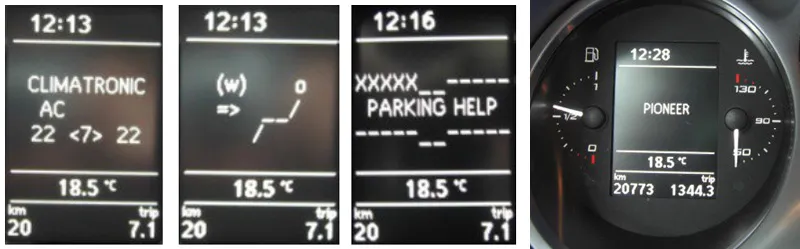

See the example images below for how the information is displayed and the white display which is compatible.

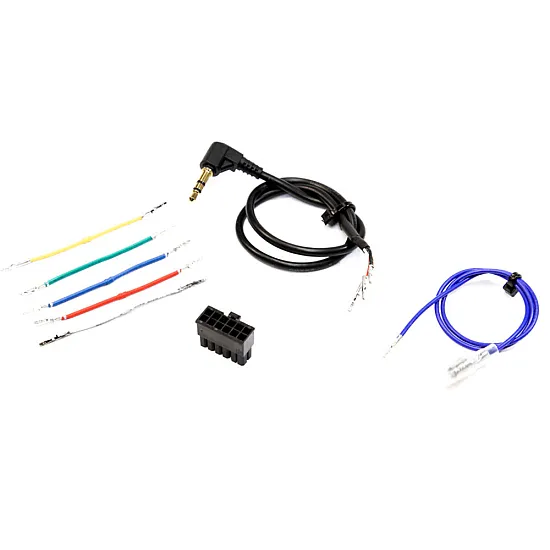

Universal SWC Patch Lead (49-025)

Universal patch lead to be used with In car Tec 49 series steering wheel control interfaces. Use for Alpine, Clarion, JVC, Kenwood, Pioneer and Sony head units.

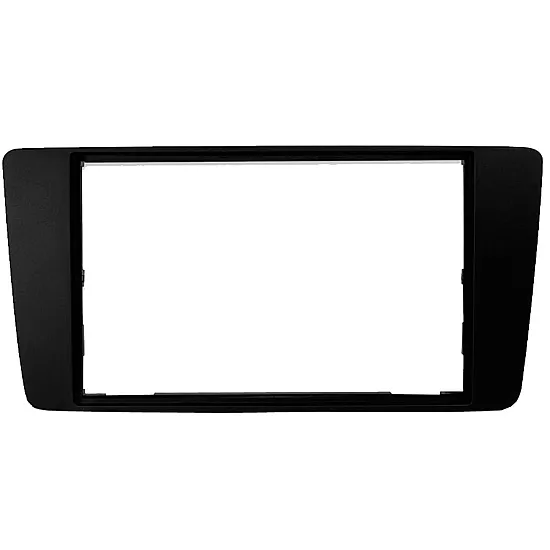

Skoda Yeti (2009-2014) Double DIN car audio fascia adapter panel (50-713)

Replacement car audio fascia to enable you to change the original radio in the car to a Double DIN aftermarket version. This fascia adapter allows the fitting of an aftermarket radio into the cars dashboard by matching the shape, style, size and colour of the original OEM factory fitted radio. If fitting a Double DIN unit this fascia takes a 113mm high cage, this is the size of cages supplied with all major brand head unit manufacturers. If a cage is needed, we sell a matching cage with part number 51-013.

COLOUR: MATT BLACK

This product has been developed through carefully documented data and research. The manufacturer & supplier cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options, or damage that may occur in the vehicle during the installation of components. All application data is subject to change.

Refer to the compatibility section to check your vehicle variant is supported.
