Volvo C30/C70/S40/V50 Single DIN Car Stereo Upgrade Fitting Kit (AMPLIFIED)

Complete stereo upgrade kit to install a Single DIN aftermarket car stereo and retain the use of the steering wheel audio controls in Volvo C30/C70/S40 and V50 car models (WITH AMPLIFIED SOUND SYSTEMS)

This kit also retains phone button controls, warning chimes/parking sensor audio and provides outputs for Park Brake, Reverse Gear and Speed Pulse.

PLEASE NOTE: ONLY SUITABLE FOR MODELS WITH AMPLIFIED SOUND SYSTEMS, FOR NON-AMPLIFIED SYSTEMS PLEASE USE FK-550

This kit is the equivalent of Connects2 part: CTKVL05

This kit will power all the speakers apart from the centre channel speakers (usually found on Dynaudio Sound Systems)

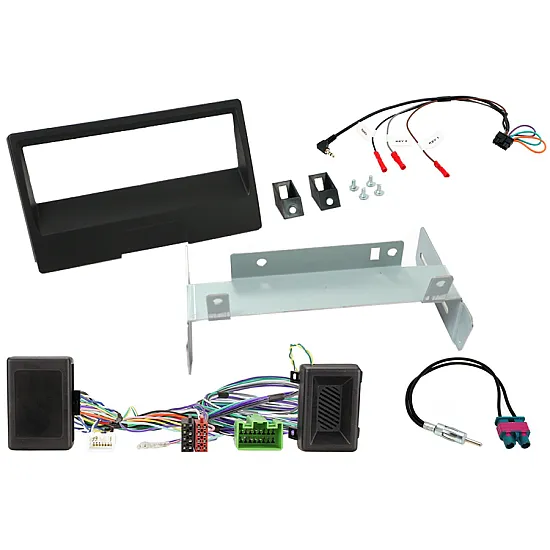

Kit Features

• Allows for the installation of a single DIN aftermarket stereo
• Retains steering wheel control functionality
• Retains phone button functionality
• Retains amplified system
• Retains warning chimes/parking sensor audio (via integrated speaker)
• Provides outputs for speed pulse, park brake and reverse gear
• Kit includes universal patch lead and antenna adapter
• Includes mounting brackets and fitting accessories

Does not retain original display showing any car settings, temperature and fan speed on climate system.

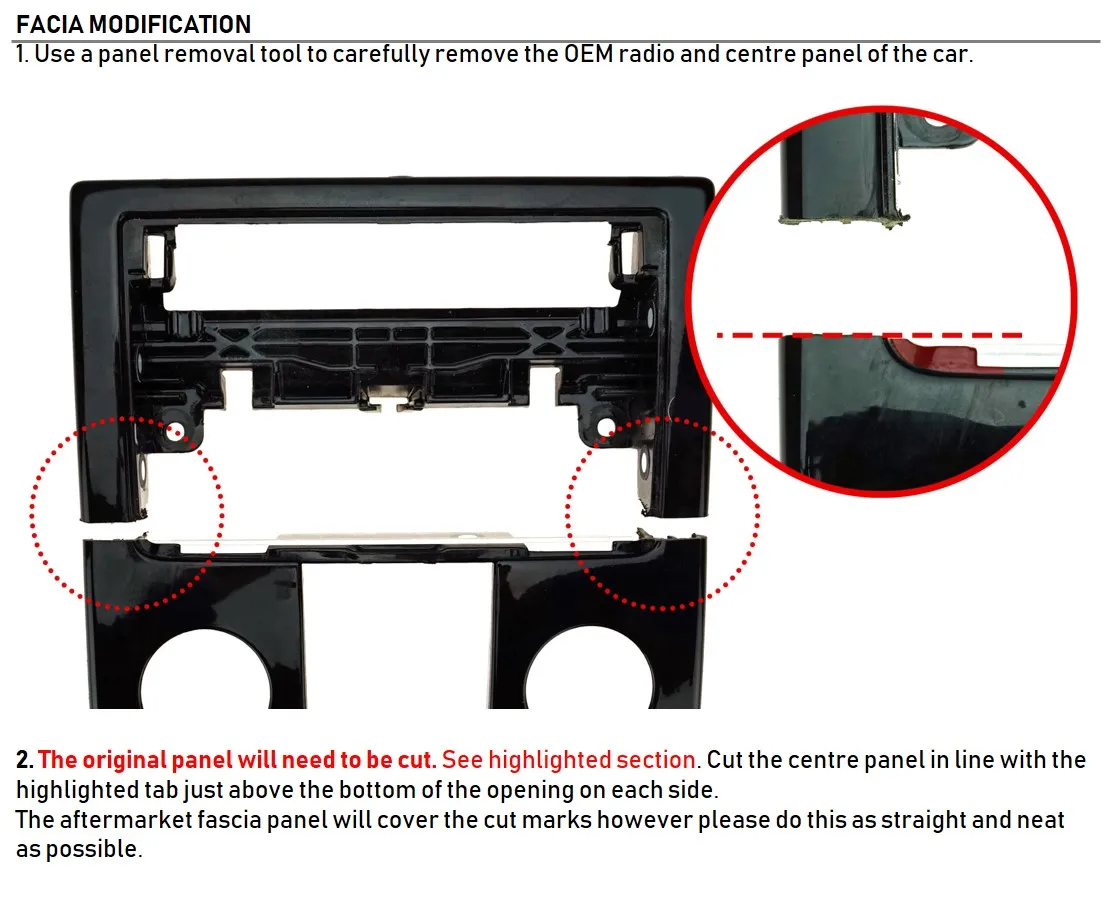

FASCIA MODIFICATION REQUIRED

The original fascia panel will need to be cut (Please see picture below) We recommend this should be done by a professional car audio technician/ installer.

On amplified sound systems, you will need to unplug the original OEM amplifier and connect to the supplied amplifier bypass cable. It will power all the speakers apart from centre channel speakers (usually found on Dynaudio Sound Systems)

High Performance/ Premium Sound Systems Examples

All Volvo C30/C70/S40 and V50 car models from 2004-2012 had 3 different sound systems:

1. Performance Sound (NON-AMPLIFIED)

This was fitted as the standard sound system for most of these Volvo Models. Although it had a couple of variations in its model years, it typically consisted of a standard 6 or 8 speaker set up system

2. High Performance Sound (Amplified)

This was fitted both as standard on Higher Spec Volvo models and as an optional upgrade. An easy way to tell if your vehicle is fitted with this system is when the radio powers up it will show on the radio display as 'HIGH PERFORMANCE SOUND'

3. Premium Sound (Amplified) Either DYNAUDIO or DOLBY PRO LOGIC II

This was fitted as an optional upgrade. An easy way to tell if your vehicle is fitted with this system is when the radio powers up it will show on the radio display as PREMIUM SOUND' This sound system is easier to identify as their will usually be a DYNAUDIO badge on some of the sound equipment. For E.G. On top of the centre speaker above the radio (Centre Dashboard)

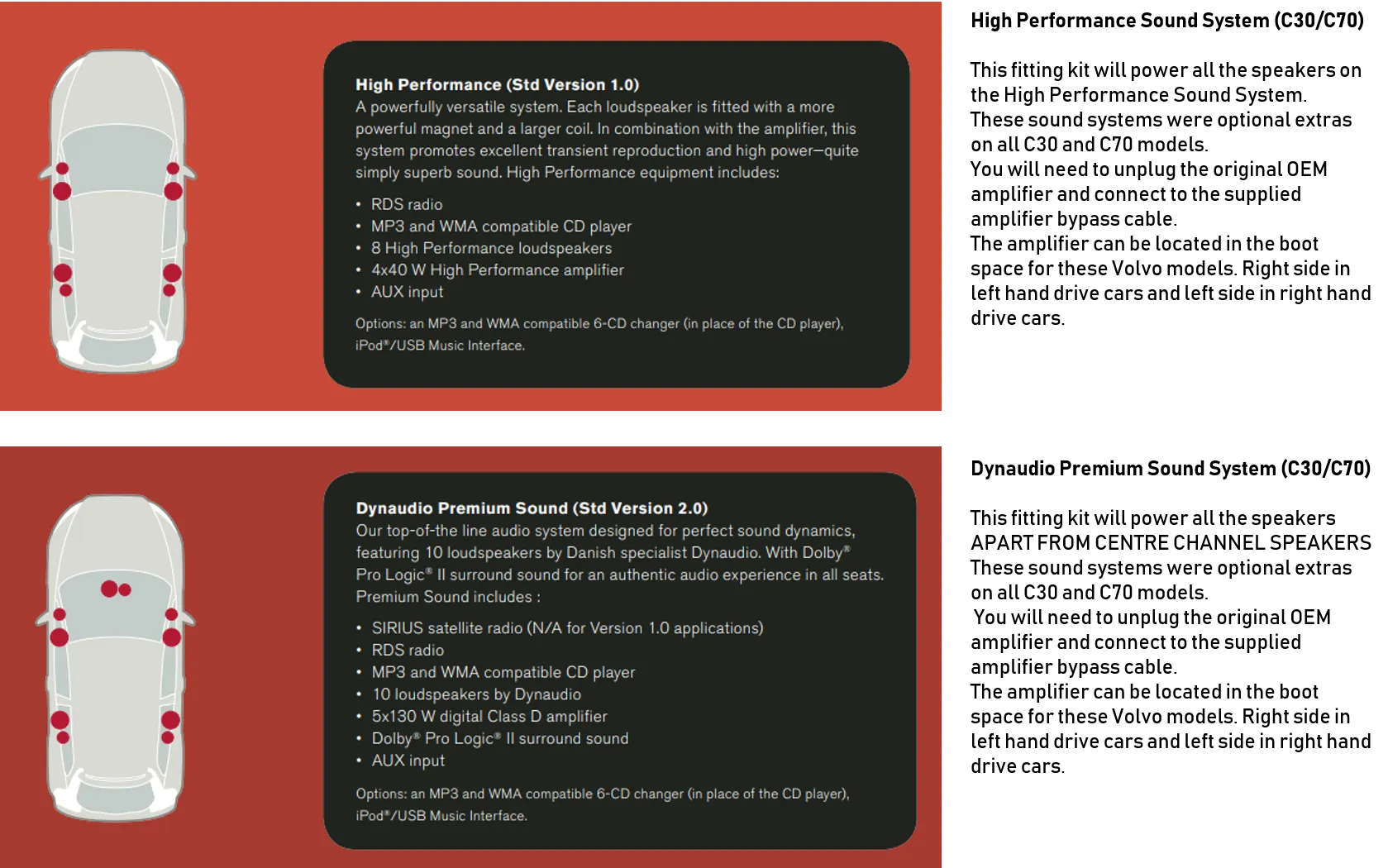

Below are some examples of the sound systems installed on C30 and C70 (2007-2013) car models.

This product has been developed through carefully documented data and research. The manufacturer & supplier cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options, or damage that may occur in the vehicle during the installation of components. All application data is subject to change.

Refer to the compatibility section to check your vehicle variant is supported.
