Ford S-Max Reversing Rear View Camera Kit - SYNC 3
- Stock Availability: In Stock
- Item Condition : New
- Model: RVC-SMAX-SYNC3
- SKU: RVC-SMAX-SYNC3
- 1 Year Warranty
Available Options
Optional Installation Package
You are being offered an Installation Service at an additional cost. If you select the installation option, the purchased product will be professionally Installed at your home or workplace by our network of Qualified & Accredited Installation Engineers. You will be contacted by a member of our installation booking team after you have placed an order (Within 72 hours). To be sure we cover your area, please contact us before selecting this option.
We also offer Discounted competitive rates if Installations are carried out at our Workshop in Blackburn. Please contact us for a competitive quote.
Please choose the correct option from the list
Commercial vehicles & Motorhomes - Vans (Small & large), Mini Vans, Taxis, Buses, Mini Buses, Trucks, HGV's, Motorhomes, Campervans
Non- Commercial - Standard Sized 2/4/5 Door Family cars (not used for commercial purposes)
Please note: Incorrect selection will be charged the difference before the install takes place. If you are unsure of the correct selection, please contact us first.

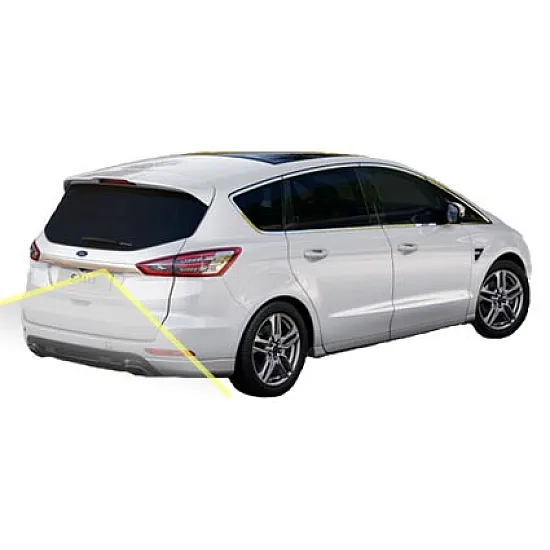

Rear View Camera Kit for Ford S-Max (SYNC 3)

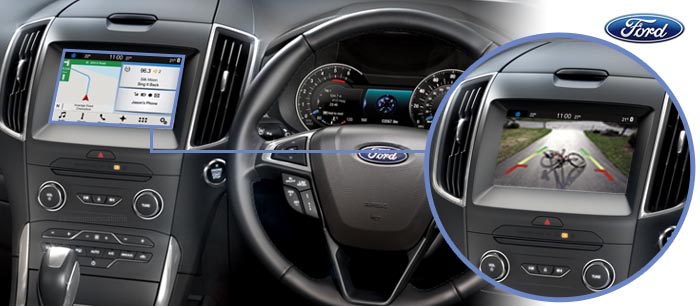

An integrated high quality rear view camera kit, designed to work with your Ford S-Max's factory infotainment system. This retrofit solution is compatible with vehicles manufactured from 2015 onwards. The solution includes a discreet camera, which provides guidelines. The high quality camera provides a clear & crisp image on the factory fittred infotainment screen to aid you with reversing and parking.

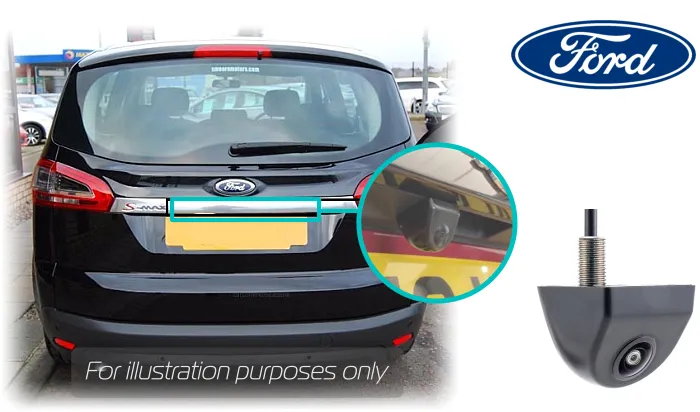

Bolt Camera
The high quality wide angle camera, is drilled in just above the number plate. This provides a discrete look, similar to the factory fitted options. The camera provides a clear & crisp image on the infotainment screen, to aid you with reversing and parking. The camera will operate perfectly well in rainy low light conditions too.
Specifications
- 2 different auxiliary lines: switched off at the factory (can be switched on)
- black matt plastic housing with stainless steel fastening
- Mirrored image reproduction (adjustable)
- Image display rotated 180° (adjustable)
- Image sensor type 1/4 '' 1233 HD Color CMOS Low Light Sensor
- NTSC video signal output
- Resolution 960H480V pixels
- DIN protection class IP69K
- 800 TV lines
- Exposure 60 fileds per seconds
- Signal to noise ratio >46dB
- Dynamic Range >74dB
- Light sensitivity <0.01 Lux / F1.2
- Output signal 1.0Vp-p, 75 OHM
- Automatic white balance
- Automatic video level adjustment
- Operating voltage 12 volts DC
- Power consumption 25-55mA
- Diagonal viewing angle 188°
- Horizontal viewing angle 155°
- Vertical viewing angle 113°
- Camera dimensions 25.8 x 28.2mm and 20.8mm high
- 8mm mounting hole
- Working temperature -40°C to +75°C
- Storage temperature -60°C to +105°C
- E certified
This kit has been specially designed for the Ford S-Max and has been perfected to work fully integrated with the factory fitted screen. Our kit maintains all of the factory options as standard. A Camera activator is supplied with this kit.
NOTE: Once used on the car the the supplied camera activator will not work with other cars, it is important to keep this activator safe as it can be used again on the same vehicle if it is needed in the future.
Benefits of having a reverse camera in your Ford S-Max
- Guidelines can be really helpful so the driver can accurately estimate the width of the vehicle parking space whilst reversing.
- The driver can see any obstructions behind the vehicle during the reversing manoeuvre
- The driver can see any any blindspots which are not visible to the driver
- Greater vehicle safety management during reversing manoeuvres
- Makes reversing much safer and more convenient
*Installation is optional via the dropdown
 | Refer to the compatibility section to check your vehicle variant is supported. |
NOTE: A reversing camera kit is ONLY a Parking Aid and should not be relied on solely. Please check your surroundings at all times before carrying out a Reversing Manoeuvre. Where Guide lines are included, the guide lines are generic to all vehicles and hence fixed width and not adjustable to the width of the vehicle.
Installation section
Factory fitted In-car Infotainment systems and their wiring can be complex, so we always recommend that you have your installation carried out by a qualified installer. If you wish, Car Communications can arrange for your RVC Kit to be installed at an address of your choice anywhere in the UK. Please select from addons options above before adding the purchase to your cart. During the checkout process you will be asked for your preferred date(s) and time for the installation.
For added peace of mind, our products can be professionally installed at your home or workplace anywhere in the UK by our qualified and accredited network of engineers.
NOTE: Once used on the car the supplied camera activator will not work with other cars, it is important to keep this activator safe as it can be used again on the same vehicle if it is needed in the future.
