Grab Handle Reversing Camera for Ford Mondeo, Fiesta, Focus, C-Max , S-Max
- 1 Year Warranty
Available Options
3.5" Dash Monitor
| 5" Dash Monitor
|
4.3" Mirror Monitor
| 7" Mirror Monitor
|
6" Dash Mounted Monitor 7" Dash Mounted Monitor
Optional Installation Package
You are being offered an Installation Service at an additional cost. If you select the installation option, the purchased product will be professionally Installed at your home or workplace by our network of Qualified & Accredited Installation Engineers. You will be contacted by a member of our installation booking team after you have placed an order (Within 72 hours). To be sure we cover your area, please contact us before selecting this option.
We also offer Discounted competitive rates if Installations are carried out at our Workshop in Blackburn. Please contact us for a competitive quote.
Please choose the correct option from the list
Commercial vehicles & Motorhomes - Vans (Small & large), Mini Vans, Taxis, Buses, Mini Buses, Trucks, HGV's, Motorhomes, Campervans
Non- Commercial - Standard Sized 2/4/5 Door Family cars (not used for commercial purposes)
Please note: Incorrect selection will be charged the difference before the install takes place. If you are unsure of the correct selection, please contact us first.

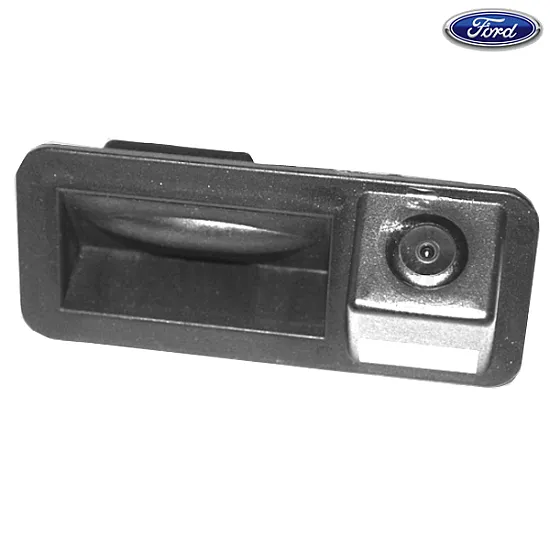

Ford Boot Handle Camera
Retro fit reversing camera solution
Color rear view camera for Ford - Mondeo / Fiesta / Focus / C-Max / S-Max. SONY 1/3” colour CCD camera lens for best reproduction quality. Replaces the original Boot handle for easy installation.
This reversing camera is specially designed for Ford vehicles. The camera includes a video extension RCA cable kit which allows easy plug and play installation. Just remove the existing boot handle and replace it with the supplied boot handle camera. The camera is water proof and shock tested to IP68 certification level. All the oe cameras are Sony CCD lenses and chipsets, with grid lines and 105 degree angle lens.
Note: This camera is intended for use in retrofit reversing camera solutions and will not replace the existing factory fitted Ford Oem camera.
 |  |
Images are for illustration purposes only. The camera shows static picture lines. These are guides to help you judge the distance to the object and ideal for parking.
Features:
- Visual Display: Yes
- Format: NTSC
- Distance to Object indicator: Yes
- IP rating: IP68
- Screen Resolution: 600 (TV Lines)
- Lens Angle (In Degrees): 105
- Image: Mirror
- Storage Temperature: -40 C to +80 C
- Operating Temperature: -20 C to +70 C
- Image Sensor: Colour 1/3"SONY CCD
- Camera Sensing area: 4.9 x 3.7 mm
- Dimensions - 93mm x 39mm
The following is provided in the kit:
- Boot Handle Camera
- Video extension cable (RCA)
Displaying the Reverse Camera Image:
You can either connect the camera to the vehicle's own radio through an optional interface module which will display the rear view image on the radio screen. The interface will be specific to your car model/radio and can be purchased as an optional extra. Please contact us to check compatibility and availability.
You may alternatively choose our universal mirror or Dash mounted monitor options. The mirror or Dash monitor option is recommended if an interface module is not supported on your vehicle. The mirror monitor & Dash mounted monitor solutions are budget options and can be DIY fitted, whereas the retrofit interface will usually need to be fitted by a qualified auto technician.
Factory fitted In-car Infotainment systems and their wiring can be complex, so we always recommend that you have your installation carried out by a qualified installer. If you wish, Car Communications can arrange for your Reversing Camera Kit to be installed at an address of your choice anywhere in the UK. Please select from addons options above before adding the purchase to your cart. During the checkout process you will be asked for your preferred date(s) and time for the installation.
