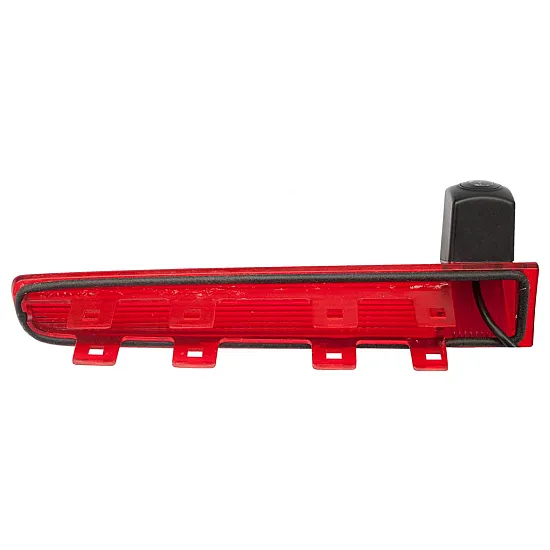

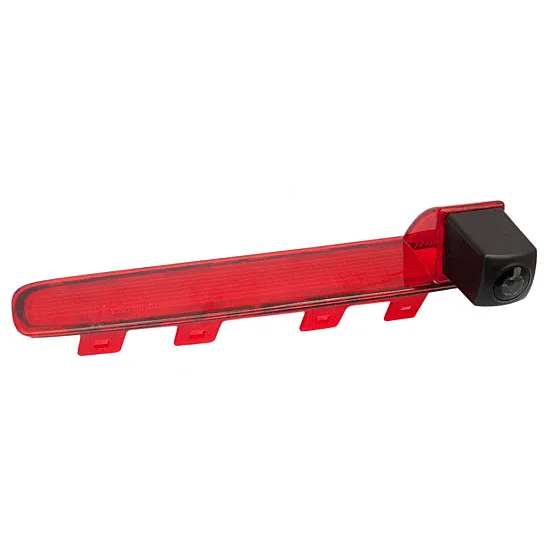

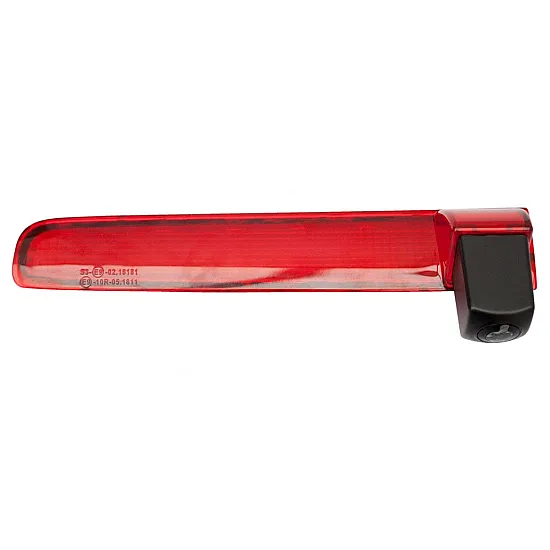

Brake Light Reversing Camera

Volkswagen T5 (2009+) and T6 (2015+) with Barn Doors

Colour rear view camera for Volkswagen T5 (2009+) and T6 (2015+) with Barn Doors. SONY 1/3” colour CCD camera lens for best reproduction quality. This replaces the original brake light with a camera built in included for easy installation.

This reversing camera is specially designed for Volkswagen vehicles. The camera is complete including video extension RCA cable kit which allows easy plug and play installation. Just remove the existing brake light and replace it with the brake light reversing camera. The camera is water proof and shock tested.  The Camera has a Sony CCD lens and chipset, with grid lines and 170 degree angle lens.

Features:

• Dimensions - 187mm x 34mm
• PAL/NTSC
• IP68 waterproof rating
• 170° Viewing angle
• Sony CCD lens
• 700 TV lines

The following is provided in the kit:

• Volkswagen brake light reversing camera
• Video extension cable (RCA) - 15m
• 6 Months Warranty

Displaying the Reverse Camera Image:

You can either connect the camera to the vehicles own radio through an optional interface module which will display the rear view image on the radio screen. The interface will be specific to your car model/radio and can be purchased as an optional extra. You may alternatively choose our universal mirror monitor. The mirror monitor option is recommended if an interface module is not supported on your vehicle. The mirror monitor is a budget option and can be DIY fitted, whereas the OEM interface will usually need to be fitted by a car technician.
