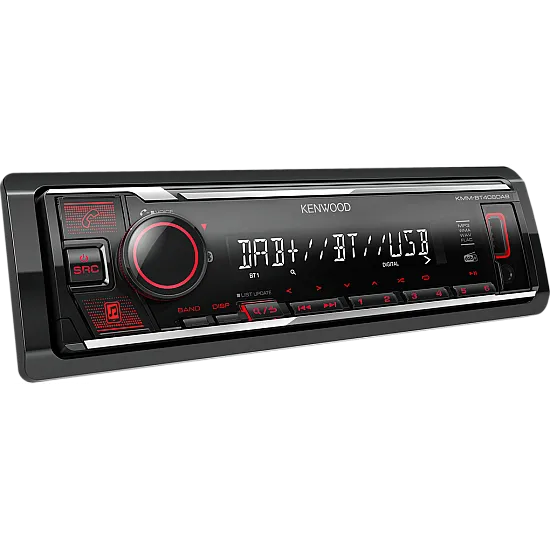

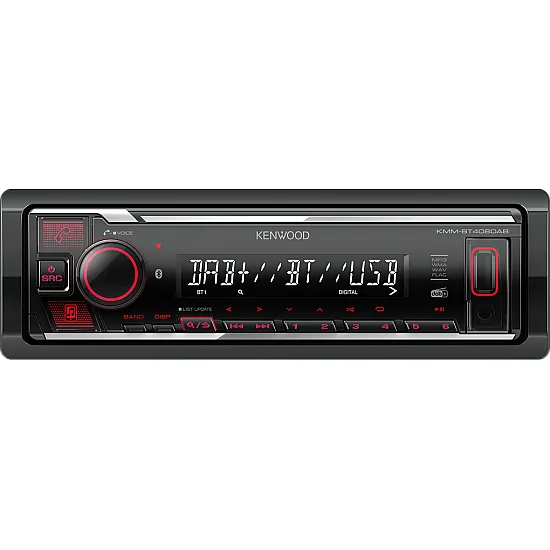

Kenwood KMM-BT408DAB 1DIN DAB+ Car Stereo
- Stock Availability: In Stock
- Item Condition : New
- Model: KMM-BT408DAB
- SKU: KMM-BT408DAB
- 1 Year Warranty
Experience cutting edge connectivity
Digital Media Receiver with Digital radio DAB+, Bluetooth technology
Enjoy convenient control. Cristal clear Digital Radio DAB+. Built-in Bluetooth technology for hands-free calls and music streaming and the ability to use your smartphone like a wireless remote control. The Digital Sound Processor, Time Alignment & 13-Band EQ ensures you of optimal sound tuning enhancements.
Kenwood KMM-BT408DAB single DIN in-car audio system features some of the latest cutting edge technology to keep you entertained during your journey. This compact 1DIN short body digital media receiver has built in DAB+ Digital Radio. The Built-in Bluetooth connectivity allows you to easily connect your smartphone to the head unit, whether it's an Apple iphone or the latest Android device. Use Spotify to stream your favourite music on the move. Front USB and AUX ports allows easy connectivity of USB storage devices, or devices with an AUX connection, to play your stored music. Utilise the onboard USB port to charge your mobile devices. For added security, the front faceplate can be detached and taken out of the vehicle.
 |  |  |  |
Key Features - KMM-BT408DAB
- DAB+ Digital radio, analog FM radio with RDS functionality and AM radio reception.
- Bluetooth technology for hands-free calls and music streaming.
- Dual Phone Connection switches automatically between the 2 paired phones for incoming calls.
- Use your smartphone like a wireless remote control with the KENWOOD Remote app.
- Front AUX input & Illuminated USB with dust cover
- MP3 / WMA / AAC / WAV / FLAC music file playback
- Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements.
- Wide 1 line LCD display with high contrast, wide viewing angle & white LED backlight.
- Menu language in English(default), Russian, Spanish or French.
- Short body (100mm) for easy installation
General Features
- DIN Size 1 DIN
- Detachable Faceplate Yes
- Key Illumination Red LED
- Rotary Encoder & Control Knob Yes
- Dual Accent Key Handsfree & Audio Streaming
- Back-up Memory Menu Settings
- Touch Sensor Tone Yes
- Digital Clock (24H) Yes
- Clock display when power-off default off
- All-off Select (20/40/60 minutes) Yes
- Built-in Connector Mitsumi, 16 pin
- ISO connector Yes, Mitsumi to ISO cable
- Bluetooth unit built-in Yes
- USB interface x 1 Yes
- Firmware upgreadable Yes
- Mechless receiver Yes
- Short body Yes
Display Features
- Display Type Liquid Crystal Display (LCD)
- Display Layout 1 line 13 Segments x 13 Digit
- Vertical Aligment Liquid Crystal Display Yes
- Display Illumination White (LED)
- Dimmer Control Manual / Set by Timer
- Brightness control 0 - 31 steps
- Demo Mode Yes
- Menu text in selectable language English(default) / Spanish / French / Russian
- TAG Language Display English, Spanish, Russian & Greek
Cosmetics Features
- Front/edge Black Injection
- Dress plate Black Injection
- Preset key finish Black Injection
- Escutcheon finish Black Injection
- Triangle Illumination Red LED
- Front terminals dust cover Yes
- Key illumination Red LED
- Illuminated front USB port Red LED
- Display illumination White LED
- Brightness Control (Key) 0 - 31 step
- Brightness Control (Display) 0 - 31 step
- Dimmer Control (Key) Manual / Set by Timer
- Dimmer Control (Display) Manual / Set by Timer
Tuner Features
- Station Select Manual / Preset
- Tuner preset/recall key Yes
- FM Reception Yes
- FM Stereo / Mono Selector Yes
- AM (MW/LW) Reception Yes
- Tuning mode Auto1/Auto2/Manual
- Up/Down Seek/Scan Yes
- Tuner Presets (FM/AM) 24 Presets (18FM / 6AM)
- Mixed preset memory (FM & AM) 6 presets
- Automatic Memory Entry (AME) Yes
- Tuner Preset Back-up Memory Yes
- Radio Data System Yes
- Radio Text Plus Yes
- Traffic Information Yes
- Local search Yes
- AF Regional Selectable: AF/AF Reg/OFF
- Auto TP search Yes
- Enhanced Other Networks Function (EON) Yes
- Program Type Function (PTY) Yes
CE DAB Tuner Features
- DAB+ tuner built-in Yes
- Digital Radio Certification Mark Yes
- Intelligent seek Yes, (Service, Ensemble & Component)
- Tuning mode / Seek mode Auto1/Auto2/Manual
- Service preset 6 ch * 3 bank presets,
- Service list by alphabet order Yes
- Preset list Yes
- Alphabet Search Yes
- Related service Yes
- Audio interrupt standby by PTY Yes
- Audio interrupt standby by announcement Yes
- DAB-RDS integrated TI Yes
- Traffic Information Yes
- DAB priority Yes
- PTY (Programme Type) search Yes
- PTY (Programme Type) watch Yes
- Soft linking Yes
- Antenna power supply on/off switch Yes
- DAB antenna included Yes, SMB terminal
Playable Audio File
- MP3 files are playable USB
- WMA (.wma) files are playable USB
- WAV (.wav) files are playable USB
- FLAC files are playable USB
USB Features
- USB terminal Yes, Front with dust cover
- USB Type USB 1.1/USB 2.0 Full Speed
- Drive Change Yes
- WMA (Windows Media File) playback Yes
- WAV (Waveform Audio Format) playback Yes
- FLAC (Free Lossless Audio Codec) playback Yes
- Repeat / Random Play Yes
- Resume play Yes
- Time code display Yes
- 1,5A Smartphone Quick Charge Yes
Audio Features
- Maximum Output Power 50W x 4
- MOSFET Power IC Yes
- Auxiliary input Yes, Front, Mini-jack
- Pre-out 1 RCA
- Pre-out Output Level 2.5V
- Preout Rear / Subwoofer Switchable Yes
- Subwoofer Reference Level Adj. Yes
- 2-Way X'over network Yes
- 3-Way x'over (bi-amp connection) Yes
- Balance/Fader/Loudness Control Yes
- Loudness Control Off / LV1/ LV2
- Bass Boost Circuit Off/+1/+2/+3/+4/+5
- Graphic Equalizer + Preset 13-Bands Graphic Equalizer with 8 Presets.
- Digital Sound Processor (DSP) Built-in Yes
- Digital Time Aligment (DTA) Yes
- Low- & High-pass Filter Yes
- Speaker Size Control Yes
- Sound Reconstruction Yes
- Space Enhancer Yes
- Realizer Yes
- Stage EQ Yes
- Drive EQ Yes
- Sound Elevation Yes
Bluetooth General Features
- Max num. of regist. phones for HFP & A2DP 5 phones
- Hands Free Profile with High Sound Quality HFP V1.7.1
- 2 phones full time connection Yes
- High Quality Audio Streaming SBC
- Serial Port Profile (SPP) Yes
- Phonebook Access Profile (PBAP) Yes
- Easy pairing function Yes
- Android automatic pairing via USB Yes
- KENWOOD Remote App Ready Android only, available in Play store
- KENWOOD Music Mix Support Yes
- Private mode Yes
- Interrupt call request Yes
- Alphabet Search (Phonebook) Yes
- Voice Control Yes
- Phone device status display Yes
- Audio device status display Yes
- Signal strength display Yes
- Remaining battery display Yes
- Bluetooth Paring Indicator Yes
- High-quality noise canceling microphone Included (rear wired)
- Bluetooth firmware upgradeable Yes, Included in system updates
- * depends on phone model/make & Kenwood unit

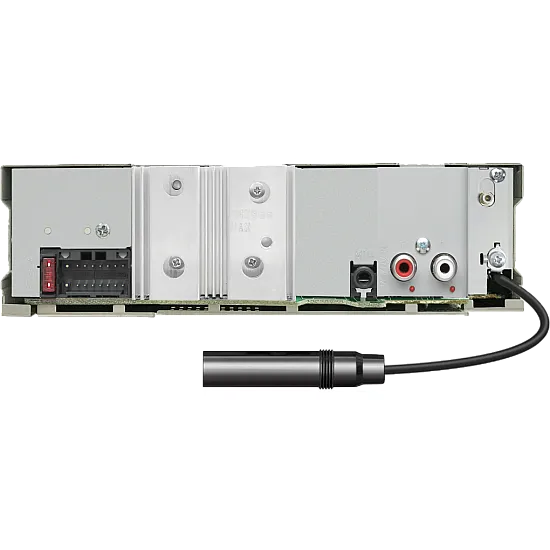

Connectivity
- Front USB & AUX Input Yes
- OEM Wired Remote Control ready Yes, Optional interface needed
- DC-Cord NEW Mitsumi to ISO
- Power Control (P.CON) wire Yes
- 2-way (Tel/Navi) mute wire Yes
- FM Antenna Input
- DAB Aerial input SMB connector
- External microphone input 3,5mm mini-jack
Specifications - KMM-BT408DAB
Tuner Specifications
- FM range: 87.5Mhz - 108MHz (50Khz step) Yes
- FM Usable Sensitivity 0.56μV/75ohm (S/N 30dBf)
- FM Quieting Sensitivity 1.58μV/75ohm (S/N 46dBf)
- FM Frequency Response 30Hz ~ 15kHz (± 3dB)
- FM Signal to noise ratio (Mono) 68dB
- FM Stereo Separation (1kHz) 40dB
- MW range: 531kHz - 1611kHz (9kHz step) Yes
- MW Usable Sensitivity 28.5μV
- LW range: 153kHz - 279kHz (9kHz step) Yes
- LW Usable Sensitivity 45μV
DAB Tuner Specifications
- Band III - Frequency range 174.928 MHz - 239.2MHz
- Mode I, II, III, IV
- Sensitivity - 100dBm
- Signal to noise ratio 90dB
- DAB Aerial Connector Type SMB
- Output Voltage 12V (11V to 16V allowable)
- Maximum Current < 100 mA
USB Specifications
- USB Version compatibility USB 1.1 / 2.0 full speed
- File System FAT 32 / 16 / 12
- Maximum Supply current 1500mA
- MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
- WMA Decode Compliant with Windows Media Audio
- WAV Decode Linear - PCM Files
- flac Decode FLAC files up to 96kHz/24bit
- Frequency Response 20Hz - 20kHz
- S/N Ratio 99 dB (1kHz)
- Dynamic Range 93dB
- Channel Separation 90dB
Audio Specifications
- Maximum Power 50W x 4
- Output Power (DIN45324,+B=14.4v) 22W x 4
- Preout Level 2500mV / 10kOhm,
- Preout Impedance ≤ 600Ohm
- Speaker Impedance 4Ohm ~ 8Ohm
- AUX Frequency Response 20Hz ~ 20kHz (±1dB)
- AUX Maximum Input Voltage 1000mV
- AUX Input Impedance 30kOhm
- Graphical Equalizer 13-Band
- G. EQ. Frequency (Hz) 62,5/100/160/250/400/630/1k/1k6/2k5/4k/6k3/10k/16k
- G. EQ. Gain (dB) -7 / ... / +7
- Subwoofer Level (dB) -50 dB to +10dB
Bluetooth Specifications
- Technology Bluetooth V4.2
- Frequency 2.402 - 2.48 GHz
- Output power +4dBm(max), power class 2
- Maximum range Line of sight approx. 10 meter
- Handsfree profile (HFP) Yes, V1.7.1
- Serial port profile (SPP) Yes
- Advanced audio distribution profile (A2DP) Yes
- Audio Codec SBC
- Audio/Video remote control profile (AVRCP) Yes, V1.6.1
- Phonebook access profile (PBAP) Yes
Accessories
- Release keys 2 pieces
- Escutcheon Yes
- Installation Sleeve Yes
- DC cord (Mitsumi to ISO) 20 cm
- DAB antenna with 3 m cable
- Handsfree Microphone with 3 m cable
- Multi-Language Instruction Manual Included Quick-Guide
- Manuals Downloadable Yes
General Specifications
- Operating voltage 14.4V (10.5 ~ 16V Allowable)
- Maximum Current Consumption 10A
- Dimensions (WxHxD) 182 x 53 x 100mm
- Weight 700 gr.
To complete the installation you will require a radio wiring lead. This adaptor lead is required to replace a factory fitted in car radio with an aftermarket audio headunit (eg. Parrot ASTEROID, Alpine, Pioneer, Kenwood, Sony, JVC etc.). It will convert the car's original power and speaker wiring connector to a standard ISO connector. Simply plug one end of the adaptor into your car's wiring harness and the other end into your new in car AV system, without the need for tools or cutting of wires. Refer to our fitting accessory section to purchase your car specific lead. Parrot products are all designed so that there is no need to cut any cables as long as you use an in-car radio wiring harness.
If you are unsure at anytime please contact us via the ask a question link at the top of this page or telephone us and we will gladly assist you
 |
| You may need to replace your car radio facia. Depending on your OEM radio you will either require a single or double DIN fascia trim panel. Refer to our website fitting accessories section. |
Stereo ISO adaptor harness allow connection to aftermarket stereo head units. Can ue steering wheel adapter instead.
Steering wheel adapter allows you to retain use of your steering wheel buttons. Avoids having to reach for car stereo controls in the dash.
Facia adaptors convert the aperture to DIN size used by aftermarket stereo head units
Aerial adaptor is often required to connect vehicles exisiting aerial to new aftermarket stereo
 |
| Enjoy the peace of mind that comes with a professional, risk-free installation service, by placing your trust in a certified installer. Car Communications are a certified installer. |
