BMW X5 NBT EVO Reversing Rear View Camera Kit Solution

A high-quality rear view reversing camera kit solution, designed to work with your BMW X5's factory fitted NBT EVO infotainment head unit. This retrofit solution is compatible with the BMW X5, manufactured between 2016 to 2018. The solution includes a discreet camera, which provides guidelines. The high quality camera provides a clear & crisp image on the infotainment screen to aid you with reversing and parking.

Benefits of having a reverse camera in your BMW X5

• Guidelines can be really helpful so the driver can accurately estimate the width of the vehicle parking space whilst reversing.
• The driver can see any obstructions behind the vehicle during the reversing manoeuvre
• The driver can see any any blindspots which are not visible to the driver
• Greater vehicle safety management during reversing manoeuvres
• Makes reversing much safer and more convenient

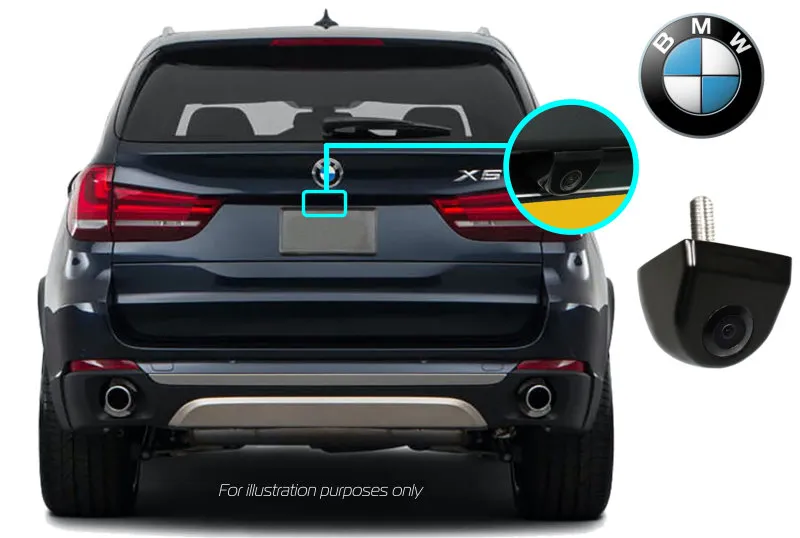

Discreet Bolt Camera

This rear view reversing camera kit, will fully integrate with the factory fitted infotainment system. This retrofit reversing camera kit solution maintains the factory options as standard.

Camera Specifications

• Guide lines (can be switched on)
• Black aluminum case
• Image mirrored (adjustable)
• Image sensor type 1/4'' Color CMOS (PC7070)
• NTSC video signal
• Resolution pixels 648 488
• DIN protection class IP67
• 420 TV lines
• Exposure 1 / 50-60 ~ 1/15000 seconds
• Signal to Noise Ratio = 48db
• Dynamics> 70db
• Light sensitivity <0.2 lux
• Output signal 1.0Vp-p, 75 OHM
• Automatic white balance
• Automatic video level adjustment
• Operating voltage 6-24 volts DC
• Power consumption 800mW
• Working temperature -40° C to + 80° C
• Diagonal viewing angle 170°
• Horizontal viewing angle 140°
• Camera structure dimensions 32x34mm and 25mm high
• 7.5mm drill hole
• CE certified

*Installation is optional via the dropdown

Refer to the compatibility section to check your vehicle variant is supported.

NOTE: A reversing camera kit is ONLY a Parking Aid and should not be relied on solely. Please check your surroundings at all times before carrying out a Reversing Manoeuvre. Where Guide lines are included, the guide lines are generic to all vehicles and hence fixed width and not adjustable to the width of the vehicle.
