Wireless Apple CarPlay and Android Auto Retrofit - Peugeot  & Citroen

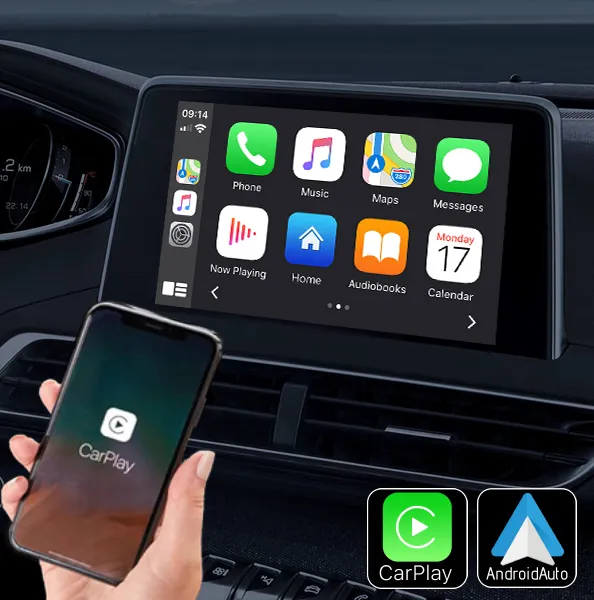

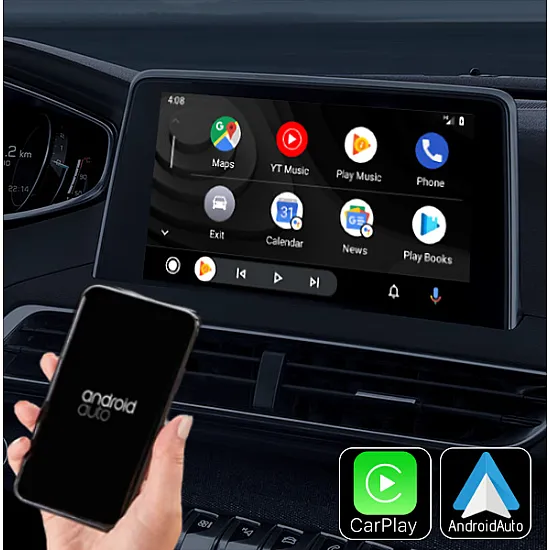

Looking for an upgrade that will let you use your iPhone or Android apps on the Peugeot or Citroen factory dashboard display? This 3 in 1 retrofit integration kit will allow seamless integration with your existing oem factory fitted infotainment screen, allowing a path to stream apps such as Spotify, Google Maps, Waze and more.  All this without touching your phone.

Features

• Integrated 3 in 1 module supports wireless CarPlay, USB Android Auto, USB mirroring
• USB HD video and lossless music playback (APE, WAV, FLAC, MP3, WMA, etc.)
• Offer 2 CVBS video input (front & rear view camera)
• Support PDC (Parking Distance Control) and FPG (Flexible Parking Guidelines)
• Supply 12V power to backup and front camera
• Display front view automatically after shifting from “R” gear, also support setting the duration
• Adjustable left/right driving layout on CarPlay
• Operate by OEM touch screen & steering wheel buttons
• Support OEM and add on microphone
• Further software update via USB
• Integrate CAN-bus reader for quick trouble shooting

This Apple Carplay & Android Auto retrofit solution allows you to play and stream music & video through the Peugeot or Citroen oem factory fitted infotainment stereo (NAC) system.  This solution uses the oem factory fitted car microphone for Siri Voice & Google Assistant commands. This means that you can access your music library, hear the latest news, send texts or even use apps such as Waze to navigate to your destination - all hands-free.

Specifications

Multimedia Interface I/O Spec:

• Input: RCA*2 (front & rear view camera), VGA*1 (specific 360 panoramic system), 3.5mm jack female*1 (add on microphone), Fakra*1 (LVDS in & out)
• Output: 3.5mm jack female*1 (audio L/R)

Power Spec:

• Input power: 9V-16V
• Consumption: 6W

Package Content:

• Main unit*1
• Quadlock power/CAN harness*1
• LVDS Y cable*1
• USB/MIC cable*1
• AUX-USB audio adapter*1
• 3.5mm AUX cable male to male*1
• SMA antenna*1

Optional Components:

• External microphone (Needed when a car without OEM MIC)

Please email us your VIN number for checking compatibility.

Note: Vehicle must be equipped with AUX/USB, dependent on the vehicle, to allow sound output. AUX/USB, dependent on the vehicle, will need to be selected on the vehicle's head unit for sound to be transmitted when in Carplay/Android Auto mode.
