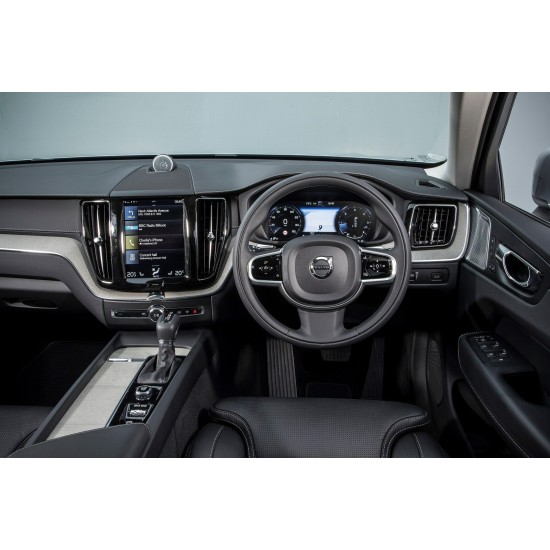

Rear View Camera Kit for Volvo with 9" Sensus Display

An integrated high quality rear view camera kit, designed to work with your factory Sensus screen. A discreet bolt-on camera will give you guidelines and with its unique Sony CMOS lens the resulting image on the screen is fantastic.

You will get Active Guidelines & PDC retention with a Volvo XC90 only. The other Volvo models will not retain PDC or provide Active Guidelines. Your Audible Parking Sensors will carry on working as normal.

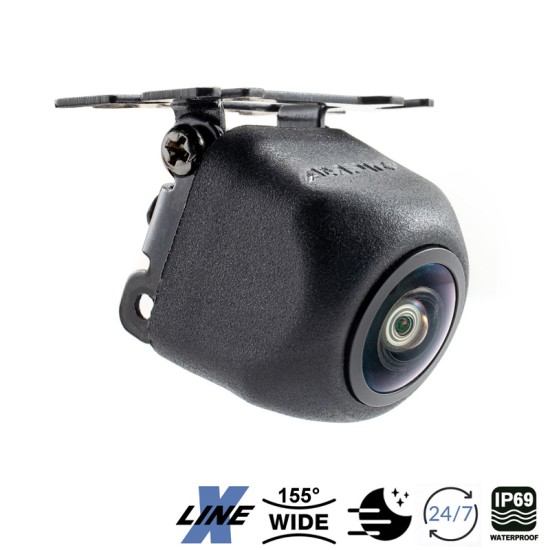

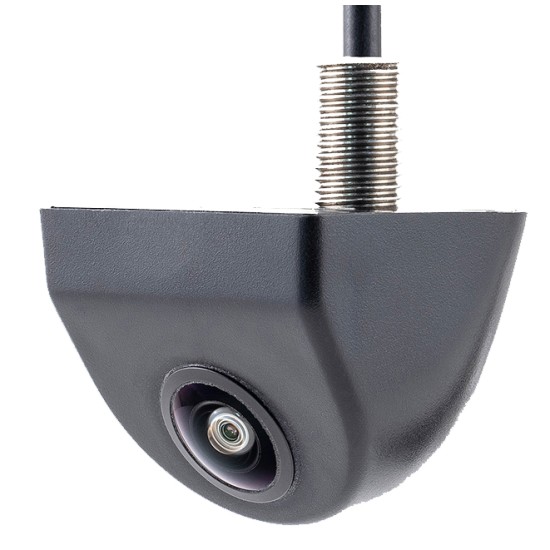

Wedge Camera

The high quality Sony lens with CMOS chip set, is fiited in just above the number plate which gives a discrete look, like it has been factory fitted. The CMOS chip set will give you a clear and sharp picture in low light conditions, also the camera will work perfectly well in rainy conditions.

Camera Specifications:

- Auxiliary lines: switched off at the factory (can be switched on)
- black aluminum housing
- mirrored image reproduction (adjustable)
- image sensor type 1/4 '' Color CMOS (PC7070)
- Video signal NTSC
- Resolution pixels 648 × 488
- DIN protection class IP67
- Triggering 420 TV lines
- Exposure 1 / 50-60 ~
- 1/15000 seconds - Signal to noise ratio = 48db
- Dynamic> 70db
- Light sensitivity <0.2 Lux
- Output signal 1.0Vp-p, 75 OHM
- automatic white balance
- automatic video level adjustment
- operating voltage 6-24 volts DC
- power consumption 800mW
- working temperature -40 ° C to + 80 ° C
- diagonal viewing angle 170 °
- horizontal viewing angle 140 °
- construction dimensions camera 32x34mm and 25mm high
- 7.5mm drill hole
- E certified

This kit has been specially designed for the new Volvo and has been perfected to work integrated with the factory fitted Sensus screen. Please do not be fooled by cheaper alternatives which claim to utilise the inbuilt screen.
No programming or coding required after the kit has been installed, as we have had the kit manufactured in such a way that all the software is built into it.

Benefits of having a reversing rear view camera kit:

• Clearly show the ground behind the car, of which may not normally be visible from the driver’s view (blind spots)
• Greater vehicle safety management
• Makes driving much more convenient

*Installation is optional via the dropdown

Refer to the compatibility section to check your vehicle variant is supported.

NOTE: A reversing camera kit is ONLY a Parking Aid and should not be relied on solely. Please check your surroundings at all times before carrying out a Reversing Manoeuvre. Where Guide lines are included, the guide lines are generic to all vehicles and hence fixed width and not adjustable to the width of the vehicle.
