Volvo V70 Double DIN or Single DIN Car Stereo Fitting Kit

Complete stereo upgrade fitting kit to install a Single or Double DIN aftermarket radio and retain the use of the steering wheel controls and original amplifier in Volvo V70 (2000-2005) car models.

This head unit fitting kit includes:

Volvo to DIN antenna adapter (21-104)

This cable adapts from the original grey Volvo antenna connector in the car to a standard aftermarket DIN antenna connector, this is used when fitting an aftermarket stereo upgrade.

Volvo ISO radio adapter Steering control interface (39-VOL-02)

A Volvo to ISO radio adapter cable with built in steering wheel control interface is also supplied in the kit. The cable adapts from the green and grey Volvo connectors in the car to standard aftermarket ISO connectors. A phono to 6 pin DIN adapter is also included to provide audio to the original amplifier in the car. This replaces the need for a separate ISO radio replacement adapter cable. The CANbus steering wheel control interface is built in to the adapter cable for a plug and play installation. This interface will allow the original audio control buttons on the steering wheel to work with the new aftermarket radio. The interface will work the volume, track skip and phone buttons.
The CANbus interface will also provide ignition, illumination, reverse gear, handbrake and speed pulse output signals to the new stereo.
This interface is supplied with a universal patch lead. The patch lead links the steering control interface to the steering wheel control input on the back of the new stereo.

PLEASE NOTE: An additional PDC retention interface (25-514-VOLVO) is required for cars that have original parking sensors.

Single/Double DIN fascia adapter panel (50-961)

Car radio fascia adaptor panel to allow the fitting of an aftermarket Single or Double DIN car radio upgrade.
The fascia adaptor allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio.
This fascia come with its own mounting brackets and radio housing, no additional cage is needed. The fascia gives a flush mount finish. Use the supplied pocket if installing a single din radio.

PLEASE NOTE: This fitting kit is designed to fit facelift 2000 - 2005 Volvo V70 cars.

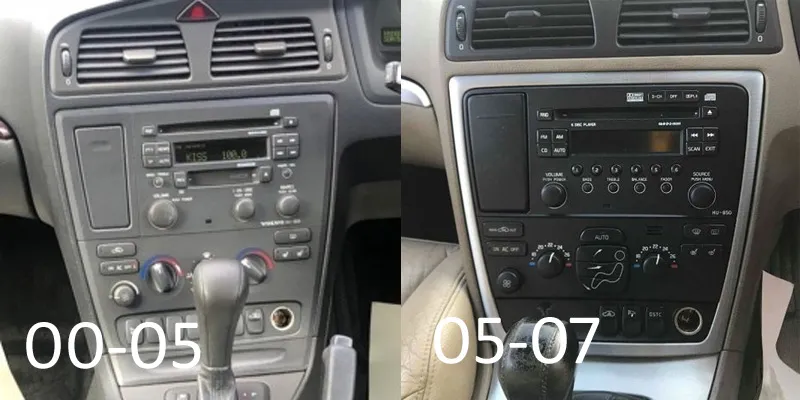

The image below shows examples of pre and post facelift dashboards from a Volvo V70. Note the shape and styling differences of the trim around the radios.

This fitting kit is Suitable for fitting facelift Volvo V70 2000 to 2005 cars with HU-6XX and HU-8XX original radios

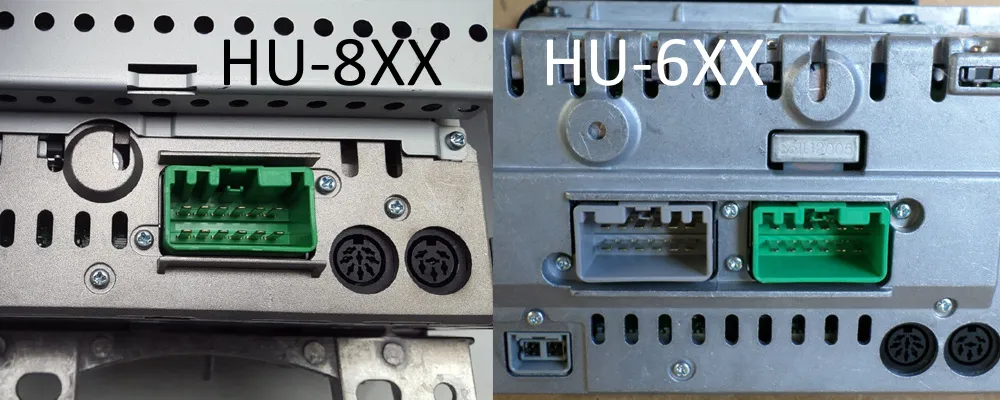

The model numbers of the radios are printed on the front of the radio in the bottom right corner. Model number begin with HU- then have a three digit number to identify the radio model. Numbers begin with either a 6 or an 8 and require different speaker wiring depending on which it is.

The 8 pin DIN connectors are used for the CD changer.

Package Contains:

• Volvo to DIN antenna adapter (21-104)
• Volvo ISO radio adapter Steering control interface (39-VOL-02)
• Single/Double DIN fascia adapter panel (50-961)
