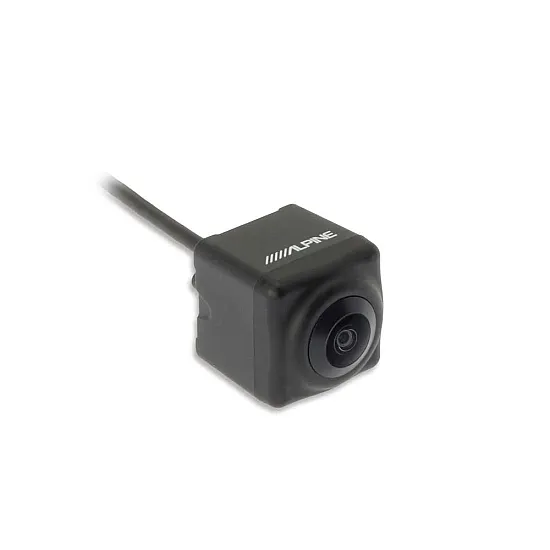

Alpine HCE-C1100 HDR Reversing Camera
- Stock Availability: In Stock
- Item Condition : New
- Model: HCE-C1100
- SKU: HCE-C1100
- 1 Year Warranty
High Dynamic Range (HDR) Rear View Camera
Alpine Advanced Rear View Camera
Alpine HCE-C1100 rear view HDR camera system provides parking safety with cutting-edge camera technology. Thanks to HDR technology, the picture quality is much better compared to regular reversing camera systems - for easier manoeuvring and greater safety. The cameras are very small, so they’re easy to install and don’t change the appearance of the car.
All New Alpine HDR Cameras
Alpine’s all new HDR cameras are simply amazing and offer many new technologies that make manoeuvring your vehicle easier and safer.
- High-resolution camera for great picture quality and high details
- Amazing night-view capabilities in low-light environments
- Fast exposure adjustment when moving from dark to bright environments (for example underground parking, tunes, etc)
- New, small connectors for easy installation of camera and cables
Distance Guides
This camera includes convenient distance guides that can be fully adjusted to match the width of your vehicle. This makes parking safer and more convenient compared to a regular rear-view camera. Note: distance guides only work with Alpine navigation and media stations.

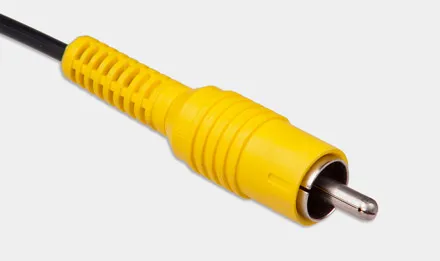

RCA output
Convenient RCA output means this camera can be used with any monitor.
Features & Specifications
Features
General
- HDR Rear view Image
- RCA Video Signal (NTSC) Output
- Vehicle Reverse Signal Synchronization
Camera
- Mirror Image Output
- Colour CMOS Image Sensor
- Automatic Exposure Adjustment
- Automatic White Balance Adjustment
- Internal Synchronization
Specifications
Dimensions
- Camera: 23.6 x 23.6 x 24.0mm (excluding projection on the rear))
- Box Unit: 38 x 25 x 15mm (excluding projection)
- Camera Cable Length: 0.5m
- Camera Extension Cable Length: 7m
- Reverse/ACC/Video/GND Cable Length: 3m
General
- Power Requirement: DC 9V to DC 15.6V
- Negative Ground
- Power Consumption: 1.2W (12V)
- Operating Temperature (Box Unit): -30°C - +70°C
- Weight Camera: 27g (camera only)
- Weight Box: 83g (including cord)
Camera
- Output Image: Mirror Image, Composite Video NTSC, Aspect Ratio 4:3
- Output Drive Capacity: 75 Ohms (1Vp-p)
- Image Sensor: 1/3.7 inch CMOS image sensor
- Effective Number of Pixels: 640 (H) x 480 (V), Approximately 0.3 Mega pixels
- Lens Focal Length: f=1.34mm
- Lens Brightness: F=1:2.0
- Angle of Field: Horizontal = 131°, Vertical = 103°
- S/N Ratio: 40.5 dB or more
- Resolution (Horizontal. Centre Area): 330 TV Lines
- Operating Temperature: -30°C - +70°C
- Illumination Range: Approximately 1.5 to 100klx
Refer to the included fitting instructions.
