Audi A4 (B7) (2005-2008) Single/Double DIN car stereo fitting kit with CANbus (REAR AMPLIFIED)

Complete stereo upgrade fitting kit to install a Single/Double DIN aftermarket car stereo in Audi A4 (B7) (2005-2008) car models with CANbus ignition and rear amplified sound systems.

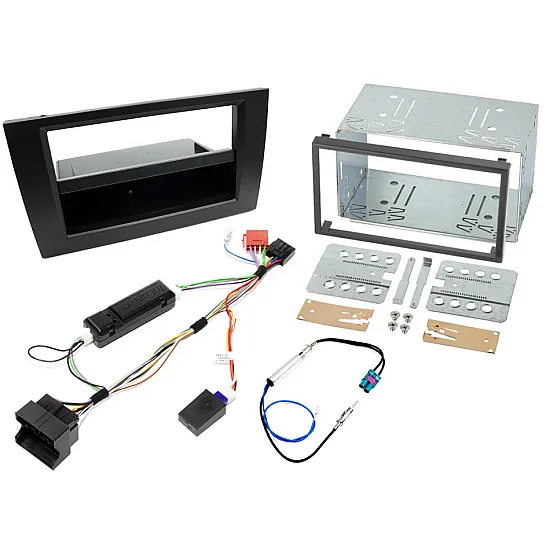

This head unit fitting kit includes:

• CAN ignition interface for plug and play installation (part of 20-254-IGN)
• Quadlock to ISO harness adapter cable (20-254-IGN)
• Antenna adapter cable (21-139)
• Audi A4 Single/Double DIN car audio radio fascia adapter (50-314)
• Double din fitting cage (51-012)

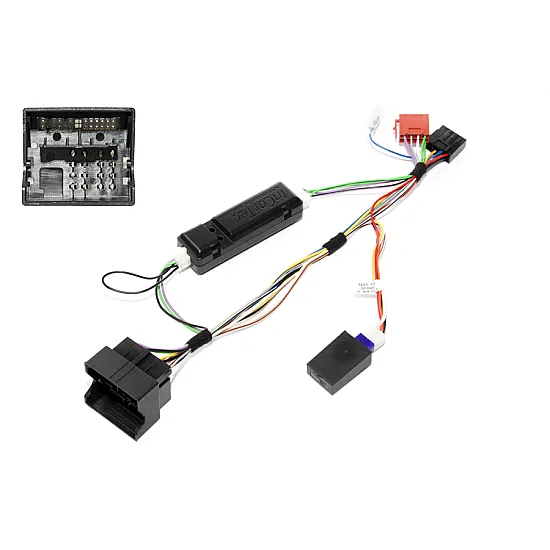

Audi quadlock to ISO radio adapter cable with CANbus ignition interface (20-254-IGN)

This Quadlock to ISO adapter cable with CANbus ignition adapts from the original connector in the car, known as a quadlock, to standard aftermarket connectors for the new stereo, known as ISO connectors. The CANbus ignition interface generates a key present ignition supply to the new stereo, this means the stereo will turn on with the first click of the key and stay on until the key is removed from the ignition barrel. This interface is built into the Quadlock to ISO harness adapter so installation is plug and play.

The plug and play Quadlock to ISO cable also has a built in high to low level adapter for the amplified speakers.  The adapter allows the new stereo to work with the original amplifier which drives all the speakers in the car and the subwoofer. The adjustable high to low level adapter gives a much cleaner audio signal to the amplifier compared to using line output phono leads.

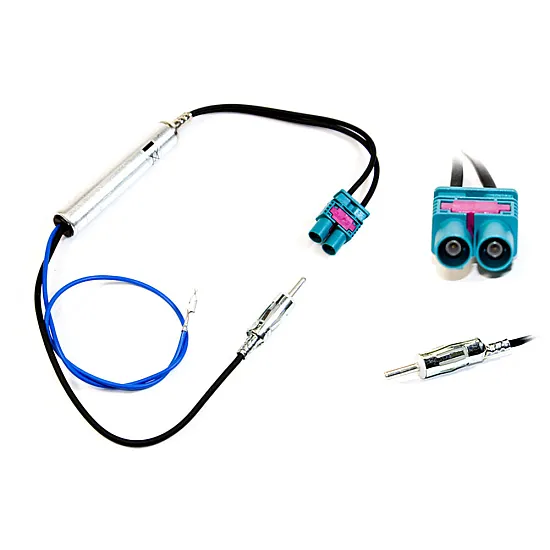

Antenna adapter cable (21-139)

Double moulded Fakra Aerial adapter cable for European cars that have amplified original antennas. Use with cars that have twin antenna both requiring power. This cable converts the cars existing ISO aerial plug to an aftermarket DIN type used by most car radio manufacturers. Will also provide a power feed to give 12 volt from the car radio to the cars amplified antenna.

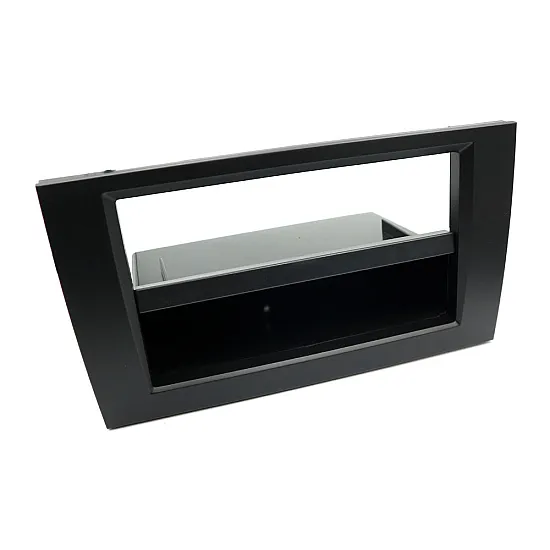

Audi A4 Single/Double DIN car audio radio fascia adapter (50-314)

Audi A4 car radio fascia adapter panel to allow the fitting of an aftermarket Single or Double din car stereo upgrade. The fascia adaptor allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio. Use the supplied pocket with the fascia adapter to fit a single din radio, or remove the pocket and use the fascia trim only with a 103mm fitting cage to fit a double din after-market head unit. Most aftermarket radios are supplied with a 113mm high cage, because of this an additional 103mm fitting cage is included with this kit.

Double din fitting cage (51-012)

This kit is designed to replace the metal cage kit that is usually supplied with your new aftermarket double din head-unit or navigation system. It is used along with fascias that have 103mm high hole sizes. Complete with fixings to attach to the new car radio body.

This product has been developed through carefully documented data and research. The manufacturer & supplier cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options, or damage that may occur in the vehicle during the installation of components. All application data is subject to change.

Refer to the compatibility section to check your vehicle variant is supported.
