BMW 4-Series G22/G23/G26 Rear View Reversing Retrofit Camera Kit - NBT EVO ID7

BMW 4-Series G22, G23 & G26 Reversing Camera Kit - NBT EVO ID7

MGU (Media Graphics Interface) Operating System 7.0

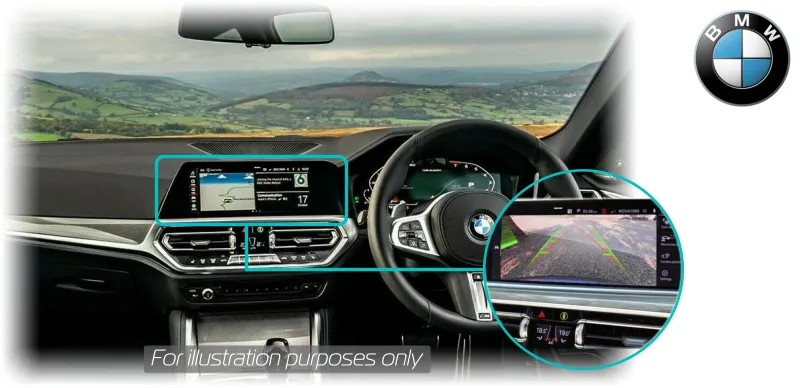

A high-quality rear view reversing camera kit solution, designed to integrate with your BMW 4 Series factory fitted infotainment head unit. This retrofit solution is compatible with vehicles manufactured from 2019 onwards and fitted with the NBT EVO ID7 infotainment and communication system. The solution includes a discreet camera. The high quality camera provides a clear & crisp image on the infotainment screen to aid you with reversing and parking.  This retrofit reversing camera kit solution provides Dynamic guidelines (Moving lines) to enable more accurate reversing manoeuvres.

Key Features

• Auto switching reverse camera input
• Front and rear inputs
• OEM style moving guidelines
• Works with 6.5" 8.8" & 10.2" 12.3" touch screens
• Any aftermarket device attached to this interface will work on the move
• Fully plug & play

This kit is compatible BMW 4-Series G22, G23 & G26 models fitted with the BMW Live Cockpit NBT EVO ID7 system

Benefits of having a reverse camera in your BMW 4-Series

• Guidelines can be really helpful so the driver can accurately estimate the width of the vehicle parking space whilst reversing.
• The driver can see any obstructions behind the vehicle during the reversing manoeuvre
• The driver can see any any blindspots which are not visible to the driver
• Greater vehicle safety management during reversing manoeuvres
• Makes reversing much safer and more convenient

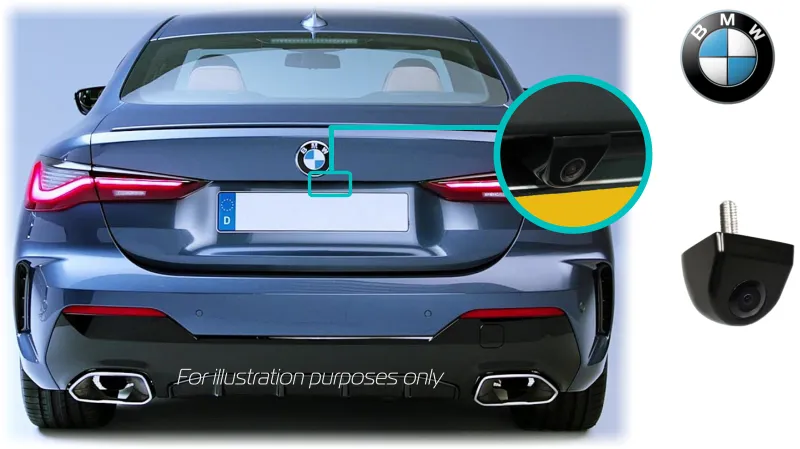

Discreet Reversing Camera

This rear view reversing camera kit, will fully integrate with the factory fitted infotainment system. This retrofit reversing camera kit solution maintains the factory options as standard.

Camera Specifications

• Auxiliary lines: switched off at the factory (can be switched on)
• black aluminum housing
• mirrored image reproduction (adjustable)
• image sensor type 1/4 '' Color CMOS (PC7070)
• Video signal NTSC
• Resolution pixels 648 × 488
• DIN protection class IP67
• Triggering 420 TV lines
• Exposure 1 / 50-60 ~
• 1/15000 seconds - Signal to noise ratio = 48db
• Dynamic> 70db
• Light sensitivity <0.2 Lux
• Output signal 1.0Vp-p, 75 OHM
• Automatic white balance
• Automatic video level adjustment
• Operating voltage 6-24 volts DC
• Power consumption 800mW
• Working temperature -40 ° C to + 80 ° C
• Diagonal viewing angle 170 °
• Horizontal viewing angle 140 °
• Construction dimensions camera 32x34mm and 25mm high
• 7.5mm drill hole
• CE certified

*Installation is optional via the dropdown

Refer to the compatibility section to check your vehicle variant is supported.

NOTE: A reversing camera kit is ONLY a Parking Aid and should not be relied on solely. Please check your surroundings at all times before carrying out a Reversing Manoeuvre. Where Guide lines are included, the guide lines are generic to all vehicles and hence fixed width and not adjustable to the width of the vehicle.
