Reversing Rear View Camera Kit

7" Uconnect Stereo (Radio Nav HD / Radio Nav Live HD)

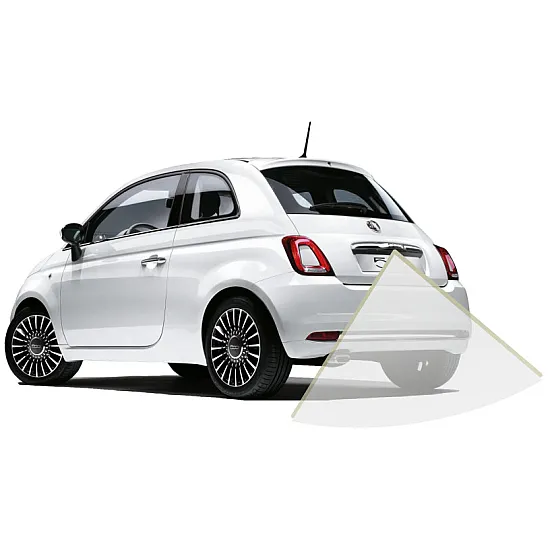

A high-quality rear view reversing camera kit solution, designed to work with your Fiat 500 factory fitted head unit. This retrofit solution is compatible with vehicles fitted with the 7" Uconnect infotainment system and includes a discreet camera, which provides guidelines. The high quality camera provides a clear & crisp image on the infotainment screen to aid you with reversing and parking.

Benefits of having a reverse camera in your Fiat 500

• Guidelines can be really helpful so the driver can accurately estimate the width of the vehicle parking space whilst reversing.
• The driver can see any obstructions behind the vehicle during the reversing manoeuvre
• The driver can see any any blind-spots which are not visible to the driver
• Greater vehicle safety management during reversing manoeuvres
• Makes reversing much safer and more convenient

Reversing Camera

Images are for illustrative purposes only

This rear view reversing camera kit, will integrate with the factory fitted touch screen infotainment system. This retrofit reversing camera kit solution maintains the factory options as standard.

Specifications

• 2 different auxiliary lines: switched off at the factory (can be switched on)
• Black matt plastic housing with stainless steel fastening
• Mirrored image reproduction (adjustable)
• Image display rotated 180° (adjustable)
• Image sensor type 1/4 '' 1233 HD Colour CMOS Low Light Sensor
• NTSC video signal output
• Resolution 960H480V pixels
• DIN protection class IP69K
• 800 TV lines
• Exposure 60 fields per seconds
• Signal to noise ratio >46dB
• Dynamic Range >74dB
• Light sensitivity <0.01 Lux / F1.2
• Output signal 1.0Vp-p, 75 OHM
• Automatic white balance
• Automatic video level adjustment
• Operating voltage 12 volts DC
• Power consumption 25-55mA
• Diagonal viewing angle 140°
• Horizontal viewing angle 106°
• Vertical viewing angle 78°
• Camera dimensions 25.8 x 28.2mm and 20.8mm high
• 8mm mounting hole
• Working temperature -40°C to +75°C
• Storage temperature -60°C to +105°C
• CE certified

This kit has been specially designed to fit a Uconnect 7" (Radio Nav HD/ Live HD) head unit.

Please Note: Head unit must be temporarily opened to install this interface, professional installation is recommended.

No programming or coding required after the kit has been installed, as we have had the kits manufactured in such a way that all the software is built in.

Refer to the compatibility section to check your vehicle variant is supported.

NOTE: A reversing camera kit is ONLY a Parking Aid and should not be relied on solely. Please check your surroundings at all times before carrying out a Reversing Manoeuvre. Where Guide lines are included, the guide lines are generic to all vehicles and hence fixed width and not adjustable to the width of the vehicle.
