FISCUBE 38358 - Audi OEM DVB-T Digital TV for MMI 2G
- Stock Availability: In Stock
- Item Condition : New
- Model: FISCUBE MMI 2G
- 1 Year Warranty
Available Options
Please select whether your vehicle is fitted with factory fitted rear view camera. If the vehicle is not fitted with the rear view camera system then an additional module will need to be installed at £750.
Please note 'Video In Motion' will give video playback of the TV system whilst driving. In the UK it is illegal for the driver to view TV whilst driving, hence this function is only for passenger use. Please stay legal with your own country requirements.
Optional Installation Package
You are being offered an Installation Service at an additional cost. If you select the installation option, the purchased product will be professionally Installed at your home or workplace by our network of Qualified & Accredited Installation Engineers. You will be contacted by a member of our installation booking team after you have placed an order (Within 72 hours). To be sure we cover your area, please contact us before selecting this option.
We also offer Discounted competitive rates if Installations are carried out at our Workshop in Blackburn. Please contact us for a competitive quote.
Please choose the correct option from the list
Commercial vehicles & Motorhomes - Vans (Small & large), Mini Vans, Taxis, Buses, Mini Buses, Trucks, HGV's, Motorhomes, Campervans
Non- Commercial - Standard Sized 2/4/5 Door Family cars (not used for commercial purposes)
Please note: Incorrect selection will be charged the difference before the install takes place. If you are unsure of the correct selection, please contact us first.

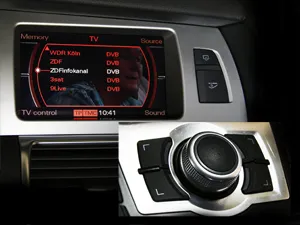

FISCUBE Audi OEM DVB-T Digital TV
Fiscube multimedia device which leaves nothing to be desired.DVB-T digital TV directly on the original MMI screen of the vehicle.Record TV through USB connection.Playing MP3 as well as Video files through USB connection
Full integration into the infotainment system of the vehicle
OEM-menu driven operation by using:
- MMI oparation panel
- Multifunctional steering wheel (if available)
- No installation of additional screens, speakers or operation panels neccessary
Key Features:
- E13 certification - 10R-03-12423
- TV - Tuner - Emulation
- Standby current < 0,01 mA
- Input aerials 2x F-connector
- USB connection
- Dimesion (LxBxH): 11,4cm x 9,2cm x 3,1cm
USB connection:
- USB connection for an external HDD* or memory stick
- USB-source format using FAT32
- Playing MP3 as well as Video files
- Display of information about track as well as interpret on the MMI screen
- Last-Position-Memory
- For music files - the last listen track will start again from the beginning
- For video files - will start again directly where the video has been stoped playing
- Supported audio files: *.mp3, *.wav
- Supported video files: *.mpg; *.dat; *.vob; *.avi (MPEG4 ASP, XviD, DivX4.0/5.0/6.0)
- Recorded file format: *.mpg
DVB-T:
- Integrated automotiv receiver
- Record TV through USB connection
- Replay of records at a later date
- EPG - Electronic Program Guide (if available)
- Videotext
- Frequence: 145.1MHz ~ 862 MHz
- Channel bandwidth: 6/7/8 MHz
- Video/Audio decoding: MPEG II
- No HDTV
- No MPEG4
- No CAM-slot for Pay-TV smart cards (e.g. needed in the Netherlands)
- Resolution: 720x576 (PAL) / 720x480 (NTSC)
Whats Included in the Package:
- FISCUBE interface
- Specific wiring
- 2 active aerials
Why Use FISCUBE:
The FISCUBE is not only a multimedia box - but a unit that has been specifically developed to work as an OEM system. All of it's functions are integrated into the existing infotainment system of the vehicle. It is not necessary to install additional speakers, screens or separate control units in your vehicle. You get everything displayed on the original existing vehicle screen.
The CUBE is operated by using the existing car controls or can be multi-function steering wheel operated. You will not need to add any new components, such as remote control's or additional displays.
The system has a unique single box design incorporating all components, allowing for a fast and uncomplicated installation.
FISCUBE Audi OEM DVB-T Digital TV
Audi Fiscube OEM DVB-T Digital TV Compatibility Chart | |||
| Car Model | Year | Radio Description | Notes |
| A4 8K | vehicles with MMI High 2G | 1,2 | |
| A5 8T | vehicles with MMI High 2G | 1,2 | |
| A6 4F | vehicles with MMI High 2G | 1,2 | |
| A8 4E | vehicles with MMI High 2G | 1,2 | |
| Q7 4L | vehicles with MMI High 2G | 1,2 | |
NOTE 1: without RVC: In case the vehicle is not equipped with a factory fitted rear view camera item number 35600 will be needed in addition.
NOTE 2: Suitable for vehicles without factory fitted TV. Not suitable for vehicles with factory fitted TV or retrofitted Multimedia Adapter. In case of factory fitted analog TV item number 38323-2 will be needed in addition for fitting the FISCUBE®. The analoge TV Tuner will be replaced.
If you are unsure about the suitability of this product please contact us via the ask a question link at the top of this page or telephone us and we will gladly assist you.
 | Car information and entertainment systems can be complex networks, so we always recommends that you have your installation carried out by a qualified installer. If you wish Car Communications to carry out the installation at an address of your choice anywhere in the UK please select from addons above before adding to cart. Our products are professionally installed at your home or workplace anywhere in the UK by our own network of accredited engineers. |
