Ford Transit MK8 Euro 6 (2016-2018) Double DIN Car Stereo Upgrade Fitting Kit (4 INCH DISPLAY)

Complete stereo upgrade fitting kit to install a Single or Double DIN aftermarket car stereo head unit and retain the use of the steering wheel controls in a select EURO 6 Ford Transit mk8 vehicles with a 4 inch factory display.

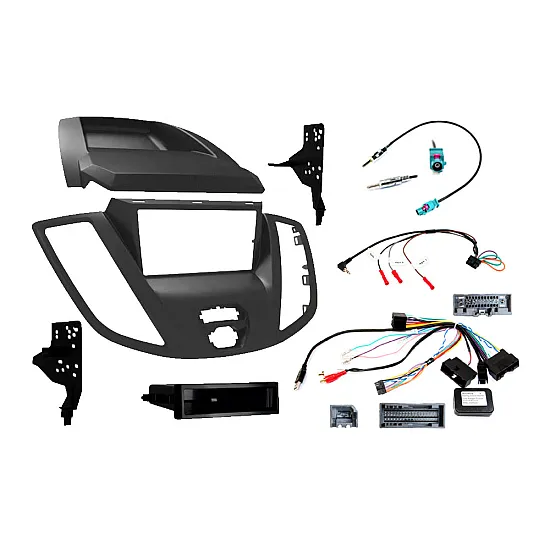

This Head Unit Fitting Kit Includes:

• AM/FM antenna adapter (21-106)
• Steering control interface (29-CTF018)
• Patch lead (29-CT-025)
• Fascia with brackets (50-968)

PLEASE NOTE: Installation of this kit will result in the ORIGINAL TOP DISPLAY BEING LOST

This kit comes with a dark grey car radio fascia adaptor panel to allow the fitting of an aftermarket single or double din car radio upgrade.
The fascia adaptor (50-968) allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio. The fascia kit uses side fixing brackets, the brackets fit directly to the sides of the new radio and the fascia panel. This replaces the need for a fitting cage and gives a flush professional appearance to the installation. A spare pocket is supplied for fitting a single din stereo.

A steering wheel control interface is also included in this kit. It is built into a plug and play radio replacement adapter cable for an easy plug and play installation. This will retain the use of the original audio controls on the steering wheel with the new radio.

A universal patch lead (29-CT-025) is included too, this is used to match the steering wheel control interface with the brand of radio that's being fitted.

A Fakra to DIN antenna adapter 21-106) is also included in the kit, this adapts from the original style antenna connector in the van, known as a Fakra connector, to a standard aftermarket antenna connector, known as a din connector.

PLEASE NOTE: If the vehicle originally had a passenger airbag status light in the radio panel please remove this and install into the new radio fascia panel, failure to refit one will cause airbag warning lights to show on the instrument cluster.

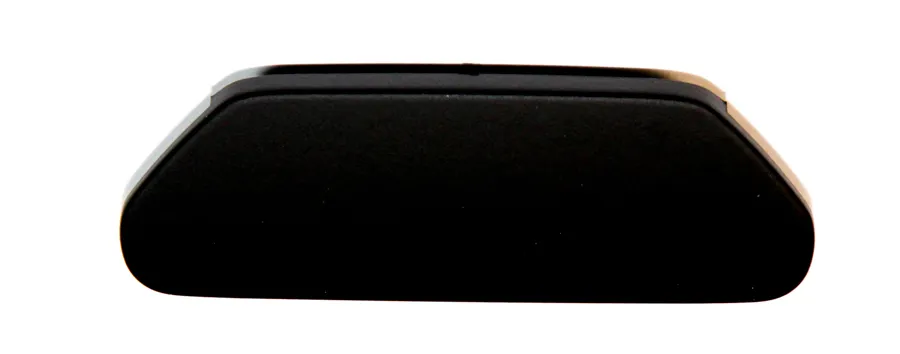

If the vehicle does not have a passenger airbag status light, a blanking plate (pictured below) is included in the kit.

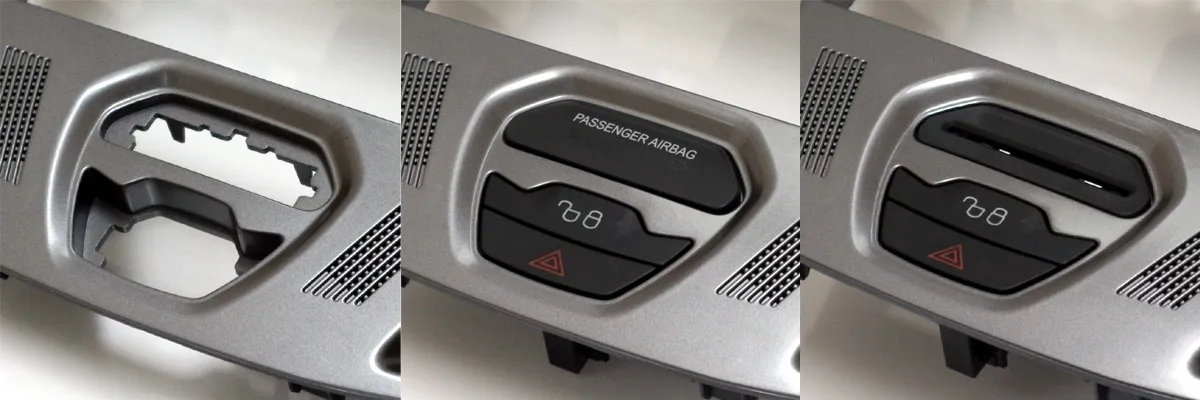

See the image below for examples of the components fitted into a fascia.

This product has been developed through carefully documented data and research. The manufacturer & supplier cannot be held responsible for discrepancies/inconsistencies that may occur due to vehicle manufacturing changes or options, or damage that may occur in the vehicle during the installation of components. All application data is subject to change.

Refer to the compatibility section to check your vehicle variant is supported.
