Mercedes Benz Rear View Reversing Camera - Viano & Vito (NTSC)
- Product Code: MM0835
- 1 Year Warranty
- Easy Returns
Recommended Add Ons
3.5" Dash Monitor
5" Dash Monitor
4.3" Mirror Monitor
7" Mirror Monitor
6" Dash Mounted Monitor 7" Dash Mounted Monitor
Optional Installation Package
You are being offered an installation at an additional cost. If you select the installation option then this product will be professionally Installed at your home or workplace anywhere in the UK by our own network of accredited engineers. You will be contacted by a member of our installation booking team after you have placed an order.

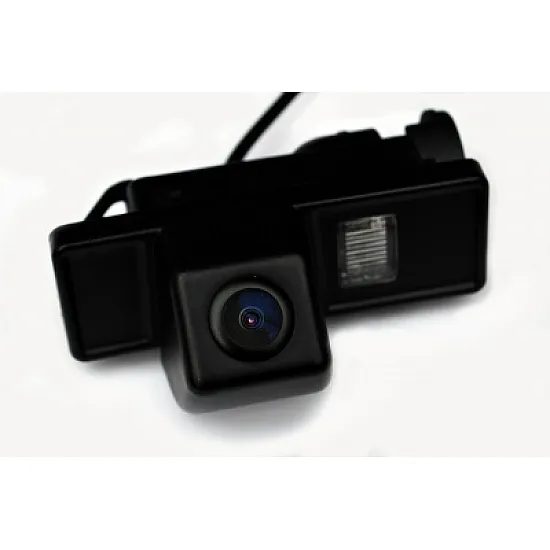

Color rear view camera for Mercedes Benz - Viano (2006-2012), Vito (2009-2012) NTSC. SONY 1/3” colour CCD camera lens for best reproduction quality. Replaces the original number plate light for easy installation.
This reversing camera is specially designed for Mercedes Benz vehicles. The camera is complete including video extension RCA cable kit which allows easy plug and play installation. Just remove the existing license plate light and replace it with the reversing camera which is also equipped with a light.The camera is water proof and shock tested to IP68 certification level. All the oe cameras are Sony CCD lenses and chipsets, with grid lines and 170 degree angle lens.
Images are for illustration. The camera shows static picture lines. These are guides to help you judge the distance to the object and ideal for parking.
- Visual Display: Yes
- Distance to Object indicator: Yes
- IP rating: IP68
- Screen Resolution: 480 (TV Lines)
- Lens Angle (In Degrees): 170deg.
- Image: Mirror
- Storage Temperature: -40 C to +80 C
- Operating Temperature: -20 C to +70 C
- Image Sensor: Colour 1/3"SONY CCD
- Camera Sensing area: 4.9 x 3.7 mm
- Voltage: 12 Volt
- Weather Proof: Yes
- Sonly CCD Lens: Yes
- Dimensions - 75mm x 30mm
The following is provided in the kit:
- Mercedes Benz reversing camera with license plate lamp
- Video extension cable (RCA)
Displaying the Reverse Camera Image:
You can either connect the camera to the vehicles own radio through an optional interface module which will display the rear view image on the radio screen. The interface will be specific to your car model/radio and can be purchased as an optional extra. You may alternatively choose our universal mirror monitor. The mirror monitor option is recommended if an interface module is not supported on your vehicle. The mirror monitor is a budget option and can be DIY fitted, whereas the oem interface will usually need to be fitted by a car technician.NOTE: A reversing camera kit is ONLY a Parking Aid and should not be relied on solely. Please check your surroundings at all times before carrying out a Reversing Manoeuvre. Where Guide lines are included, the guide lines are generic to all vehicles and hence fixed width and not adjustable to the width of the vehicle.
|Make||Model||Varitions||Radio||Year From||Year To||Notes|
W639 (01-01-2004 - 01-09-2010)
W639 (01-10-2010 - 01-03-2015)
Displaying the Reverse Camera Image:
You can either connect the camera to the vehicles own radio through an optional interface module and it will display the rear view image on the radio screen. The interface will be specific to your car model/radio and can be purchased as an optional extra. You may alternatively choose our universal mirror monitor.
|Refer to the fitting instructions guide. If you are unsure at any time please contact us. If you select the optional installation then this product will be professionally installed at your home or workplace anywhere in the UK by our own network of accredited engineers.|
|Product Type||Reversing Camera|
