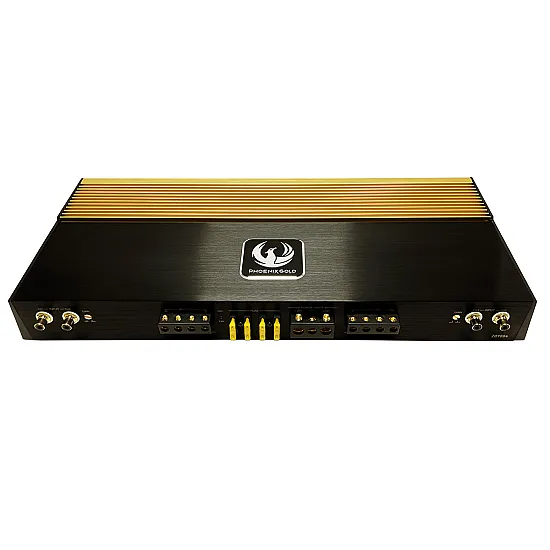

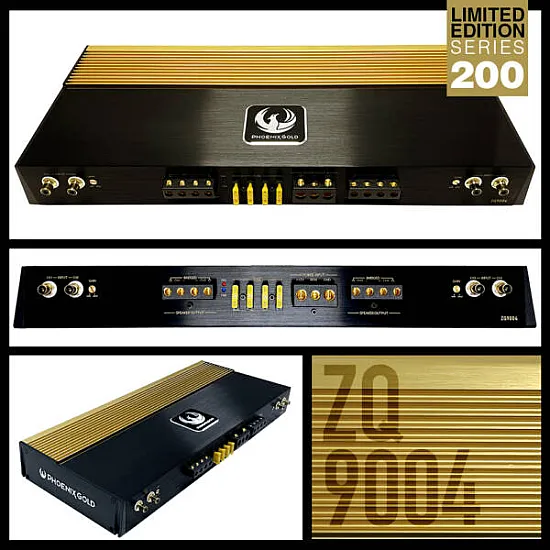

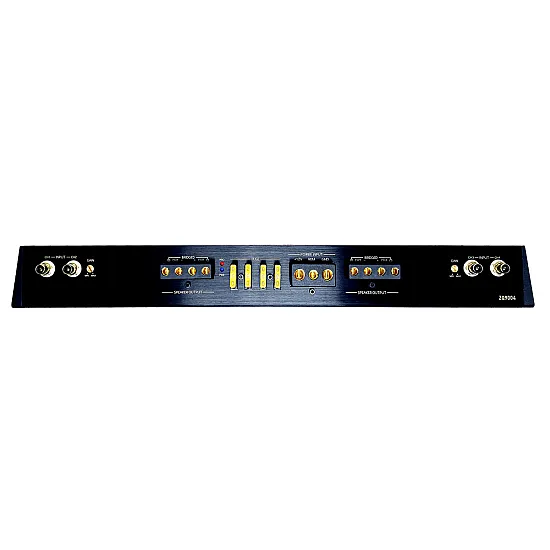

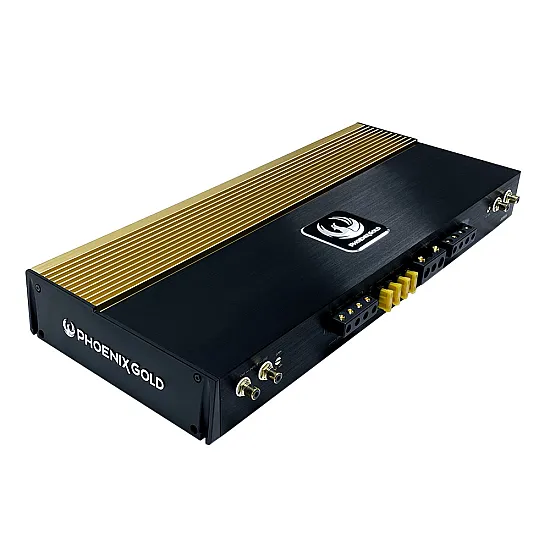

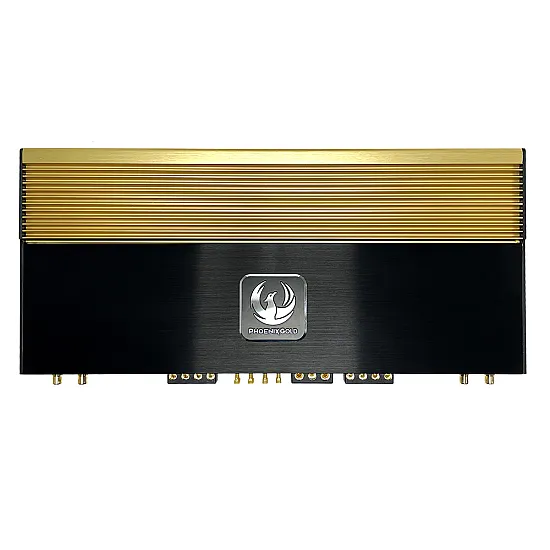

Phoenix Gold ZQ9004 ZQ-Series 4 Channel High-End Amplifier

Phoenix Gold ZQ9004 has a Dual-Power system with an excellent PCBA designed to optimise a clean and efficient power supply to feed the final stage of the amp. This top of the range audio set-up has been developed as a highly exclusive and valuable specialist audio electronics product. Phoenix Gold are constantly endeavouring to meet the growing demands of audio enthusiasts around the world to let them feel the ultimate sound experience.

Passive components such as capacitors, for example, may not be at the centre of attention when compared to active components, but they still form an indispensable part of the overall result. This is the key to making a really unique amplifier with a fantastic performance.

The ZQ9004 is a high quality four channel amplifier with a Dual-Power system and an excellent PCBA designed to optimise a clean and efficient power supply to feed the final stage of the amp.

This top of the range audio set up has been developed as a highly exclusive and valuable specialist audio electronics product. Phoenix Gold are constantly working to meet and exceed the growing demands of audio enthusiasts around the world to give them the ultimate sound experience.

The ZQ9004 is designed in the EU by Phoenix Golds top amplifier master engineers, with over twenty years development experience in high end amplification.

To bring this incredible new amp to life we insisted on using the best possible components from around the world such as transistors from ON Semiconductor, magnetic core transformers from EPCOS, along with capacitors from the likes of ELNA, Rubycon, Wima and Nichicon.

Often overlooked passive components such as capacitors for example, may not be at the centre of attention but they still form an indispensable part of providing an amplifier that can exceed expectations and wow audio enthusiasts.

Features

• 4 Channel Power Amplifier
• Low-Level Input
• Gain Control
• LED Power & Protection Indicator
• Mosfet Power Supply
• Thermal Protection
• Two-Layer PCB with Immersion Gold Treatment
• Dual Power Supply
• 24k Gold-Plated Terminals
• Nichicon & Wima Capacitors
• Toshiba & ON Transistors
• Shielded Transformer Cores
• High-end Polymer Gain Potentiometers
• S/N Ratio above 110dB

Specifications

• Supply Voltage 11-15V DC
• Power Output @ 4 ohm 150W x 4
• Power Output @ 2 ohm 230W x 4
• Power Output 1 x 460W @ 4 ohm + 2 x 230W @ 2 ohm
• Frequency Response 10Hz 55KHz (-3dB)
• Channel Separation 60dB
• Signal to Noise Ratio +110dB
• Input Impedance 22K Ohm
• Input Sensitivity 400mV 5V
• T.H.D <0.05%
