A convenient way to operate mass produced 12Vdc equipment

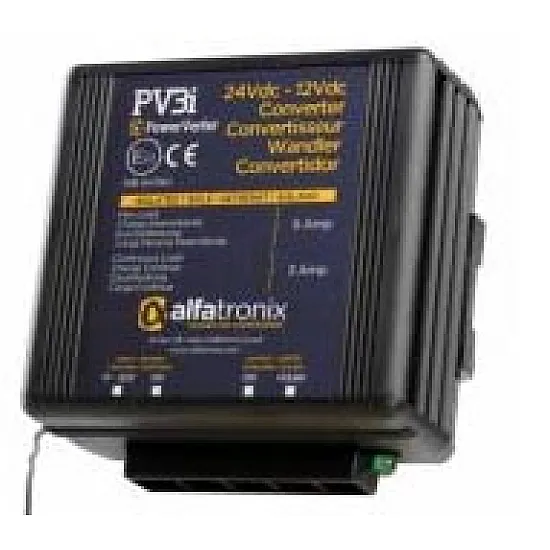

Alfatronix PV3i offers a convenient way to operate mass produced (12Vdc) equipment such as cell phones, in car entertainment, professional communication and etc.

Tamper Proof

There are no ventilation holes to permit stray objects, dust or water droplets to enter the case. There are no external fuses to be tampered with. Fuses will only blow if there is a fault so there is no need to make them accessible.

All PowerVerters are enclosed in a rugged aluminium extrusion. The low mass Surface Mount Technology components are also less prone to damage from vibration and shock, further increasing the reliability of the units.

3Amp units are excellent for charging mobile phones, while 6A units suit a variety of mobile radio applications.

Typical applications

Installations of mobile and cellular radio communications equipment on trucks and buses, as well as a variety of industrial applications. For a wider range of input and output voltages.

Specifications

Converts 24Vdc to 12Vdc

Load Current : 3 / 6 A

Input voltage range : 17-32Vdc

Output voltage : 13.6Vdc +15% -20% at extremes of temperature, load, input tolerance, etc.

Intermittent output power : As stated, taken for a maximum of 2 minutes followed by 8 minutes rest.

Transient voltage protection : Meets ISO7637-2 International standard for 24Vdc commercial vehicles

Electrostatic voltage protection : Meets ISO10605, ISO14892, >8kV contact, 15kV discharge

Output noise : <50mV pk-pk (100mV on 24V units) at continuous load. Meets CISPR25 and VDE0879-3

Off load current (quiescent current) : <15mA

Power conversion efficiency : Typically: 90% for non-isolated units, 85% for isolated units

Isolation : >400Vrms between input, output and case, on isolated products only

Mean time between failures : >162 years (HRD4)

Operating temperature : -25ºC to +30ºC to meet this specification table +30ºC to +80ºC de rate linearly to 0A

Storage temperature : -25ºC to +100ºC

Operating humidity : 95% max., non-condensing

Casework : Anodised aluminium, glass filled polycarbonate, dust water and impact resistance to IP533

Connections : Four 6.3mm push-on flat blade connectors

Output indicator : Red LED adjacent to output terminals

Mounting method : Click 'n' fit mounting clip, fitted separately using three hole fixing

Safe area protection: Over current : Limited by current sensing circuit

Over heat : Limited by temperature sensing circuit

Transients : Protected by filters and rugged component selection

Catastrophic failure Protected by internal input and output fuses

Approvals : 2004/108/EC The general EMC directive 2006/96/EC The automotive directive  93/68/EEC The CE marking directive

Markings : CE and e marked
